Description

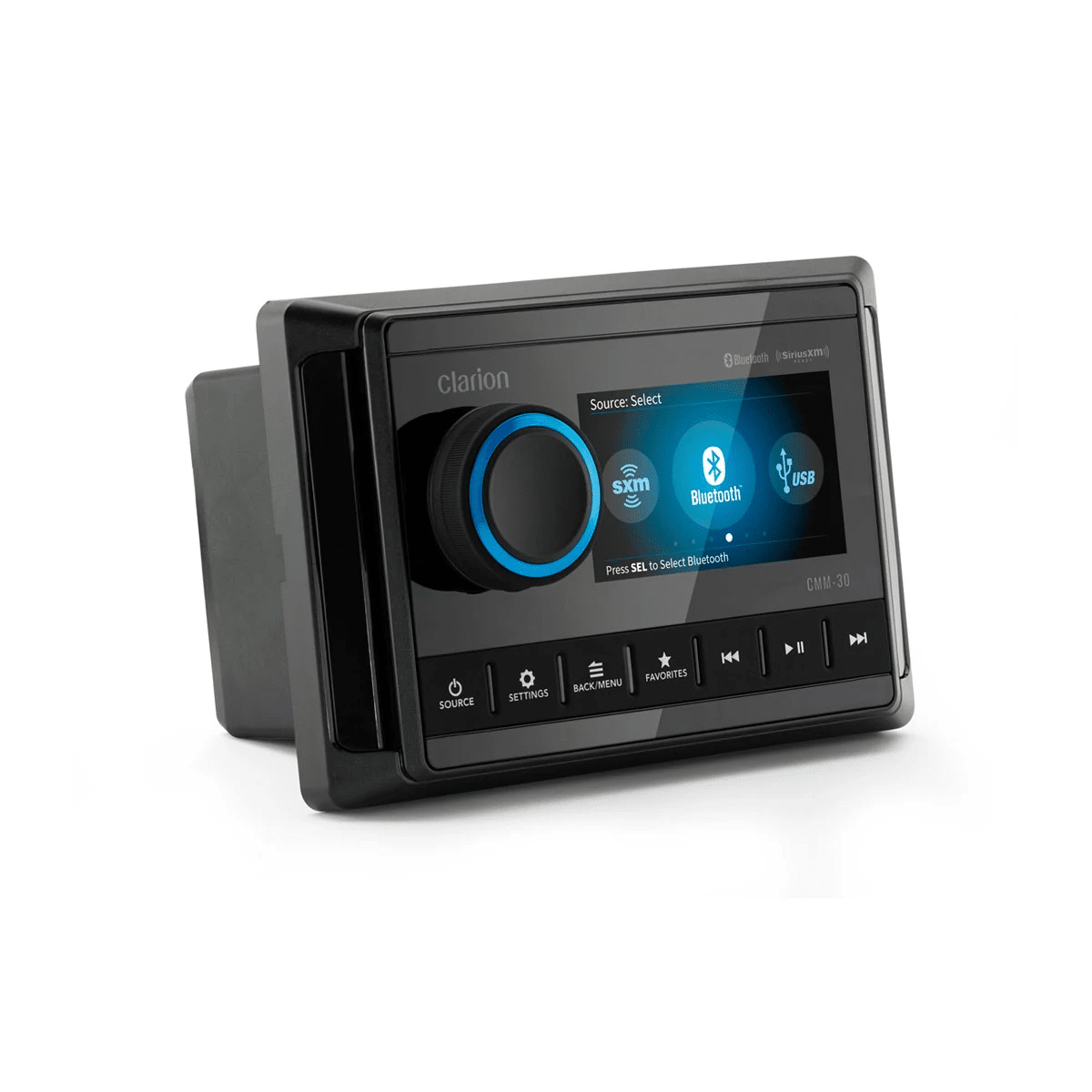

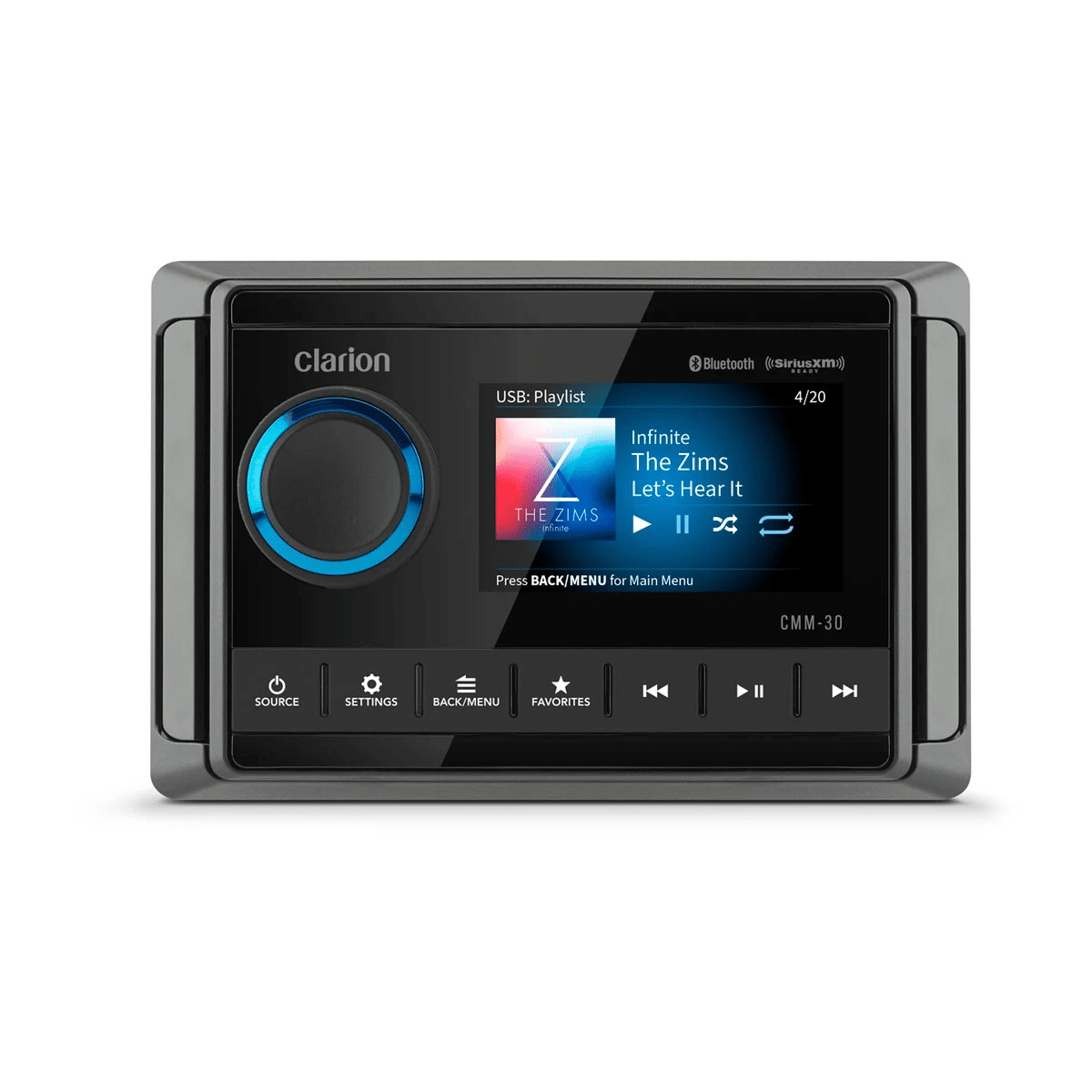

Clarion Marine CMM-30 Source Unit with LCD Display
The compact CMM-30 is an all-in-one source unit and multimedia hub. Add sound and style to your boat with the 3.5-inch color LCD controller.
This digital receiver has one stereo pair of auxiliary inputs as well as USB for charging and file playback. It’s also equipped with SiriusXM-Ready® radio (tuner and antenna sold separately; subscription required).
Adjust highs, mids and lows to get the perfect sound with a 5-band equalizer and built-in amp. You can even adjust sound in different parts of the boat with 4-zone control.
Full Color Display
Start streaming from your compatible smartphone or any device with BLUETOOTH technology, and get improved audio quality with Qualcomm aptX processing.
Tune In To Radio
Play local radio stations with a built-in AM/FM tuner, or get the latest forecast from the weather band
Rugged And Ready
The front panel of CMM-30 is IP66- rated, so you can move confidently out on the water.
In The Box
- One marine source unit with trim ring (attached)
- Power and speaker connections wire harness
- One mounting gasket (not included with Hideaway Receiver)
- One mounting template
- Four mounting screws
- Protective sun cover (not included with Hideaway Receiver)
|
|
|
|
General |
|
|
Physical dimensions (Height) |
CMM-30: 3.90″ (99 mm) |
|
Physical dimensions (Width) |
CMM-30: 5.94″ (151 mm) |
|
Physical dimensions (Depth) |
CMM-30: 2.95″ (75 mm) |
|
Control Surface Dust/Water Rating (when properly installed) |
IP66 |
|
Operating temperature range |
-4° F to +140° F (-20° C to +60° C) |
|
Current draw (max) |
15 A |
|
Warranty |
1 year |
|
Networking |
|
|
NMEA 2000 LEN |
1 (50 mA) |
|
Bluetooth® wireless range |
Up to 35 ft (11 meters) |
|
Wireless frequencies/protocols |
BLUETOOTH |
|
Audio |
|
|
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) |
25 W x 4 |
|
Electrical Features |
|
|
Power Input |
10-16 VDC |
|
Stereo Features |
|
|
Display size |
3″ (76 mm) |
|
Display type |
color TFT LCD backlit |
|
Display resolution |
CMM-30: 640 x 360 |
|
Optically bonded display |
yes |
|
Built-in amplifier |
Class D (2 Ω stereo-stable) |
|
Multi-Zone™ technology |
Yes |
|
Bluetooth® wireless technology |
Yes |
|
SiriusXM-ready |
Yes |
|
Multi-language interface |
English |
|
Software updates |
Yes |
|
Sources |
|
|
Supported sources |
Digital AM/FM with RDS/NOAA Weather Radio (US only)/BLUETOOTH/USB audio/iPhone/iPod/AUX/SiriusXM-Ready (USA & CA only, requires subscription and SiriusXM Connect vehicle tuner) |
|
Supported audio formats (USB) |
MP3, WMA, FLAC, WAV |
|
Connections |
|
|
Auxiliary inputs (RCA) |
1 (2V or 1V RMS Input Sensitivity) |
|
NMEA 2000 ports |
1 (Micro-C connector) |
|
USB 2.0 ports |
1 High-speed connection for use with iPhone®/iPod® (MFi Certified) or USB storage device (2.1 A charging output) |
|
SiriusXM ports |
1 |
|
AM/FM ports (Motorola antenna connector) |
1 |
|
Speaker connections |
4 (2 zones amplified) |
|
RCA pre-out (left, right and subwoofer – requires external amplification) |
4 zones (L+R) or Zone 4 as subwoofer |
|
Line out (requires external amplification) |
4 (L + R per zone) |
|
Subwoofer out (requires external amplification) |
Occupies Zone 4 |
;/tr>
|
Connections |
|
|
Auxiliary inputs (RCA) |
1 (2V or 1V RMS Input Sensitivity) |
|
NMEA 2000 ports |
1 (Micro-C connector) |
|
USB 2.0 ports |
1 High-speed connection for use with iPhone®/iPod® (MFi Certified) or USB storage device (2.1 A charging output) |
|
SiriusXM ports |
1 |
|
AM/FM ports (Motorola antenna connector) |
1 |
|
Speaker connections |
4 (2 zones amplified) |
|
RCA pre-out (left, right and subwoofer – requires external amplification) |
4 zones (L+R) or Zone 4 as subwoofer |
|
Line out (requires external amplification) |
4 (L + R per zone) |
|
Subwoofer out (requires external amplification) |
Occupies Zone 4 |
