Description

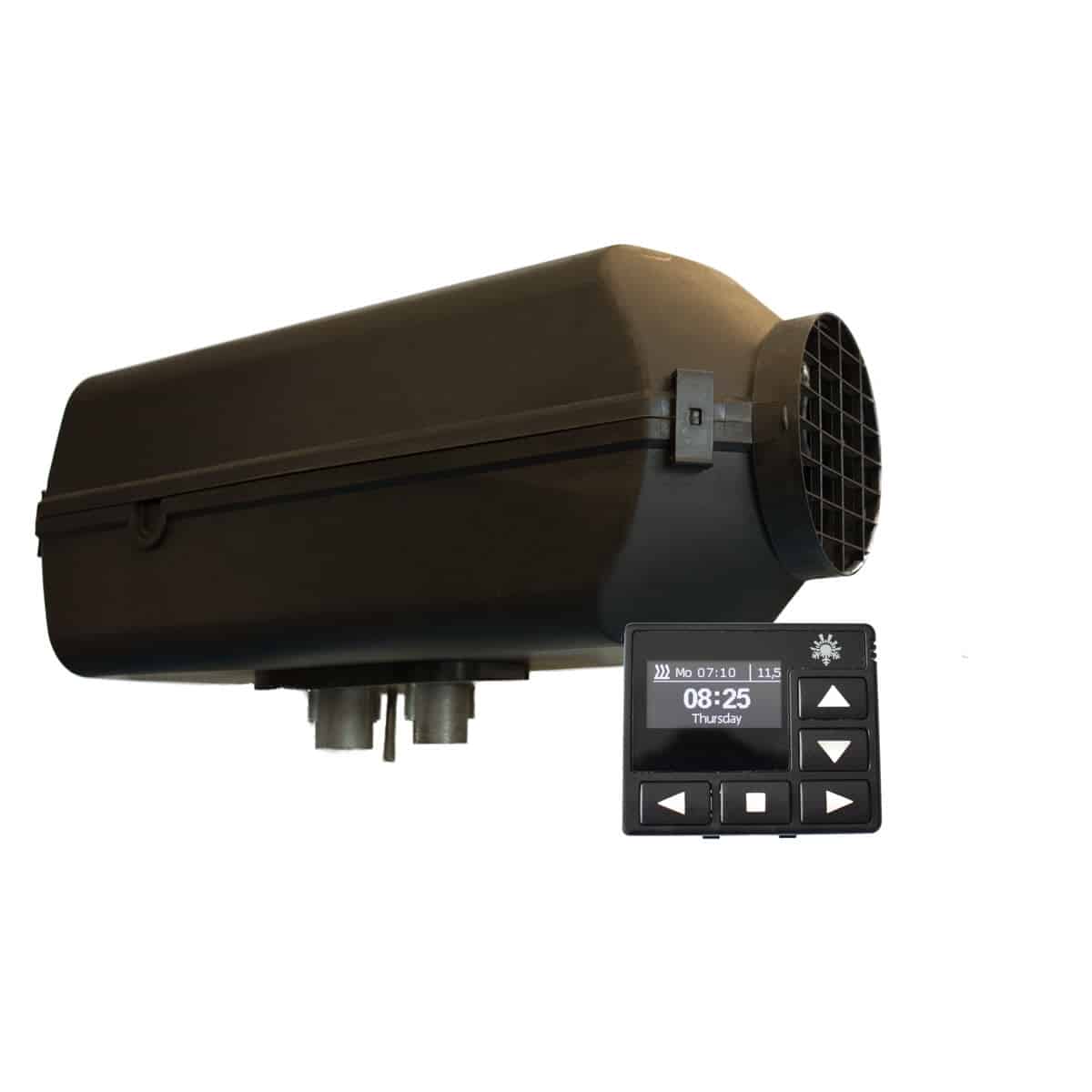

Diesel Air Heater Planar 44D-HA-PU27 comes with the digital programmable controller PU-27 , basic installation kit and Operation Manual. The heater is equipped with self-adjusting system for operation at high altitudes up to 2500 m / 8200 ft.
Available in 12 and 24 Volt Models
Refer to Operation Manual for installation and operation procedures.
*For heating up to 35 ft. power boats / 40 ft. sail boats, commercial trucks, buses, vans, motorhomes.
44D-HA-PU27 KIT CONTENTS
|
Product |
Contains |
|
Planar 44D-12 / -24 – Diesel Air Heater |
1 |
|
Inline Metering Fuel Pump |
1 |
|
Fuel Line, m |
5.5 |
|
Fuel Pick-UP Stand Pipe |
1 |
|
Stainless Steel Flexible Exhaust, ft. |
3 |
|
Exhaust Clamp |
1 |
|
Combustion Air Intake Hose, ft. |
2 |
|
Remote Wired Controller |
1 |
|
Fuel Pump El. Cable, 6 m. |
1 |
|
Power Cable with Fuses |
1 |
|
Set of Fasteners & Brackets |
1 |
TECHNICAL DETAILS:
|
12V |
24V |
|
|
Heat Output; kW (BTU): |
1.0-4.0 (3,200-13,600) |
1.0-4.0 (3,200-13,600) |
|
Fuel Consumption; l/h (gal/h): |
0.12-0.49 (0.03-0.13) |
0.12-0.49 (0.03-0.13) |
|
Nominal Supply Voltage; V: |
12 |
24 |
|
Power Consumption; W (A): |
10-62.4 (0.8-5.2) |
10-57.6 (0.8-4.8) |
|
Airflow Rate; m3/h: |
70-120 |
70-120 |
|
Weight; kg: |
8.0 |
8.0 |
|
 L x D x H; mm: |
398 x 157 x 160 |
398 x 157 x 160 |
|
 Operating Modes: |
 Temperature/Power |
Temperature/Power |
|
Weight |
11.5 kg |
|
Dimensions |
49 × 36.5 × 31.5 cm |
|
Voltage |
12V, 24V |
