Description
PLANAR Diesel Air Heater 2D-HA-PU27 comes with the digital controller PU-27, basic installation kit and Operational Manual. The heater is equipped with self-adjusting system for operations at high altitudes up to 2500 m / 8200 ft.
There are two modifications: 12 V and 24 V.
Refer to Operation Manual for installation and operation procedures.
For heating up to 25 ft. boats, commercial trucks, campers, vans.
KIT CONTENTS:
|
Product |
Contains |
|
Planar 2D – Diesel Air Heater |
1 |
|

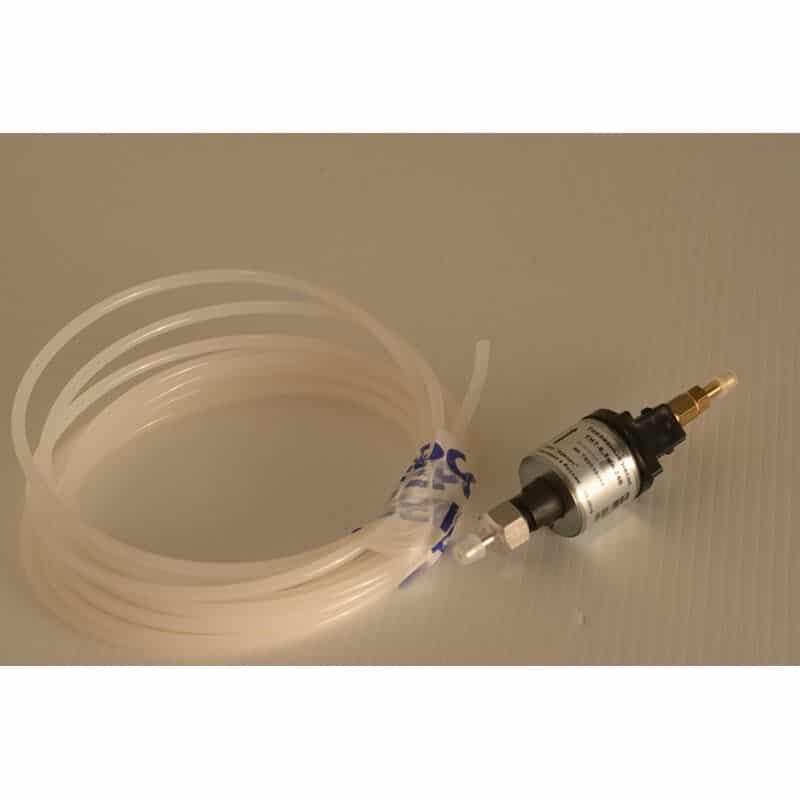

Inline Metering Fuel Pump |
1 |
|
Fuel Line, M |
5.5 |
|
Fuel Pick-UP Stand Pipe |
1 |
|
Stainless Steel Flexible Exhaust, FT. |
3 |
|
Exhaust Clamp |
1 |
|
Combustion Air Intake Hose, FT. |
2 |
|
Remote Wired Controller |
1 |
|
Fuel Pump El. Cable, 6 M. |
1 |
|
Power Cable with Fuses |
1 |
|
Set of Fasteners & Brackets |
1 |
TECHNICAL DETAILS:
|
Heat Output; kW (BTU): |
0.8 (2.700-6,850) |
|
Fuel Consumption; l/h (gal/h): |
0.10-0.24 (0.03-0.06) |
|
Nominal Supply Voltage; V: |
12 or 24 |
|
Power Consumption; W (A): |
10-29 (0.8-2.42) |
|
Airflow Rate; m3/h: |
34-75 |
|
Weight; kg: |
7.0 |
|
L x D x H; mm: |
324 x 118 x 119 |
|
Operating Modes: |
Temperature/Power |
