General Components Bison 2000A 2kW Diesel Air Heater Kit 12 Volt

M.A.P. $1,092.00

Please add to cart to see your price

General Components Bison 2000A 2kW Diesel Air Heater Kit 12 Volt

Our Price: $779.95

SKU: GC6321 Category:

Description

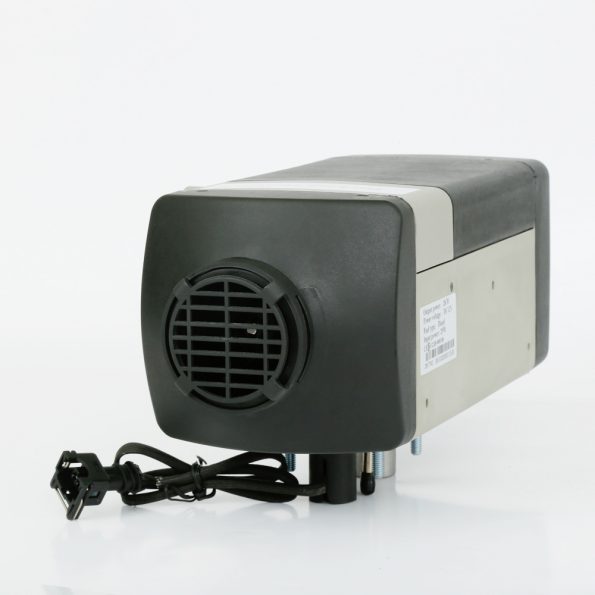

Bison series 2000A is a 2kW/6800BTU compact forced air furnace. Powerful, quiet and very efficient, it’s designed for air heating applications in cabs/bunks of commercial vehicles, boats and RV’s. This no-idle air heater comes in 12V DC and 24VDC versions, as well as diesel/kerosene or gasoline versions. This kit has all necessary hardware for a basic installation of the unit: fuel line with couplings and clamps, air ducting and one outlet, mounting plate, screws, straps, etc. The wire harness is fully assembled, with high quality connectors ready to be plugged in.



2kW/6800BTU no-idle forced air heater kit with programmable digital timer and all required hardware for basic installation. Includes 1m air duct with one register, fuel pump with 7m fuel line, fuel pickup tube and a tee, wiring harness straps, screws, clamps and straps, exhaust, and intake tubing.



Specification Value
Heat Output: BTU/hr (kW/hr) 3071 (0.9) – 6825 (2)
Diesel Fuel Consumption: U.S Gal./hr (L/hr) 0.03 (0.12) – 0.06 (0.24)
Electric Power Consumption: Amps (Watts) @12VDC 1.2 (14) – 2.4 (29)
Electric Power Consumption: Amps (Watts) @24VDC 0.6 (14) – 1.2 (29)
Voltage Operating Range: Volts DC (for 12V models) 10.5 – 16 with Low and High Voltage Protection
Voltage Operating Range: Volts DC (for 24V models) 21 – 32 with Low and High Voltage Protection
Operating Modes Set point (closed loop), Variable heat, Fan only
Dimensions: LxWxH, Inches (mm) 12.72 x 4.72 x 4.76 (323 x 120 x 121)
Weight: lbs (kg) 5.73 (2.6)
