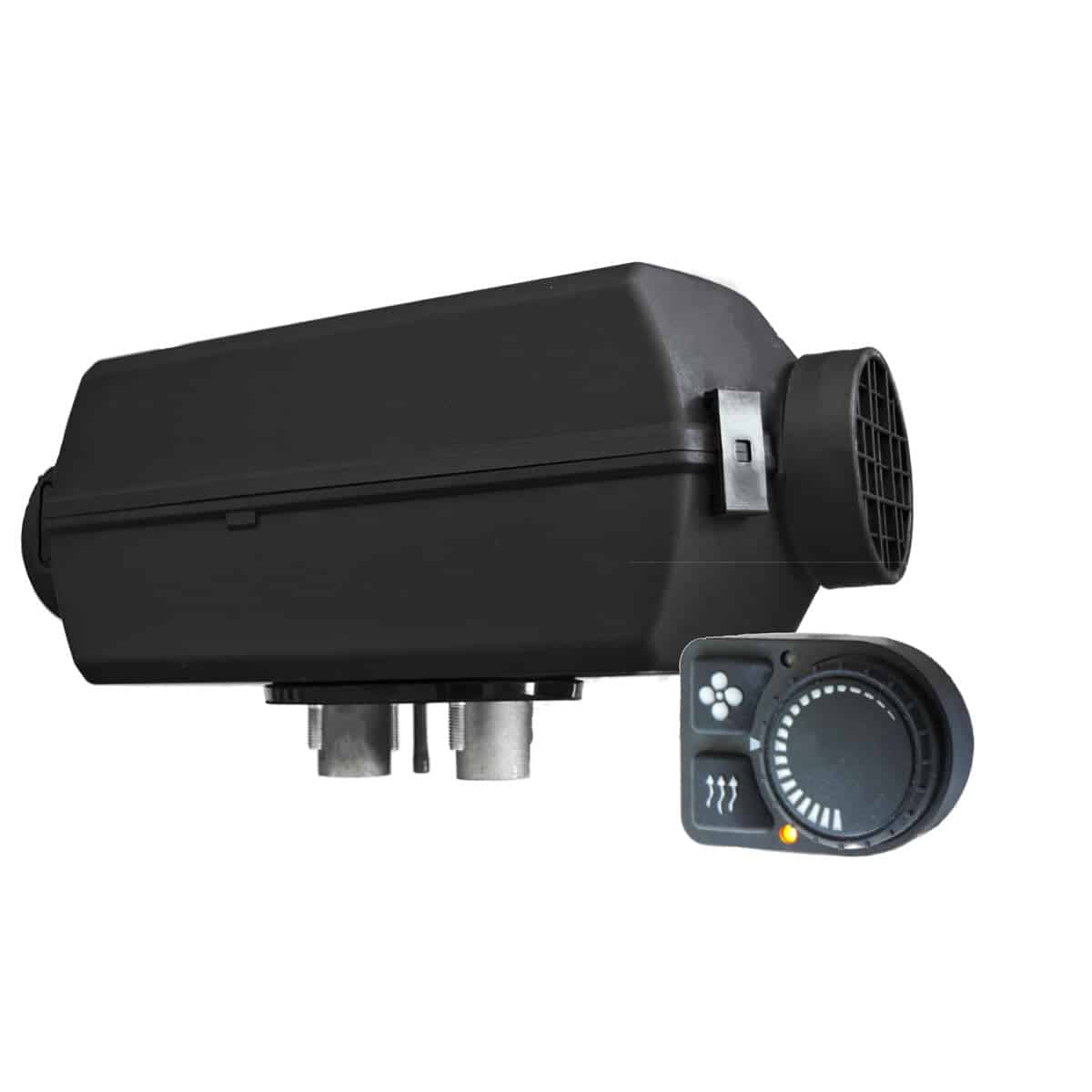

Planar 2D-HA-PU5 Diesel Air Heater

$885.40

SKU: 2D-HA-PU5 Category: Tag:

Description



Planar Diesel Air Heater 2D-HA-PU5 comes with the dial controller PU-5, basic installation kit and Operational Manual. The heater is equipped with self-adjusting system for operations at high altitudes up to 2500 m / 8200 ft.

Available in 12 V and 24 V. Models
Refer to Operation Manual for installation and operation procedures.
For heating up to 25 ft. boats, commercial trucks, campers, vans.

DIESEL AIR HEATER PLANAR 2D KIT CONTENTS

Product Contains
Planar 2D – Diesel Air Heater 1

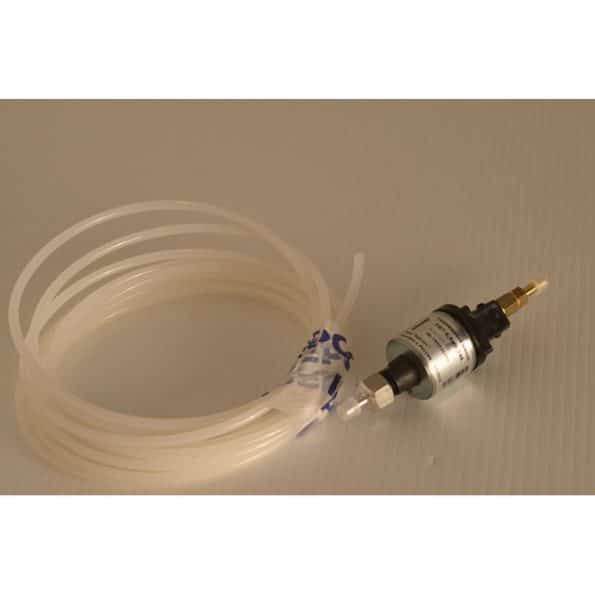

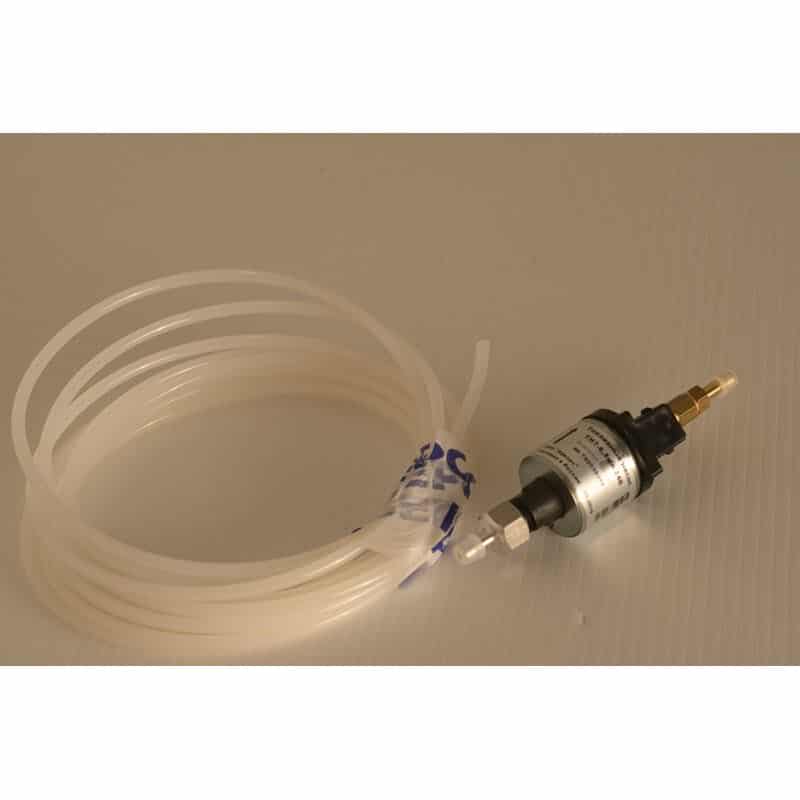

Inline Metering Fuel Pump 1
Fuel Line, M 5.5

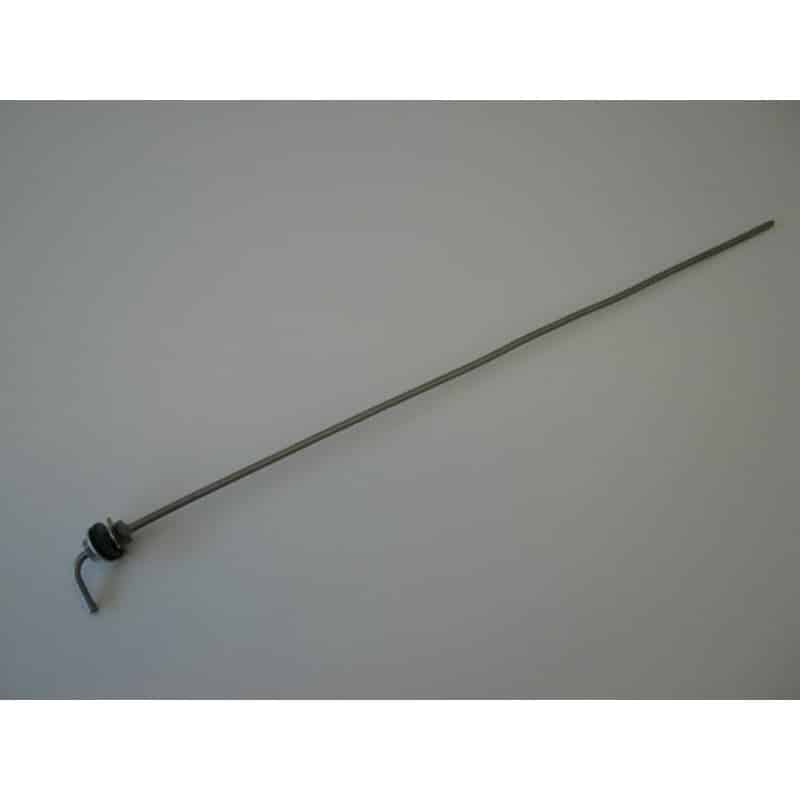

Fuel Pick-UP Stand Pipe 1
Stainless Steel Flexible Exhaust, FT. 3
Exhaust Clamp 1
Combustion Air Intake Hose, FT. 2
Remote Wired Controller 1
Fuel Pump El. Cable, 6 M. 1
Power Cable with Fuses 1
Set of Fasteners & Brackets 1

TECHNICAL DETAILS

Heat Output; kW (BTU): 0.8 (2.700-6,850)
Fuel Consumption; l/h (gal/h): 0.10-0.24 (0.03-0.06)
Nominal Supply Voltage; V: 12 or 24
Power Consumption; W (A): 10-29 (0.8-2.42)
Airflow Rate; m3/h: 34-75
Weight; kg: 7.0
 L x D x H; mm:  324 x 118 x 119
 Operating Modes:  Manual





Weight 6.5 kg
Dimensions 41 × 36 × 17 cm
Voltage 12V, 24V



Additional information

Voltage

12 Volt, 24 Volt
