Description
UNLEASH GREAT SOUND BEYOND YOUR BOAT

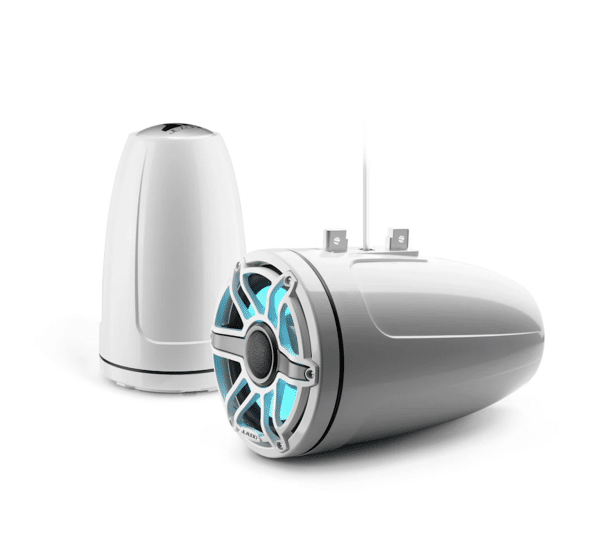

Whether you’re on the boat or riding the wake behind it, the JL Audio M6 is the ultimate tower speaker system for delivering powerful, crystal-clear sound that you can hear and enjoy well beyond the boat.
POWERFUL MIDBASS OUTPUT IN OPEN-AIR APPLICATIONS
7.7- OR 8.8-INCH COAXIAL SPEAKERS WITH SILK DOME TWEETERS
WIDE RANGE OF TUBULAR OR SURFACE-MOUNTING OPTIONS
AVAILABLE WITH PATENTED TRANSFLECTIVE™ RGB LED LIGHTING
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
3-YEAR WARRANTY
WHAT YOU’LL LOVE
TOWERING PERFORMANCE
Robust M6 speakers are ideal for wakeboard towers or other tubular structures — or they can be flat mounted to decks and other surfaces to deliver superb sound quality with strong projected output.
DMA-OPTIMIZED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
MATCHING SILK DOME TWEETERS
Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.
ADVANCED FILTER NETWORKS
Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.
POWERFULLY EFFICIENT
M6 series marine speakers used in this system benefit from operation with quality amplification for superior audio clarity at all volume levels.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
| Warranty |
3 years |
|---|---|
| Sizes |
7.7″/8.8″ |
| Color |
White Classic, White Sport or Titanium Sport |
| Physical dimensions (Diameter) |
7.7″: 7.70″ (196 mm) 8.8″: 8.80″ (224 mm) |
| Physical dimensions (Depth) |
7.7″ (Classic): 12.62″ (321 mm) 7.7″ (Sport): 12.67″ (322 mm) 8.8″ (Classic): 14.73″ (374 mm) 8.8″ (Sport): 14.80″ (376 mm) |
| Speaker type |
Enclosed Coaxial |
| Continuous power handling (RMS) |
7.7″: 100 W 8.8″: 125 W |
| Sensitivity (SPL @ 1 W/1 m) |
7.7″: 91.0 dB 8.8″: 90.5 dB |
| Frequency response (+/- 3 dB) |
7.7″: 45 Hz-25 kHz 8.8″: 38 Hz-20 kHz |
| Nominal impedance |
4 Ω |
| Recommended amplifier power (RMS) |
7.7″: 40-200 W/Channel 8.8″: 50-250 W/Channel |
| LED lighting |
yes – Transflective™ (selected Sport models only) |
| LED supply voltage |
10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) |
7.7″: 324 mA 8.8″: 486 mA |
| Cone material |
Injection-molded, mica-filled polypropylene |
| Tweeter type |
Silk Dome |
| Tweeter size |
7.7″: 1″ (25 mm) 8.8″: 1.25″ (32 mm) |
Networking & Connections |
|
| Speaker connections |
Flying Lead with 16 AWG wire (10 ft) |
|---|---|
| LED connection |
Flying Lead with 4-conductor 20 AWG wire (selected Sport models only, 10 ft) |
