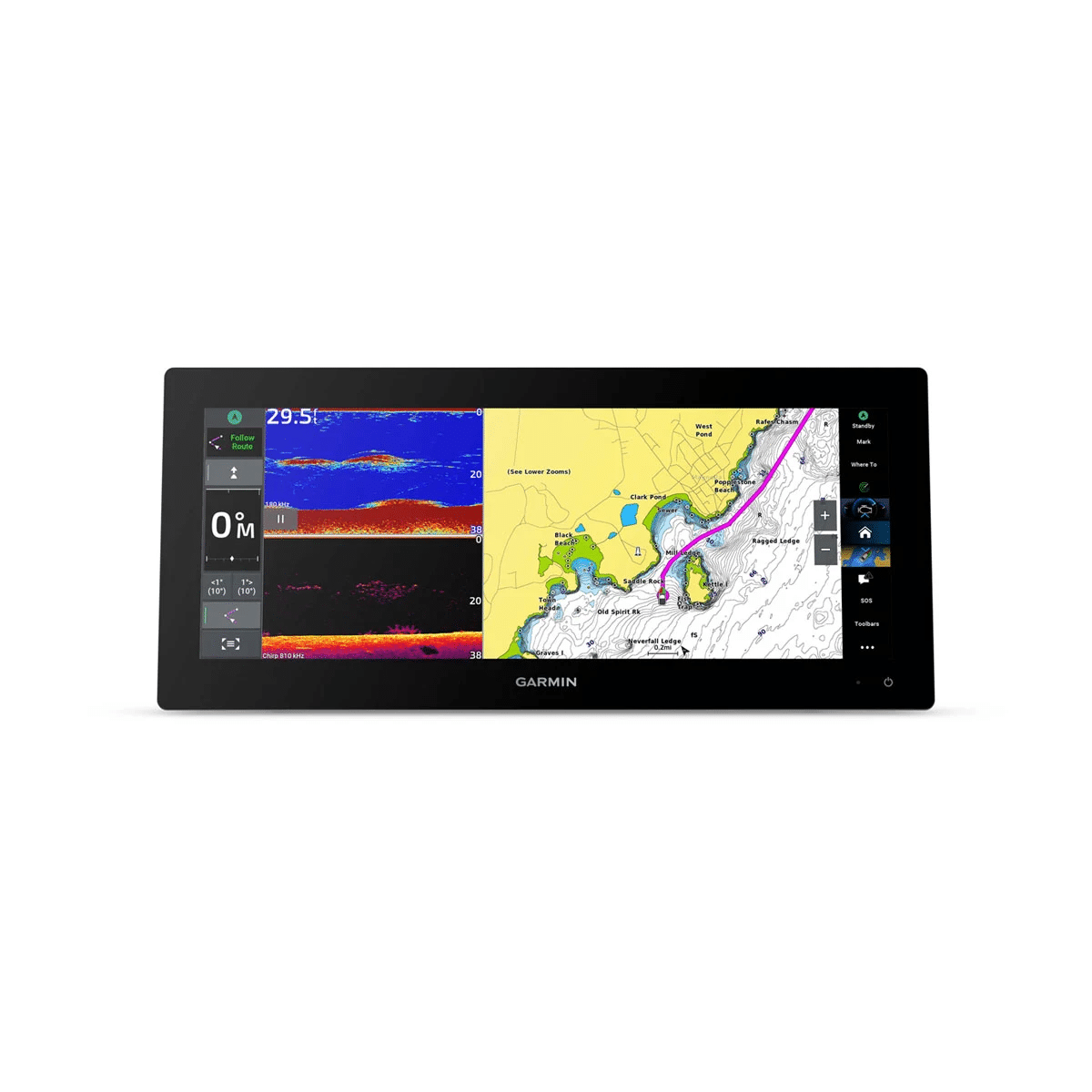

Garmin GPSMAP 1543xsv Ultra-Wide 15 Chartplotter with SideVü, ClearVü and Traditional CHIRP Sonar with Mapping. This Garmin GPSMAP 1543xsv Ultra-Wide 15 Chartplotter is designed to enhance your navigation experience.
Offering a sleek aesthetic in an ultrawide edge-to-edge glass format, this advanced 15-inch chartplotter clearly expands your perspective at the helm. It is 74% wider and boasts more pixels than a standard 9-inch chartplotter, providing enhanced viewing clarity.
- ULTRAWIDE IN-PLANE SWITCHING (IPS) 15-INCH DISPLAY FITS A VARIETY OF HELM LAYOUTS, INCLUDING “FLOATING DISPLAY” CONFIGURATIONS
- CONNECT TO COMPATIBLE THIRD-PARTY DEVICES WITH DIGITAL SWITCHING AND ONEHELM INTEGRATIONS
- EASILY BUILD YOUR MARINE SYSTEM BY USING OUR ADVANCED NETWORK CONNECTIVITY
- SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES
- MANAGE YOUR MARINE EXPERIENCE FROM NEARLY ANYWHERE
- SEE BELOW YOUR BOAT WITH BUILT-IN SONAR CAPABILITIES
SLEEK MODERN DESIGN
Offering a stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 1543xsv chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of Garmin’s existing GPSMAP x3 series chartplotters.
For those seeking advanced features, the Garmin GPSMAP 1543xsv Ultra-Wide 15 Chartplotter offers unparalleled performance and functionality in marine navigation.
BRIGHT AND CLEAR OPTICS
This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses
SPLIT TO FIT
Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.
TWO MOUNTING OPTIONS
A bail-mount option with inset knobs and a bracket supports unique “floating display” installations, while a rear-mount option is provided for secure flush- and flat-mount helm solutions.
TRADITIONAL AND SCANNING SONAR SUPPORT

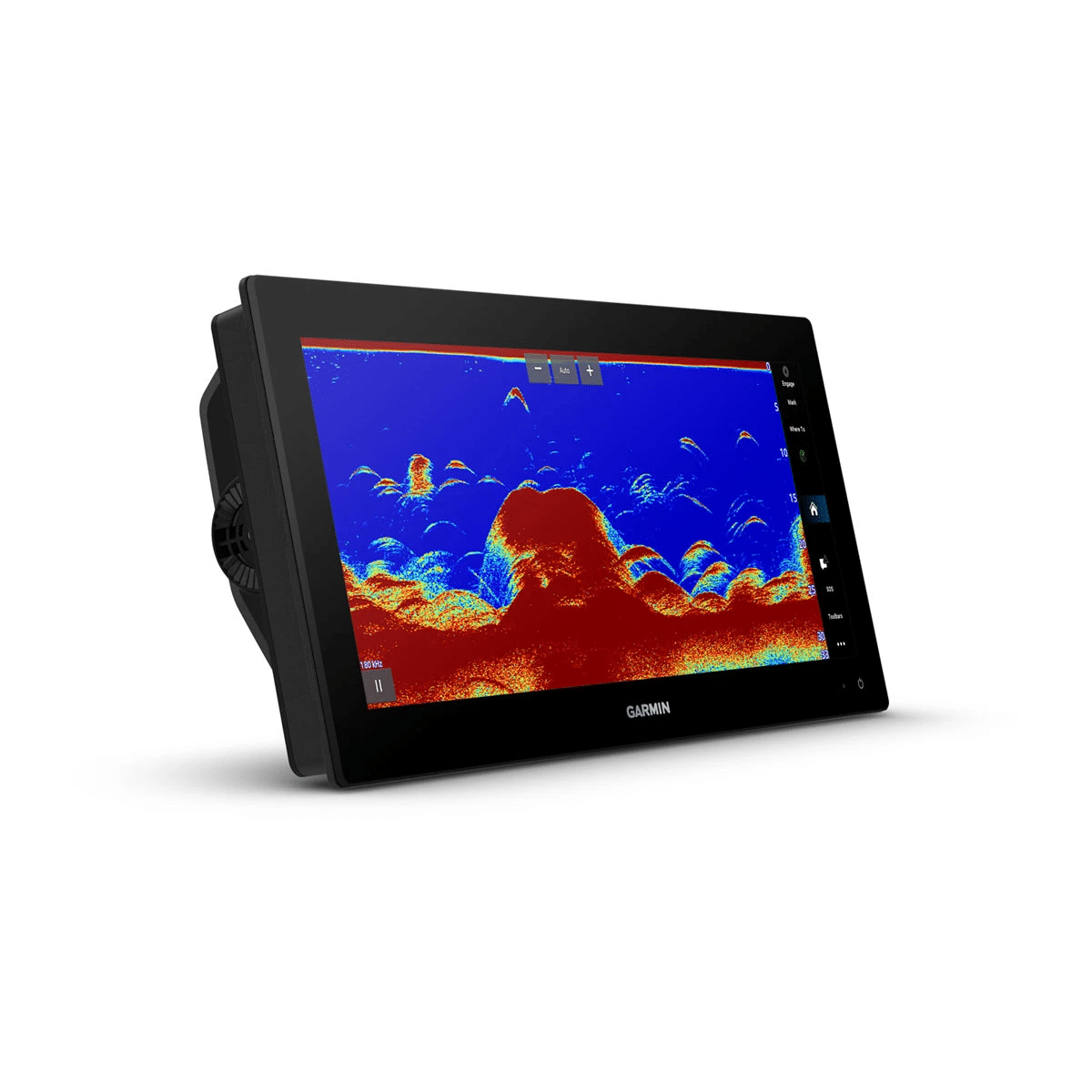

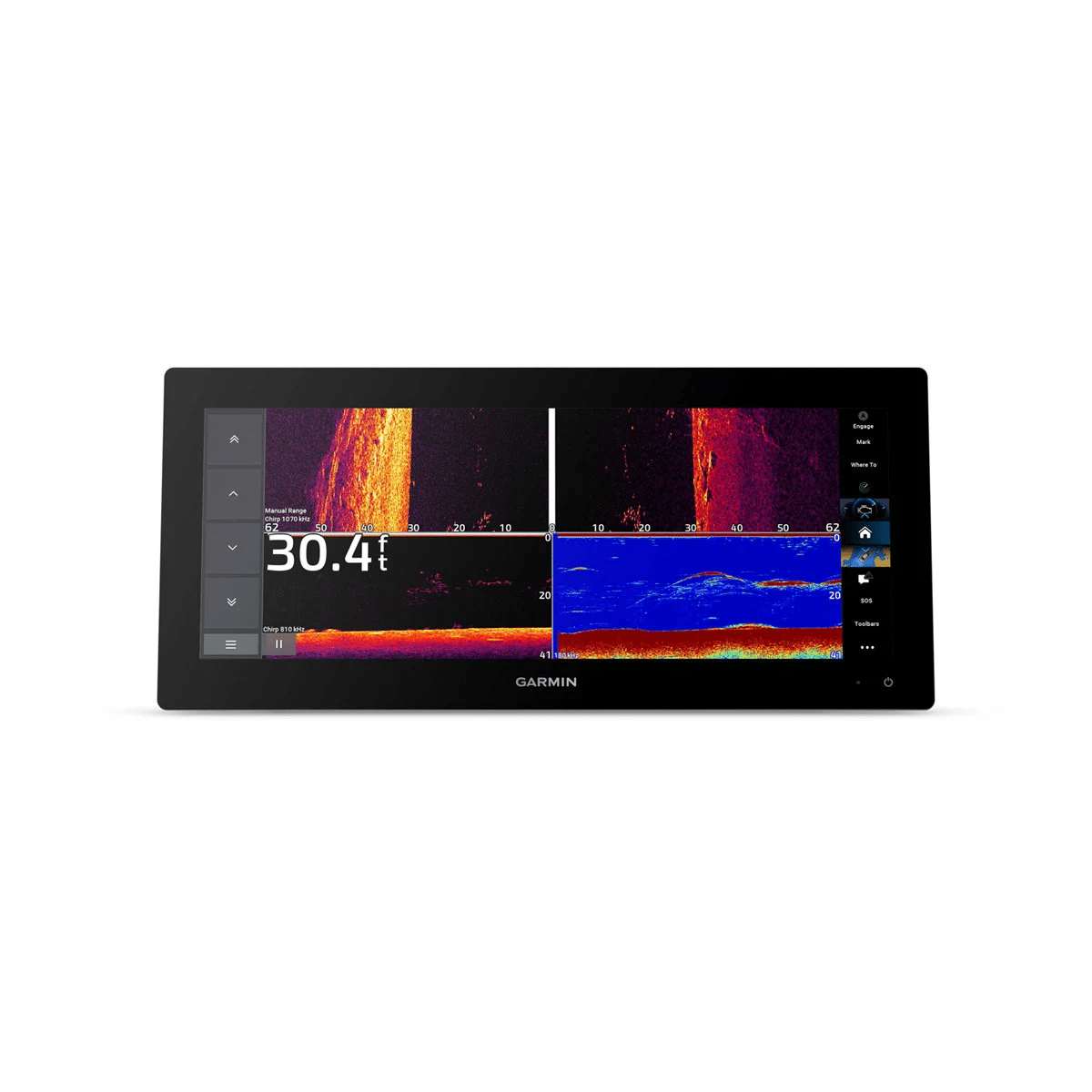

Get built-in support for 1 kW CHIRP traditional sonar for superior target separation. Plus, Ultra High-Definition ClearVü and SideVü scanning sonars feature vivid, high-contrast color palettes to help distinguish fish from structure (transducer required; sold separately).
LIVE SONAR SUPPORT
Pair with Panoptix or LiveScope easy-to-interpret live sonar (transducer required; sold separately) to see all around your boat in real time.
PRELOADED MAPPING

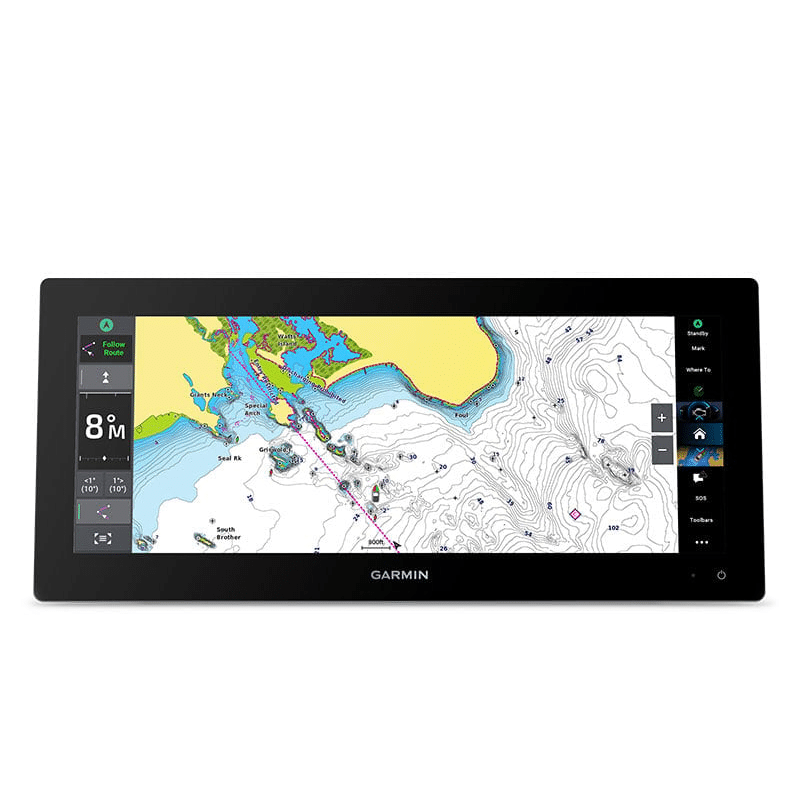

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+ technology and a 1-year subscription for downloadable daily updates and more on select models.
OPTIONAL CHARTS AND MAPS
Bring premium chart features to your chartplotter with an optional upgrade to a Garmin Navionics Vision+ subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more
GARMIN SAILASSIST SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.
SAILING POLARS
Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among the
NMEA 2000 AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, the Fusion audio system, media, VHF, AIS and more from one screen.
ACTIVECAPTAIN APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications (when paired with your smartphone), software updates, Helm app, Garmin Quickdraw Community data and more1.
INTEGRATED ANT TECHNOLOGY
Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls
ENGINE CONNECTIVITY
You can connect your chartplotter to different engines, including select Yamaha and Mercury® engines.
ONEHELM FEATURE
This feature brings together all of the operations and capabilities of EmpirBus digital switching and other third-party devices on one screen.
SEND INREACH DEVICE MESSAGES
Pair your inReach satellite communicator3 to your chartplotter, and type custom messages by using your MFD’s on-screen keyboard. Access your contact list, or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.
POWER-POLE SHALLOW WATER ANCHOR
By networking the GPSMAP 15×3 chartplotter with your Force trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features4 from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and end-of-route anchoring. Spend more time fishing, less time positioning.
TROLLING MOTOR INTEGRATION
Get support and integration for your Force series trolling motor (sold separately) to gain more control while you fish.
In The Box
- GPSMAP 1543xsv ultrawide chartplotter
- microSD card preinstalled
- Power cable
- Thin flush mount kit with gasket
- Protective cover
- 8-pin transducer to 12-pin sounder adapter cable
- 2 m backbone/drop cable and T-connector for NMEA 2000®Network
- Documentation
| General | ||
| Dimension | 15.3″ x 7.02″ x 3.3″ (388.9 x 178.5 x 82.9 mm) | |
| Weight | 7.2 lbs (3.26kg) | |
| Water rating | IPX7 | |
| Touchscreen | yes | |
| Display Type | Ultrawide display, IPS | |
| Display Size | 13.6″ x 5.1″; 14.5″ diagonal (34.6 x 12.9 cm; 36.8 cm diagonal) | |
| Display resolution | 1920 x 720 pixels | |
| Mounting Options | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) | |
| Polarized lens viewability | yes | |
| Maps & Memory | ||
| Accepts Data Cards | 2 microSD™ cards (back of device) | |
| Compatible with Garmin SD card reader | yes (USB card reader) | |
| Waypoints | 5000 | |
| Track points | 50,000 | |
| Tracks | 50 saved tracks | |
| Navigation Routes | 100 | |
| Sensors | ||
| GPS | yes | |
| GLONASS | yes | |
| Galileo | yes | |
| Has built-in receiver | yes | |
| Receiver | 10 Hz | |
| NMEA 2000 Compatible | yes | |
| NMEA 0183 Compatible | yes | |
| Supports WAAS | yes | |
| Supports multi-band, multi-constellation GPS | yes (with external GPS antenna) | |
| Built-in Maps | ||
| Built-in Auto Guidance+ | yes | |
| Garmin Navionics+ Inland & Coastal | yes | |
| Tide tables | yes | |
| Optional Map Support | ||
| BlueChart g3 | yes | |
| BlueChart g3 Vision | yes | |
| LakeVü g3 | yes | |
| LakeVü g3 Ultra | yes | |
| Garmin Navionics+™ | yes | |
| Garmin Navionics Vision+™ | yes | |
| TOPO 100K | yes | |
| Standard Mapping | yes | |
| Garmin Quickdraw Contours | yes | |
| Raster chart support | yes | |
| Chartplotter Features | ||
| Smart Mode Compatible | yes | |
| AIS | yes | |
| DSC | yes | |
| Supports Fusion-Link™ compatible radios | yes | |
| GSD Black Box Sonar Support | yes | |
| GCV Black Box Sonar Support | yes | |
| ActiveCaptain® compatible | yes | |
| Supports voice commands | yes (with external accessory) | |
| GRID (Garmin Remote Input Device) compatible | yes | |
| Wireless Remote Compatible | yes | |
| Sailing Features | yes | |
| Spoken audio alerts | yes | |
| OneHelm support | yes | |
| Electrical Features | ||
| Power Input | 10 to 32 Vdc | |
| Typical current draw at 12 Vdc | 2.44 A | |
| Maximum current draw at 12 Vdc | 4.21 A | |
| Maximum power usage at 10 Vdc | 56.93 W | |
| Sonar Features | ||
| Displays sonar | yes | |
| Power output | 1 kW | |
| Traditional sonar (dual frequency/beam) | yes | |
| ClearVü | yes | |
| SideVü | Built-in 260/455/800/1000/1200 kHz | |
| Panoptix sonar | yes | |
| LiveScope | yes | |
| Connections | ||

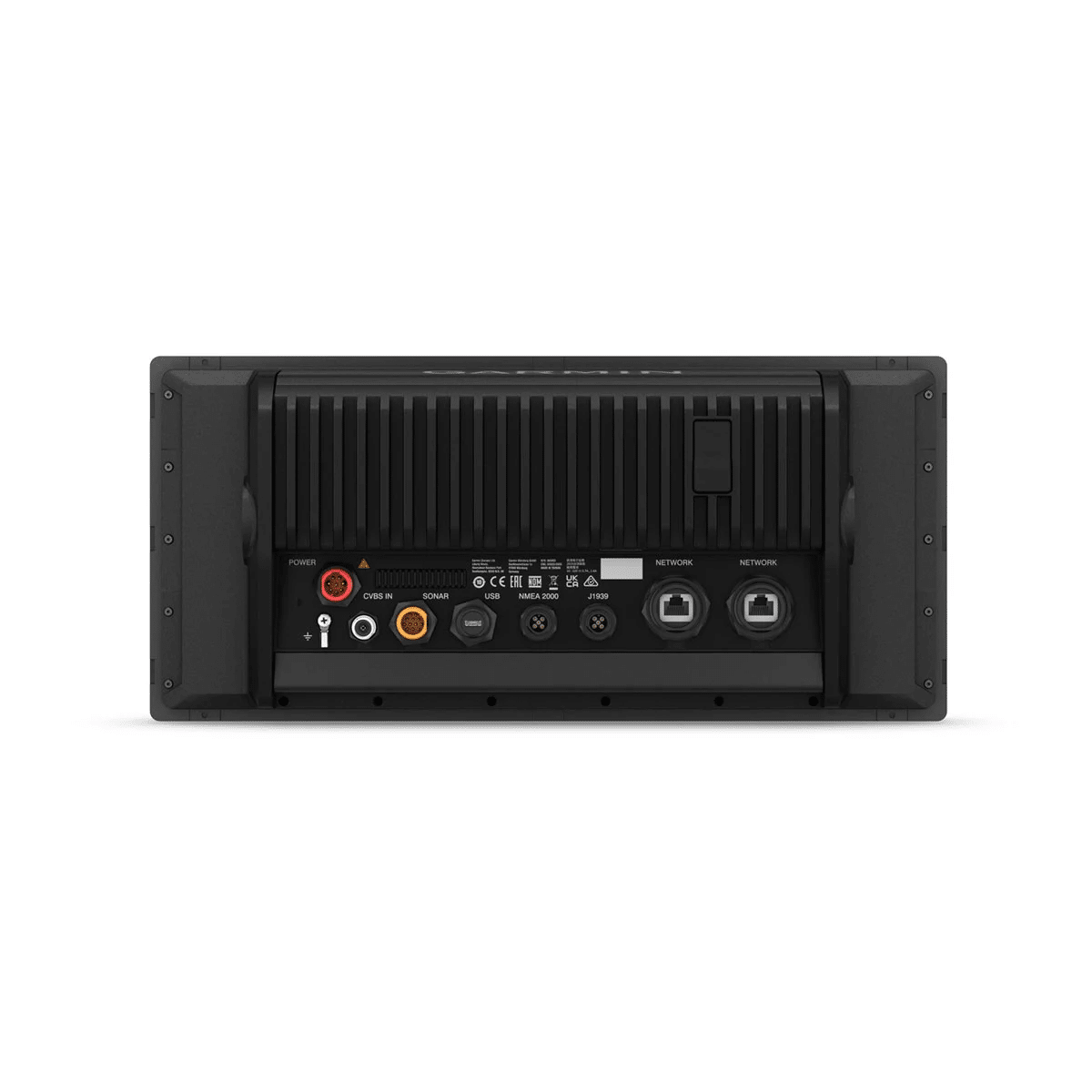

| NMEA 2000 ports | 1 | |
| NMEA 0183 Input (Rx) Ports | 1 | |
| NMEA 0183 output (Tx) ports | 1 | |
| Video input ports | 1 (BNC composite) | |
| J1939 ports | 1 | |
| Garmin Marine Network Ports | 2 | |
| 12-pin transducer ports | 1 | |
| USB ports | yes | |
| Bluetooth® pairing | yes (BLE) | |
| ANT® (Connectivity) | yes | |
| Garmin Wi-Fi network (local connection) | yes |
