Description

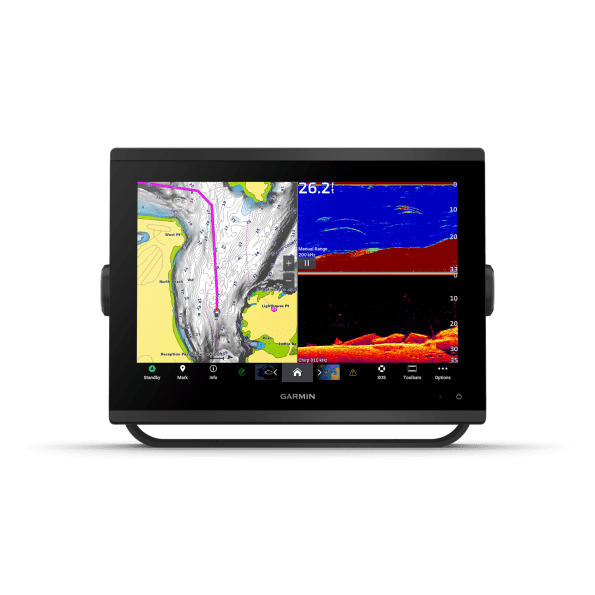

Garmin GPSMAP 1243xsv 12″ Touchscreen Chartplotter with built in sonar and loaded with Navionics+ mapping of Canada, USA and Alaska
In the Box
- GPSMAP 1243xsv chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Physical & Performance
|
Display Size |
10.3″ x 6.4″; 12.1″ diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
|
Power Input |
10 to 32 Vdc |
|
Display resolution |
1280 x 800 pixels |
|
GPS |
Yes |
|
Dimension |
12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm) |
|
Receiver |
10 Hz |
|
Waterproof |
IPX7 |
|
Weight |
6.6 lbs (3.0 kg) |
|
Mounting Options |
Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
|
Display Type |
WXGA |
Maps & Navigation
|
Garmin Navionics Vision+™ |
Yes |
|
Accepts Data Cards |
2 microSD cards (back of unit) |
|
Garmin Navionics+ Inland & Coastal |
Yes |
|
Navigation Routes |
100 |
|
Garmin Navionics+™ |
Yes |
Features
|
Waypoints |
5000 |
|
Sailing Features |
Yes |
|
NMEA 0183 Compatible |
Yes |
|
Has built-in receiver |
Yes |
|
USB ports |
Yes |
|
TOPO 100K |
Yes |
|
SideVü |
built-in 260/455/800/1000/1200 kHz |
|
DSC |
Yes |
|
Touchscreen |
Yes |
|
LakeVü g3 Ultra |
No |
|
NMEA 2000 Compatible |
Yes |
|
ActiveCaptain® compatible |
yes |
|
Typical current draw at 12 Vdc |
1.68 A |
|
NMEA 2000® ports |
1 |
|
Tide tables |
Yes |
|
GLONASS |
Yes |
|
Track points |
50,000 |
|
Panoptix™ sonar |
Yes |
|
Garmin Marine Network Ports |
2 |
|
LakeVü g3 |
No |
|
Supports WAAS |
Yes |
|
GSD Black Box Sonar Support |
Yes |
|
Maximum current draw at 12 Vdc |
3.56 A |
|
Smart Mode Compatible |
Yes |
|
Built-in Auto Guidance |
No |
|
Maximum power usage at 10 Vdc |
43.0W |
|
BlueChart g3 |
No |
|
Standard Mapping |
Yes |
|
LakeVu (inland) |
No |
|
Built-in Auto Guidance+ |
Yes |
|
Displays sonar |
Yes |
|
ANT+ (Connectivity) |
Yes |
|
GCV Black Box Sonar Support |
Yes |
|
BNC external GPS antenna port |
No |
|
Connections NMEA0183 Input Ports |
1 |
|
Spoken audio alerts |
Yes |
|
BlueChart g3 Vision |
No |
|
Garmin Wi-Fi network (local connection) |
Yes |
|
J1939 ports |
1 |
|
Input |
Touchscreen |
|
Garmin Quickdraw Contours |
Yes |
|
BLUETOOTH® pairing |
Yes |
|
AIS |
Yes |
|
Video output ports |
1 HDMI |
|
Raster chart support |
Yes |
|
NMEA 0183 input (Tx) ports |
1 |
|
OneHelm support |
Yes |
|
ClearVü |
built-in 260/455/800/1000/1200 kHz |
|
Tracks |
50 saved tracks |
|
Wireless Remote Compatible |
Yes |
|
Supports Fusion-Link™ compatible radios |
Yes |
|
Galileo |
Yes |
|
LiveScope |
Yes |
|
Power output |
1 kW |
|
12-pin transducer ports |
1 |
|
BlueChart (coastal) |
No |
|
Traditional sonar (dual frequency/beam) |
built-in (single channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP) |
|
GRID (Garmin Remote Input Device) compatible |
Yes |
|
Video input ports |
1 (BNC composite) |
