Description

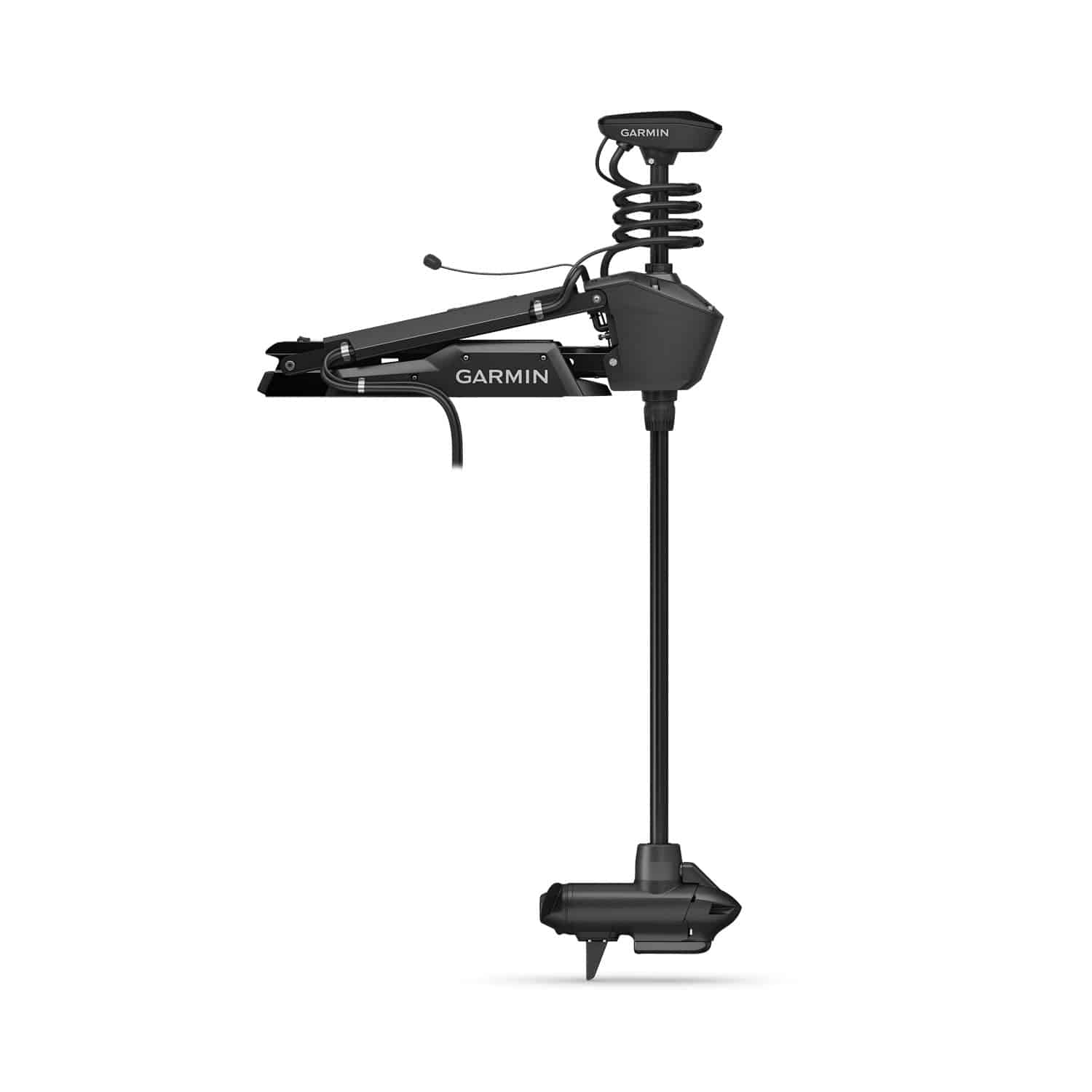

NLA – See Garmin Force Pro Trolling Motor
HIGH-POWERED
Force trolling motor has the power to move you from spot to spot more quickly and stand up better to winds and currents — and it’s still whisper quiet.
REMARKABLE EFFICIENCY
The high-efficiency brushless motor operates at either 36 V or 24 V. When running at 24 V, it delivers comparable thrust to our competitors’ 36-V motors.
QUIET ABOVE AND BELOW THE WATER
The ultraquiet motor doesn’t scare fish and is nearly undetectable to sonar, so it won’t fuzz up your sonar screens with static.
WIRELESS FOOT PEDAL
Get instant responsiveness in a convenient pedal that feels and steers just like a cable-steered pedal. It operates wirelessly using AA batteries, but it can still be hardwire installed.
WATER-RESISTANT, FLOATING REMOTE
The included handheld remote control with a sunlight-readable display controls the trolling motor and features point-and-go gesture steering. User-programmable keys can be used to control your chartplotter.
ROBUST AND EASY TO USE
The Force trolling motor is rugged and durable, easy to deploy, and easy to retract and stow with dual gas springs. It’s backed with a 3-year warranty and a limited lifetime warranty on the shaft.
WIRELESS CHARTPLOTTER INTEGRATION
Wirelessly connect Force to your Garmin chartplotter, so you can create routes to your favorite waypoints and follow tracks while you fish.
INTEGRATED SONAR
Force comes with a built-in transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. See the specs tab for more details on additional sonar support.
BUILT-IN AUTOPILOT
The built-in autopilot, with integrated heading sensor and GPS, provides anchor lock, heading hold and cruise control. Just set your track, and it will guide you along your
|
Shaft length |
57″ |
|
For use in |
freshwater; warranty also covers saltwater/brackish water use |
|
Mounting location |
bow |
|
Mount style |
scissor style mount |
|
Max thrust |
100 lbs Per ISO 13342 using high efficiency propeller at 36V; 80lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
|
Voltage |
24 V or 36 V |
|
Electric steering |
yes |
|
Lift-assist |
dual gas springs |
|
Built-in heading sensor |
yes |
|
Built-in GPS |
yes (high-sensitivity GPS) |
|
Warranty |
3-year, limited lifetime on shaft |
|
Water rating (components above water) |
IPX7 |
|
Wireless remote |
yes (included) |
|
Foot pedal |
yes (included) |
|
Battery indicator |
yes |
|
Variable speed control |
yes (20 steps) |
Sonar |
|
|
Frequencies supported |
CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVu: Ultra-high definition 800 kHz SideVu: Ultra-high definition 1200 kHz and 455 kHz |
|
Partial frequencies supported |
CHIRP Sonar: High-wide CHIRP (150-240 kHz) ClearVü: 800 kHz SideVü: 455 kHz |
|
Transmit power |
350 W |
|
Maximum depth |
CHIRP sonar: 800′ ClearVü: 200′ Ultra-high definition SideVü: 125′ to each side; 250 total at a max depth of 30′ 455 kHz SideVü: 500′ to each side; 1000′ total |
|
Depth/speed/temperature |
depth and temperature |
|
Number of pins |
12-pin (orange connector) |
AutoPilot Features |
|
|
Route following |
yes |
|
Anchor lock |
yes |
|
Heading hold |
yes |
|
Cruise contorol |
yes |
|
Gesture features |
yes (manual+, heading hold+, jog+) |
Foot Pedal |
|
|
Dimensions |
12″ L x 9″ W x 4 1/2″ H |
|
Wireless communication |
yes |
|
Power installation |
12V wired or battery powered (2 AA) |
|
AA battery life |
1 full season |
|
Waterproof rating |
IPX7 |
|
Adjustable pedal resistance |
yes |
Remote |
|
|
Display size |
1.2″ (30.4 mm) diameter |
|
Display resolution |
240 x 240 pixels |
|
Display type |
color, sunlight-visible, transflective memory-in-pixel (MIP) |
|
Chartplotter user programmable keys |
yes |
|
Autopilot feature control |
yes |
|
Water rating |
IPX7 |
|
Battery life |
typical use with backlight at low, 43.2 weeks |
|
Floats |
yes |
