Description

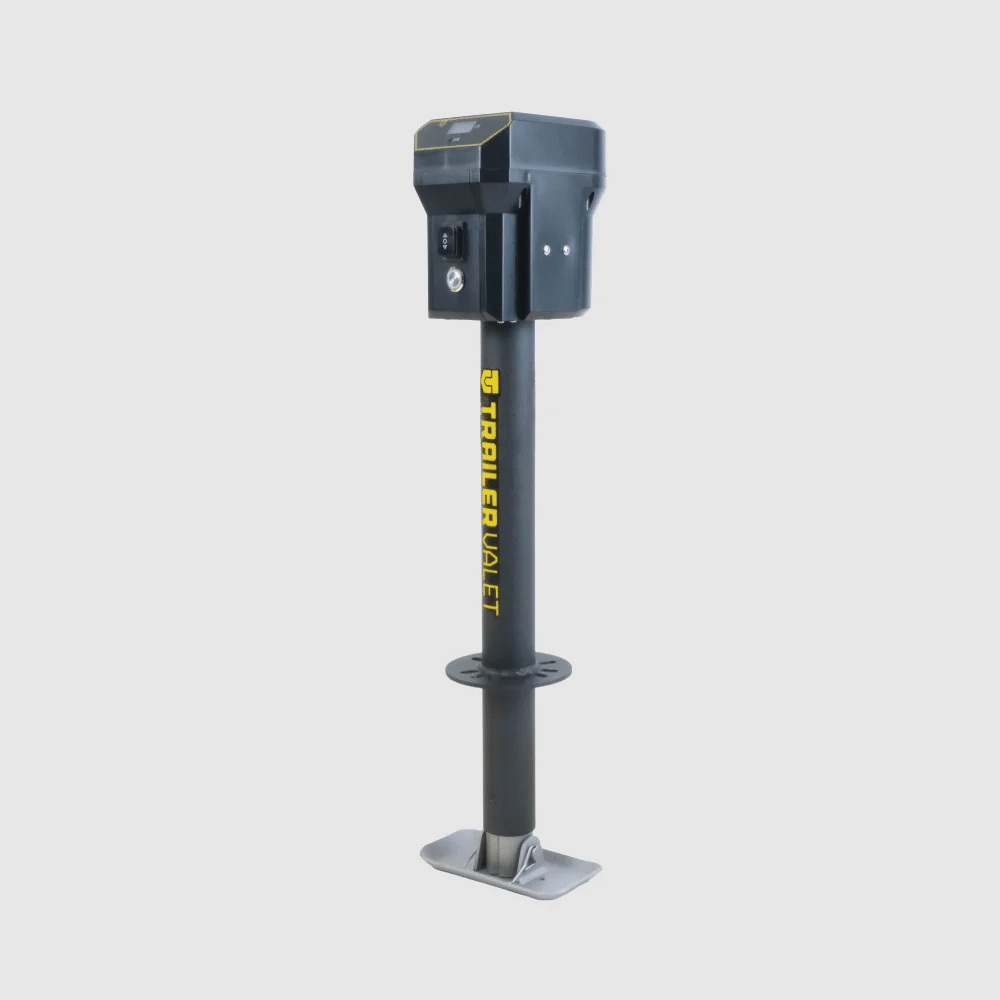

Trailer Valet Electric Trailer Jack 12 Volt 3500 Lb Capacity

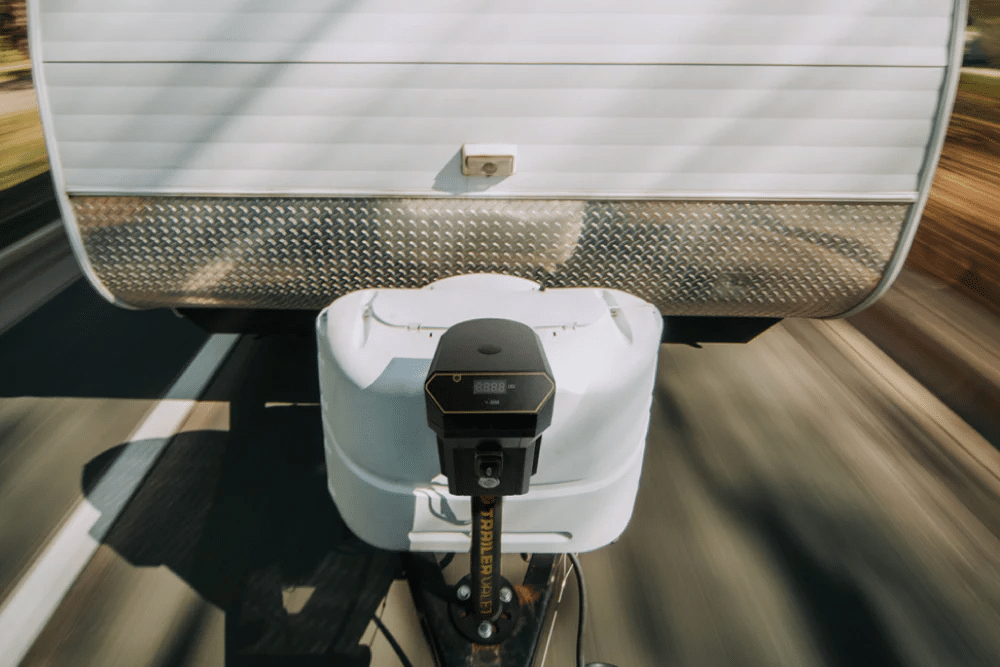

The PJX3500 combines an electric trailer jack with a built-in tongue weight scale and manual crank backup, giving you power, precision, and peace of mind in one cutting-edge system. Rated for up to 3,500 lbs and designed for easy center A-frame installation, the PJX3500 connects directly to your RV’s battery.

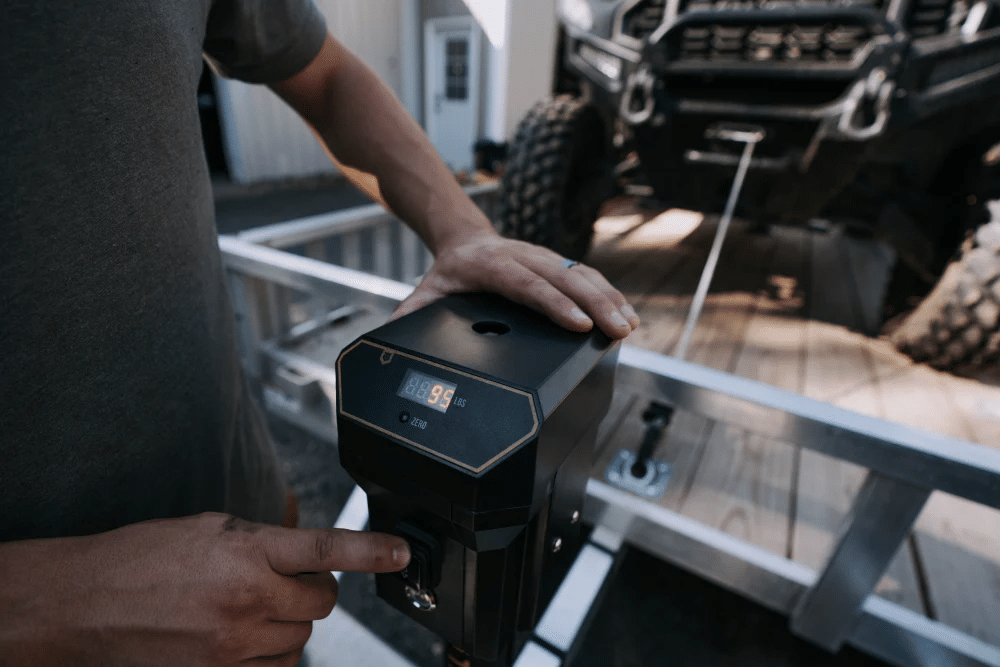

BUILT-IN SCALE
The PJX3500 jack makes lifting your trailer easy and confirms proper tongue weight for balanced towing, giving you confidence whether hauling a boat, RV, or trailer for safer trips ahead.
POWER WHEN YOU NEED IT. BACKUP WHEN YOU DON’T.

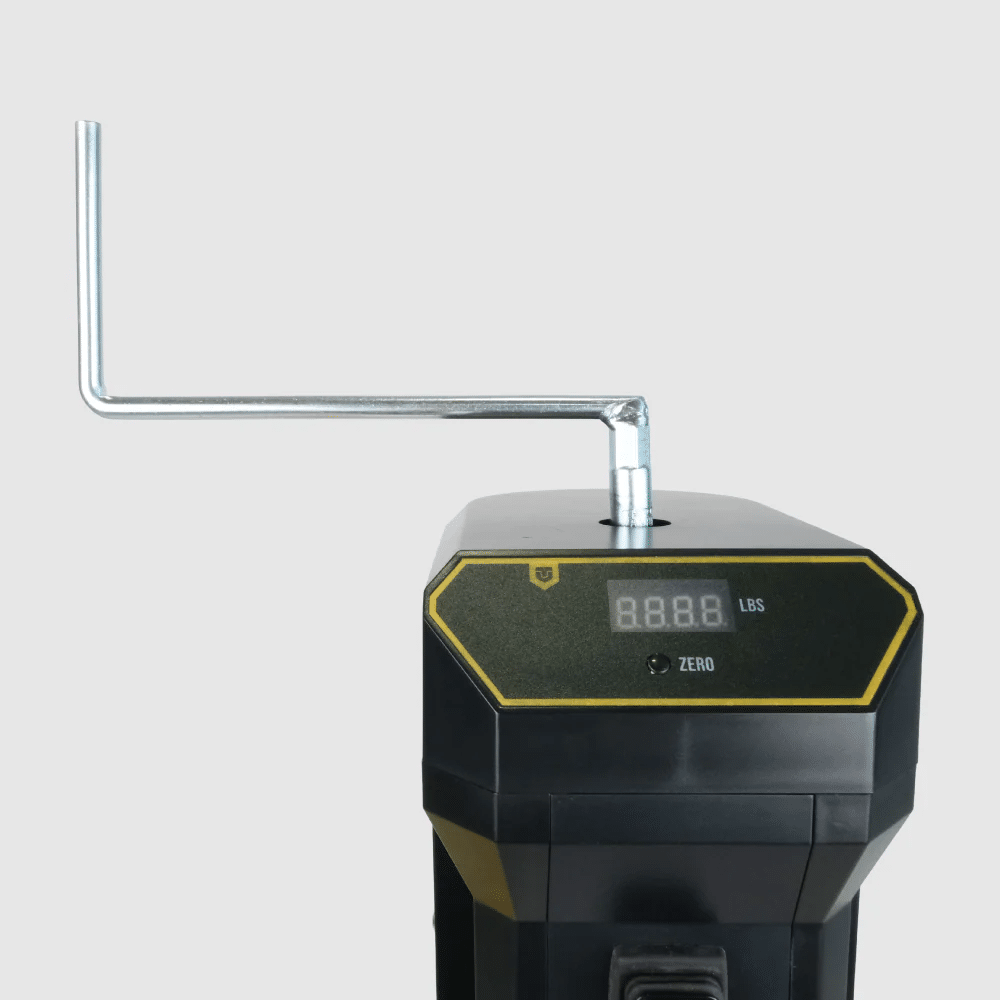

With reliability in mind, the PJX3500 includes a manual crank backup so you can operate the jack even without power or a low battery, ensuring you’re never stuck in any situation ever.
HIGH CAPACITY
Unlike conventional setups that require a third-party scale, the PJX3500 gives you the data before you’re committed. That means better safety, quicker setup, and smarter towing.
BETTER TOGETHER
Built with robust construction, a 3,500 lb lift capacity, precise electronics, and a motor 20% quieter than standard jacks, this unit delivers reliable, convenient power for adventure.
|
SPECS |
|
|
Lift Capacity |
3,500 Lbs |
|
Dynamic Lift Capacity |
3,500 Lbs |
|
Static Load Capacity |
5,000 Lbs |
|
Static Weight Cap w/ Footplate |
5,000 Lbs |
|
Lift Travel |
16.5 Inches |
|
Item Net Weigh |
26.8 Lbs |
|
Total Height Adjustment |
16.5 Inches |
|
Total Retracted Height |
31.5 Inches |
|
Total Extended Height |
48 Inches |
|
Total Extension |
48 Inches |
|
Clearance (Mount to Top) |
9.2 Inches |
|
Jack Height (Ground to Top) |
22.3 Inches |
|
Outer Tube |
2.25 Inches |
|
Inner Tube |
2.00 Inches |
|
Mounting Type |
Center Bolt-On |
|
Warranty |
1 Year Manufacturers Limited Warranty |
|
Included Components |
Jack with 60 inch lead cables with connectors, Hand Crank, Mounting Hardware (bolts and washers |
|

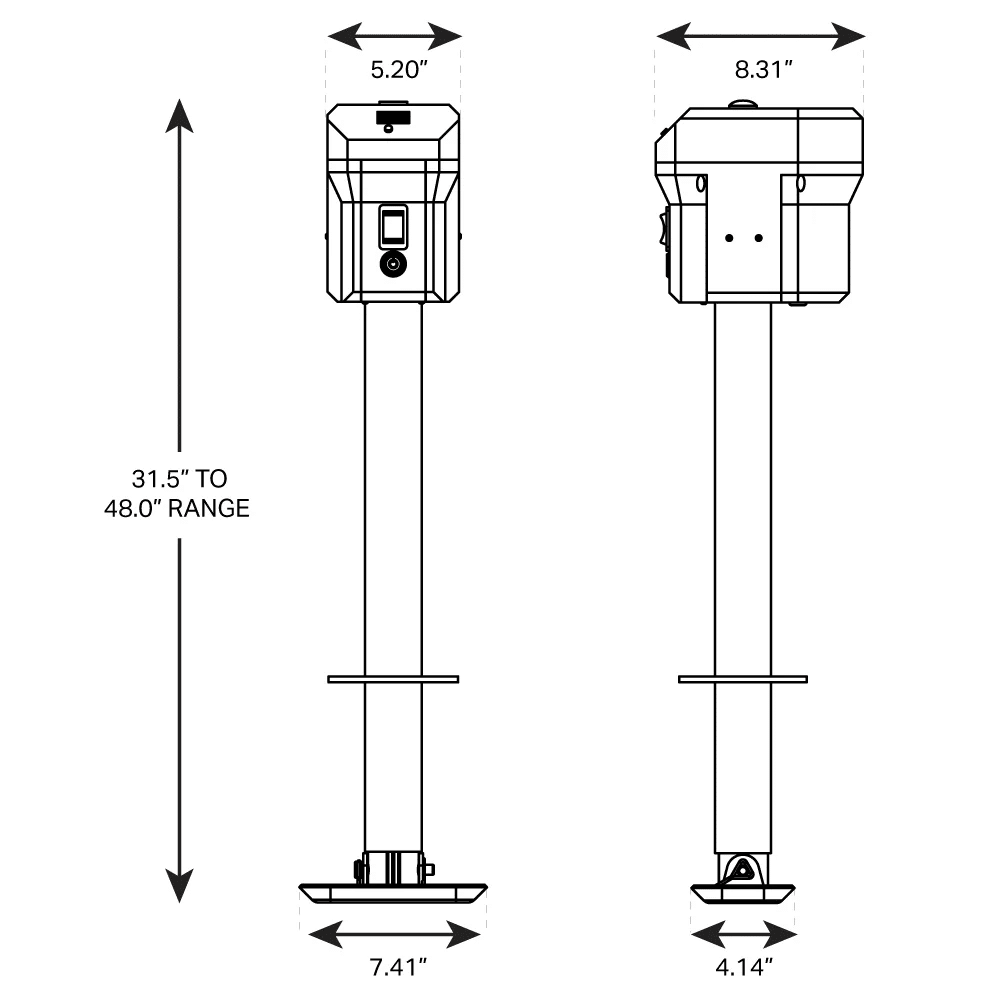

DIMENSIONS Height | Width | Depth in Inches |
31.5 to 48 | 7.4 | 8.3 |
