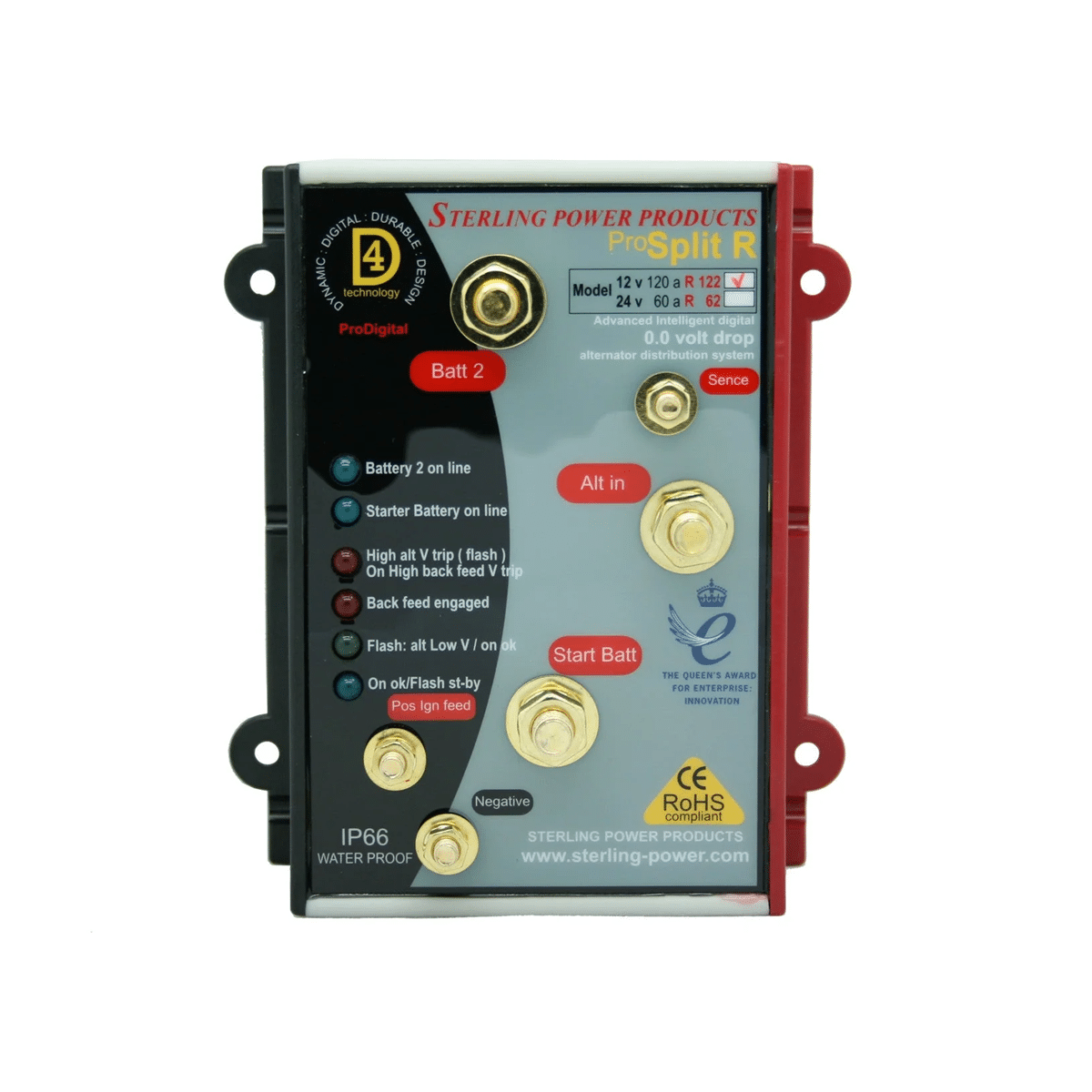

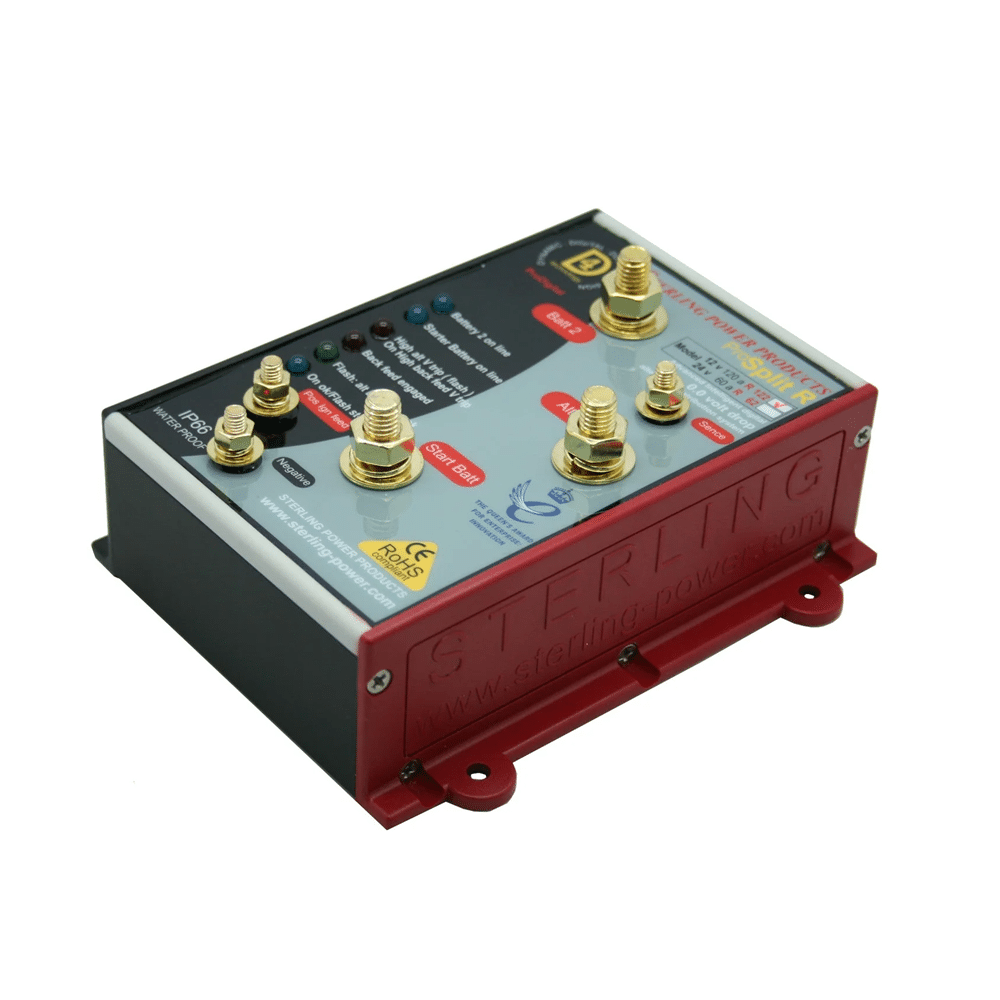

Sterling Power Pro Split Relay Battery Splitter
The Pro Split R is a microprocessor-controlled battery splitter designed to intelligently distribute charge from an alternator across multiple battery banks. It eliminates traditional voltage drops, ensuring faster and more efficient charging — delivering a performance advantage of up to 500% over competitors like Mastervolt.
This unit actively monitors battery states and isolates banks if issues like back-feed, alternator faults, or faulty chargers occur. By temporarily isolating the engine battery, the Pro Split R ensures the alternator charges the domestic battery at maximum efficiency, without interference.
Key Benefits:
True zero-volt drop for maximum alternator efficiency.
Safeguards against back-feed, faulty alternators, and overcharging.
Prioritises engine start battery to guarantee reliable starts.
LED status display for clear monitoring.
Robust build with 240A continuous and 2000A surge rating.
Fail-safe design always maintains alternator-engine connection in case of fault.
|
IP Rating |
|
IP65 |
|
Product Dimensions |
|
150.0mm x 80.0mm x 140.0mm |
|
Product Weight |
|
700 g |
|
SKU |
|
PSR182 |
|
Amps |
|
180 |
|
Inputs |
|
1 |
|
Outputs |
|
2 |
|
Engage Method |
|
SIGNAL / IGNITION |
