Description

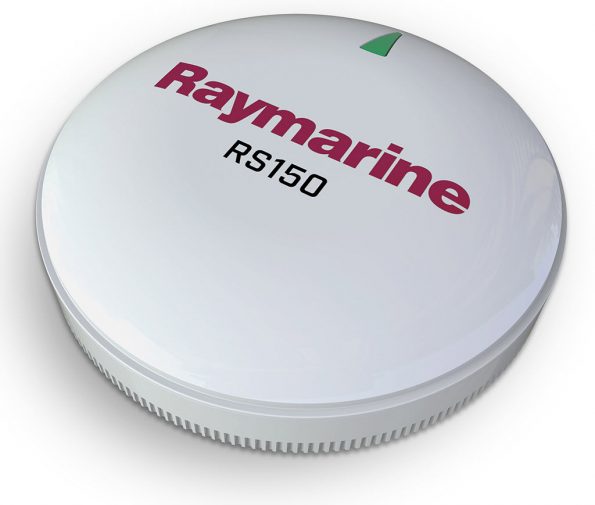

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The Raymarine RS150 GPS sensor offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.
Raymarine RS150 Key Features:
- 72-channel GPS receiver
- Fast 10Hz position updates
- Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
- A GNSS receiver with GLONASS compatibility
- Low power consumption: 30mA (1 LEN)
- SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
- Designed for low profile surface mounting or optional pole mounting
- SeaTalkNG Spur Cable Included
| Product Number | E70310 |
| Nominal supply voltage | 12V D.C. Powered by N2K bus |
| Operating voltage range | 8 – 32V DC |
| Power consumption | 30 mA max (NMEA LEN = 1) |
| Operating temperature | ย -13ยบF to 131ยบF (-25ยบC to +55ยบC) |
| Relative humidity | max 93% |
| Waterproof | IPx6/7 |
| Supported connection protocols | SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor) |
| Sensitivity | High sensitivity – acquisition down to -163dBm |
| No. of channels | 72 |
| Positioning System | GPS & GLONASS |
| Satellite Differential Type | WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India) |
| Differential acquisition | Automatic |
| Position accuracy (95%) | <15m |
| Position accuracy with SDGPS (95%) | <5m |
| Speed accuracy (95%) | <0.3kt |
| Time to first fix from cold start | <2 minutes (< 45 seconds typical) |
| Time to first fix from hot start | < 8 seconds -72 hour hold up battery allows for hot start |
| Geodetic Datum | WGS84 |
| Mounting | Surface/rail/pole |
