Humminbird Ice Helix 5 CHIRP GPS G3 All Season

$779.95

SKU: 411740-1 Category: GTIN: 082324056734

Description

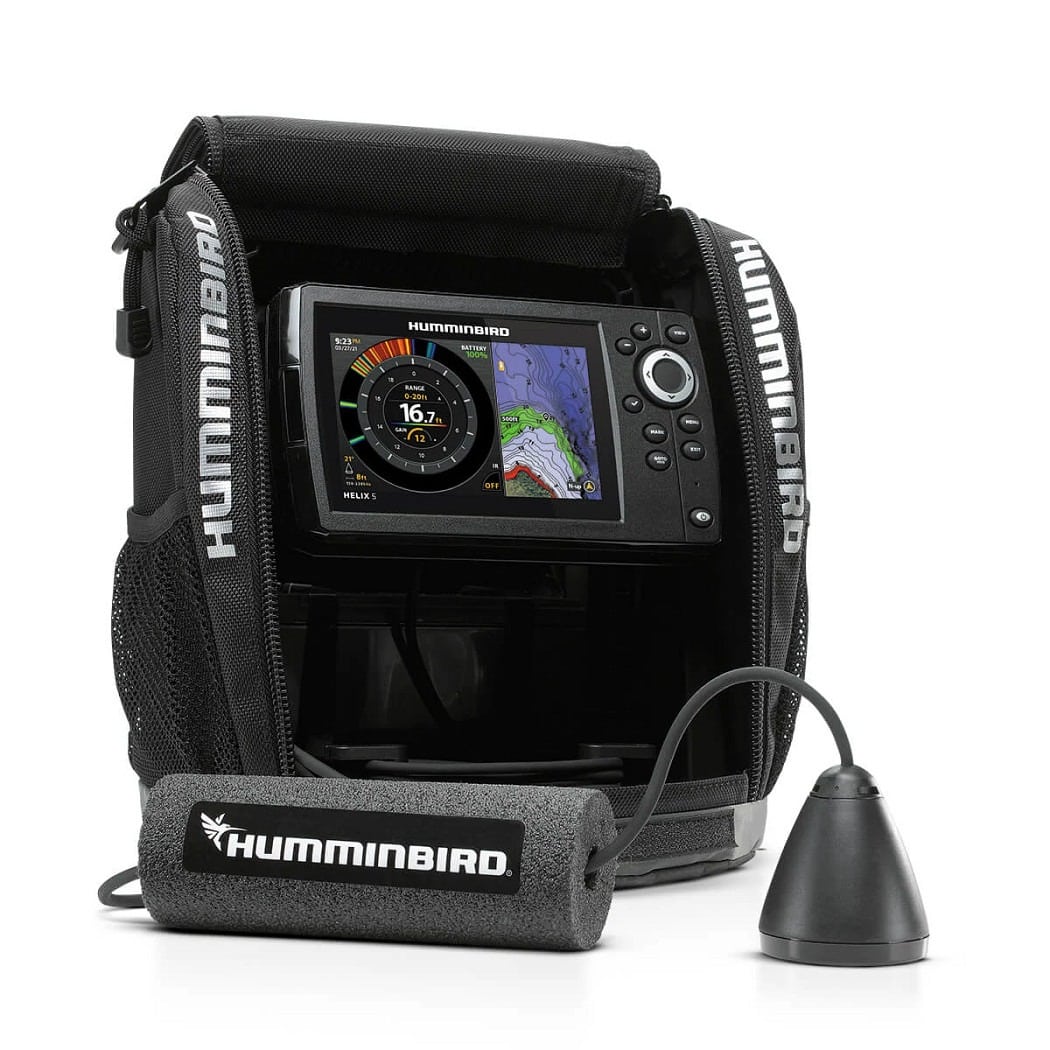

The ICE HELIX 5 CHIRP GPS G3 All Season brings you the most fish finding power and technology that can fit in a 5-gallon bucket. Take advantage of crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4″ target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode and unprecedented viewing options specifically for the ICE angler. And you’ll be set once the ICE thaws, because the ICE HELIX 5 CHIRP GPS G3 All Season includes everything you need to use it on a boat or in portable applications during the summer. Enjoy it all on a full color, 5″ HD LCD display.



  • Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4″.
  • CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
  • Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view.
  • Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks.
  • Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, daymarkers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes.
  • AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird LakeMaster features, Depth Highlight, Shallow Water Highlight and Water Level Offset.
  • MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX.
  • Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you’ll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.
  • Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.

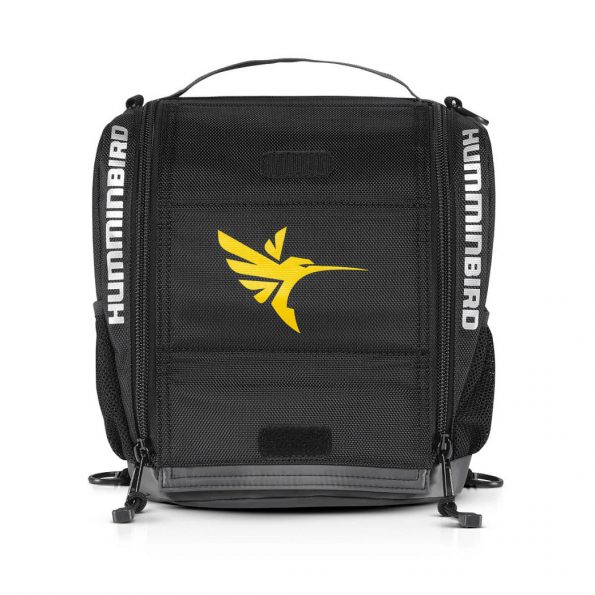

  • Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
  • all season Ready: This ICE HELIX fish finder comes with everything you need to use on both ICE and on your boat or portable applications in the summer.

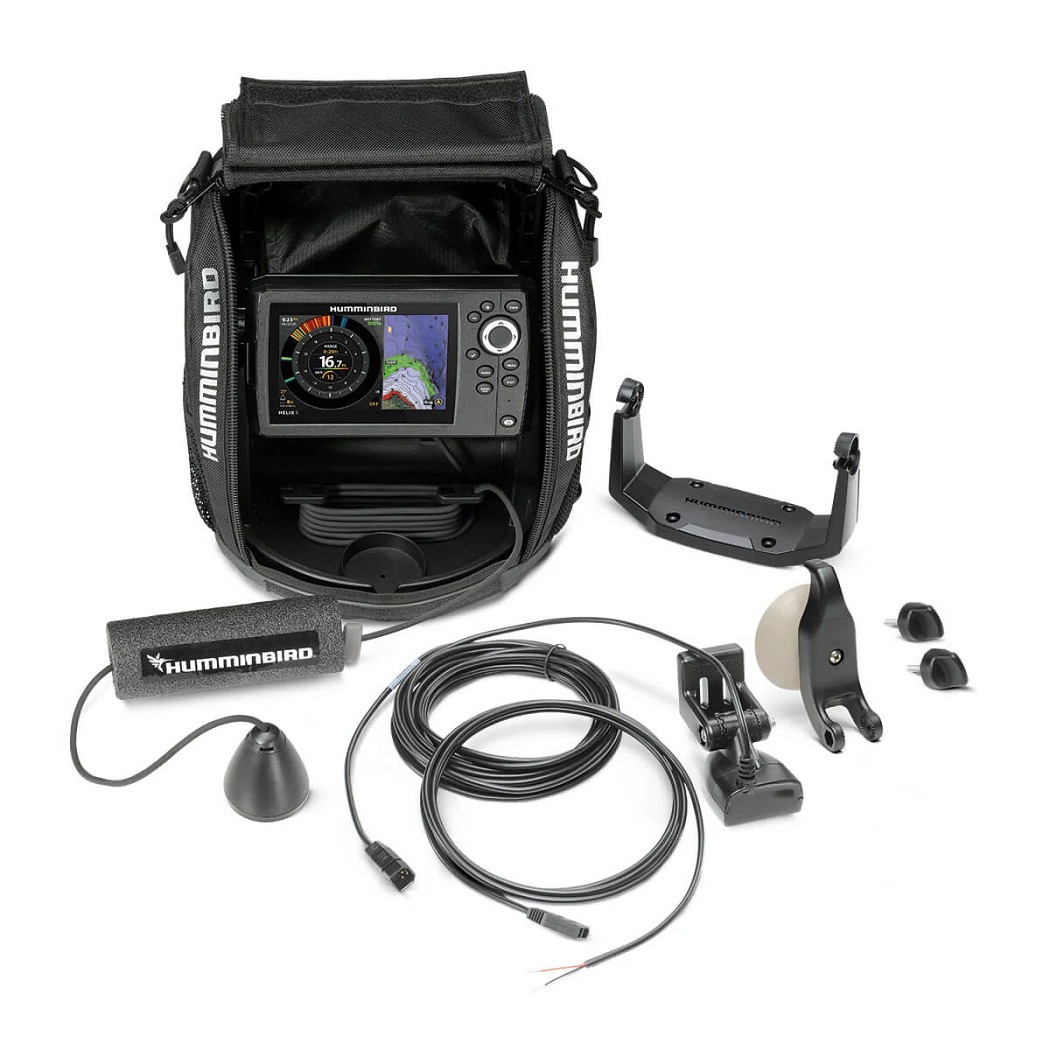

What’s Included: ICE HELIX 5 CHIRP GPS G3 fish finder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, portable bag and all necessary accessories to use on a boat or in portable applications (transom mount CHIRP transducer with optional suction cup transducer mount, fish finder gimbal mount and power cord).

1-Year Limited Warranty.



Item Number411740-1
SeriesICE
Display Size – Diagonal5″
Display Pixel Matrix800H x 480V
Sonar-StandardDual Spectrum CHIRP
Sonar-Coverage15° & 21° @ -3dB
Sonar-Optional50 kHz, 50/Low Airmar CHIRP
CHIRP – Frequencies Supported50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported50/80/200 kHz
Depth-Sonar400 ft
InterfaceKeypad Control
FeaturesDual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built In GPS, Built In Mapping, AutoChart Live Ice
Memory Card SlotSingle Micro SD
Power Draw615 mA
Power Input10.8-20 VDC
Power Output Peak-to-Peak4000 Watts
Power Output RMS500 Watts
Screen Snap ShotIncluded
Sonar RecordingIncluded
Mount-StandardPortable
Transducer Mount LocationPortable
GPS ChartplottingIncluded
GPS TrackplottingIncluded
LakeMaster CompatibilityYes
Coast Master CompatibilityYes
Navionics Gold/HotMaps CompatibilityYes
Navionics Platinum + CompatibilityYes
Platinum CompatibilityYes
Heading Sensor GPS CompatibilityYes
Upgradable SoftwareYes
View Preset KeysNo
X-Press Menu SystemYes
Custom Digital ReadoutYes
Custom View SelectionsYes
Display Colors Grayscale256 Color
Display Size5″ – 7″
SpeedIncluded
TemperatureBuilt In
Temperature AlarmYes
Temperature GraphNo
Transducer IncludedXI 9 1521
HDMI CompatibleNo
MEGA Live CompatibilityNo
UPC0082324056734
