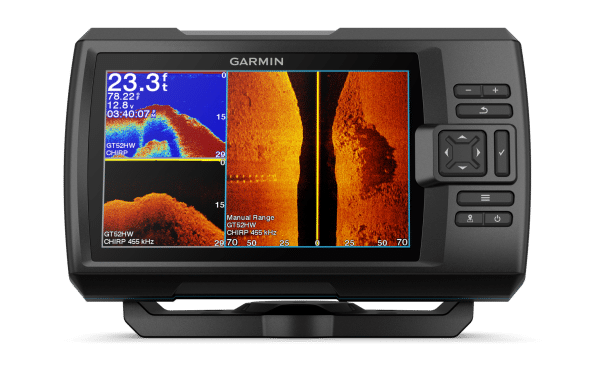

GARMIN STRIKER Vivid 7sv with GT52HW-TM Transducer

$699.95

SKU: 010-02553-01 Category: Tag: GTIN: 753759268398

Description

GARMIN STRIKER Vivid 7sv displays fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 7sv fishfinder with transducer.

CLEAR, COLORFUL SONAR

Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7” fishfinder.

BUILT-IN SONAR

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

WAYPOINT MARKING

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

HIGH-SENSITIVITY GPS

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

QUICKDRAW CONTOURS

Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

WI-FI CONNECTIVITY

Connect to the ActiveCaptain app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw Community.

INCLUDED HARDWARE

The STRIKER Vivid 7sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.



Specifications:

Physical dimensions  9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
Water rating  IPX7
Display resolution  800 x 480 pixels
Weight  1.7 lbs (0.8 kg)
Display type  WVGA color



Additional
  • One 4-pin transducer port
  • One 4-pin SideVü transducer port
  • Wireless Connectivity: Yes
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.67A
Water temperature sensor included  Yes
Dual-frequency (50/200 kHz) sonar capable  Yes
Transmit power  500 W (RMS)
Adjustable depth line (measures depth of underwater objects)  Yes
A-scope (real time display of fish passing through transducer beam)  Yes
Frequencies supported

Traditional: 50/77/200 kHz

CHIRP (mid and high)

ClearVü and SideVü 260/455/800 kHz

Water temperature log and graph  Yes
Bottom lock (shows return from the bottom up)  Yes
Audible alarms  Yes
Dual-beam (77/200 kHz) sonar capable  Yes
Fish Symbol ID (helps identify fish targets)  Yes
AutoGain Technology (minimizes clutter, maximizes targets)  Yes
Ultrascroll (displays fish targets at higher boat speeds)  Yes
Split-screen zoom  Yes
