FUSION XS Series 10″ 600 Watt Sports Marine Subwoofer with RGB LED Lighting


SKU: 010-02198-20 Category: Tag:


Continuing to set the benchmark for marine audio entertainment, Fusion’s new XS Series subwoofer features their trademark quality audio reproduction, enhanced marine aesthetics and LED illumination at a mid-range price point. Optimized for use in the marine environment, and built for performance, the XS Series subwoofer is designed to consistently produce quality low frequency audio at any volume level, season after season.

Set the tone, complement your music or get the party started on board with LED illumination in a wide range of colors available. The innovative translucent cone on the Sports style subwoofer produces bright, even LED illumination in any color you choose, which can be controlled with the MS-RGBRC wireless remote (sold separately).

With an IP65 weatherproof rating, True-Marine accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series subwoofer is built to last on your boat.



Versatile Design: With versatile options for integrating your subwoofer into your audio system, you can customize your setup to suit your audio requirements. Wire your subwoofer traditionally through an amplifier or create a 2.1 audio zone by connecting your subwoofer and two speakers directly to a compatible Fusion stereo with DSP, like the Apollo Series, without requiring an external amplifier.

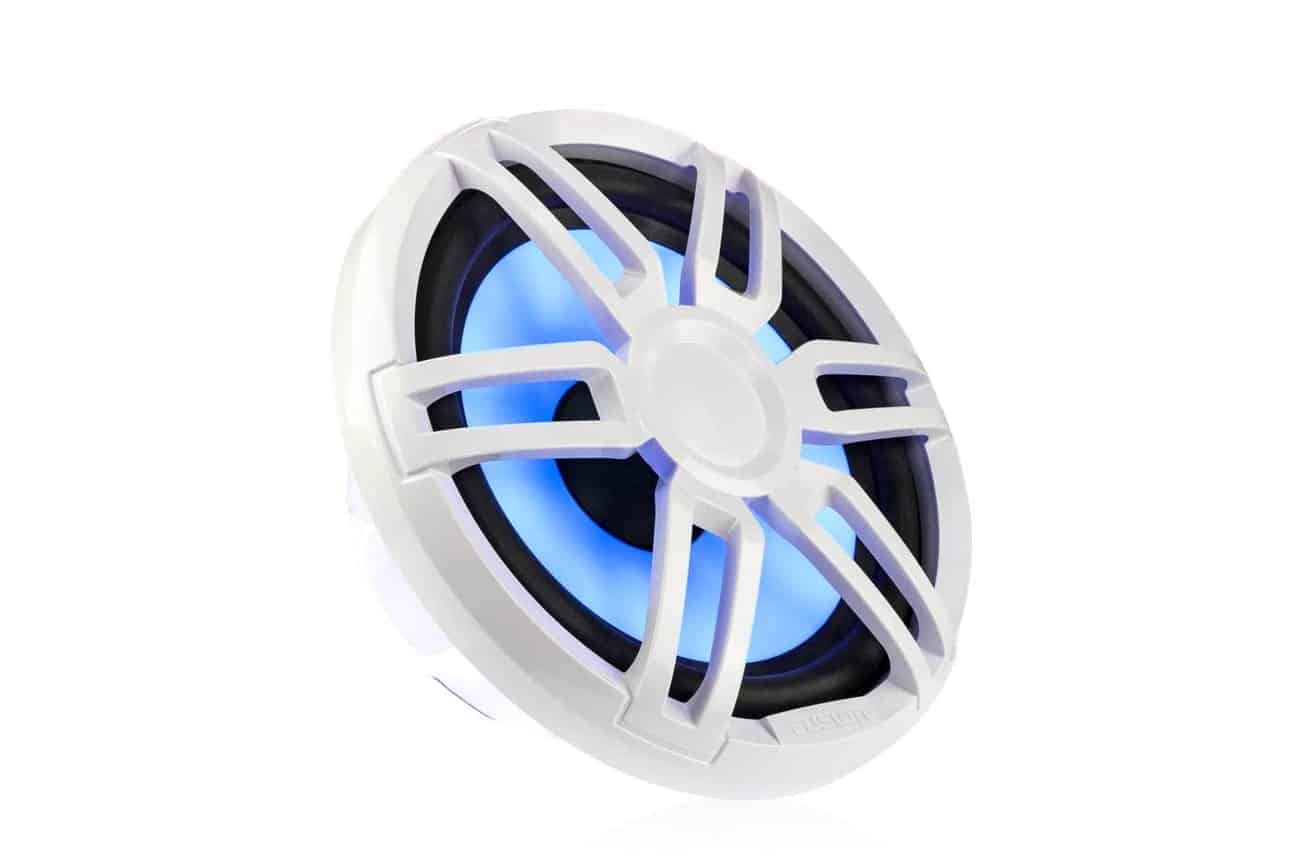

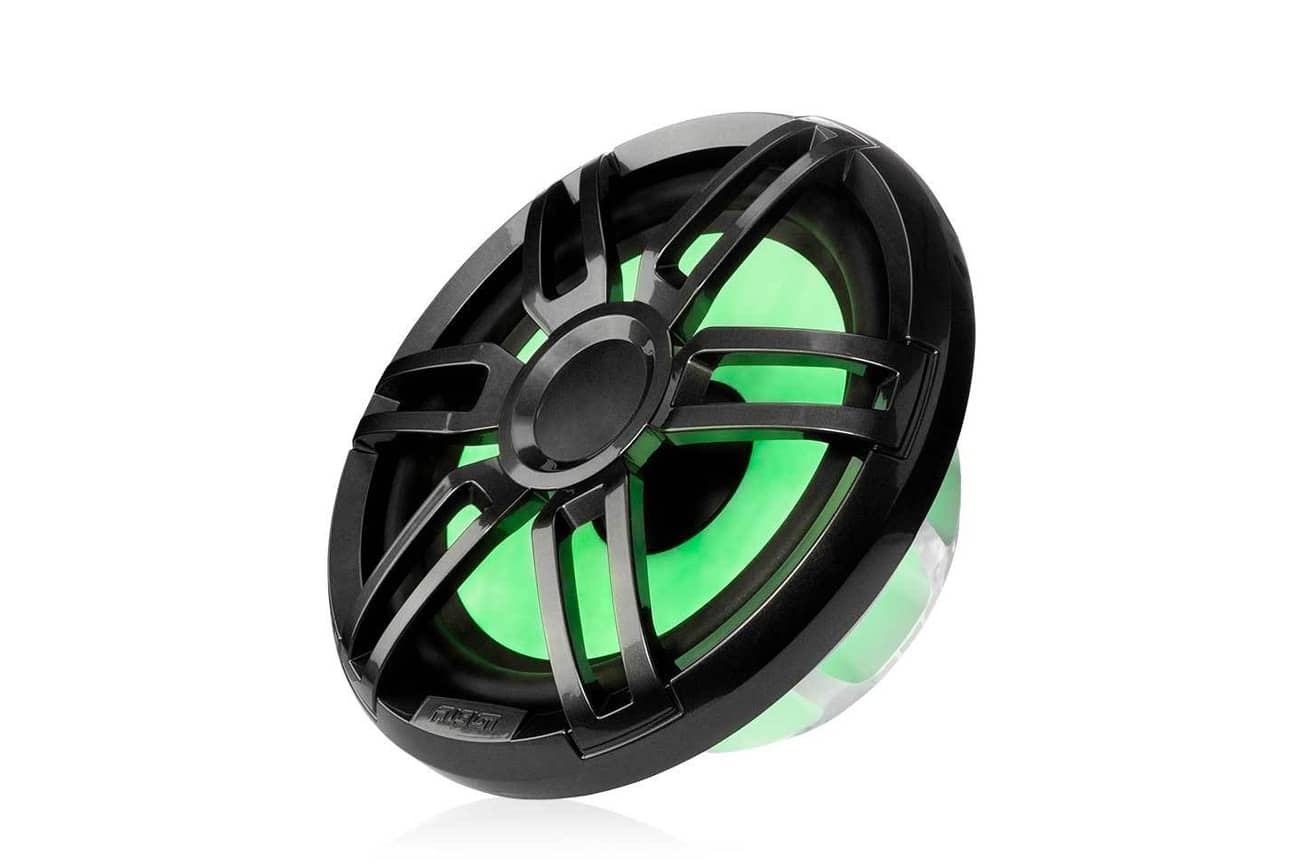

Innovative RGB Illuminated Cone: Enhance your on-water audio entertainment experience with LED illumination in a range of colors. The innovative translucent cone disperses a bright, even illumination to set the tone on board.

Quality Audio Reproduction: Enjoy quality low frequency audio at any volume level.

True-Marine Designed and Engineered: Extensively tested to perform in the harsh marine environment, the XS Series carry an IP65 weatherproof rating along with True-Marine accreditation.

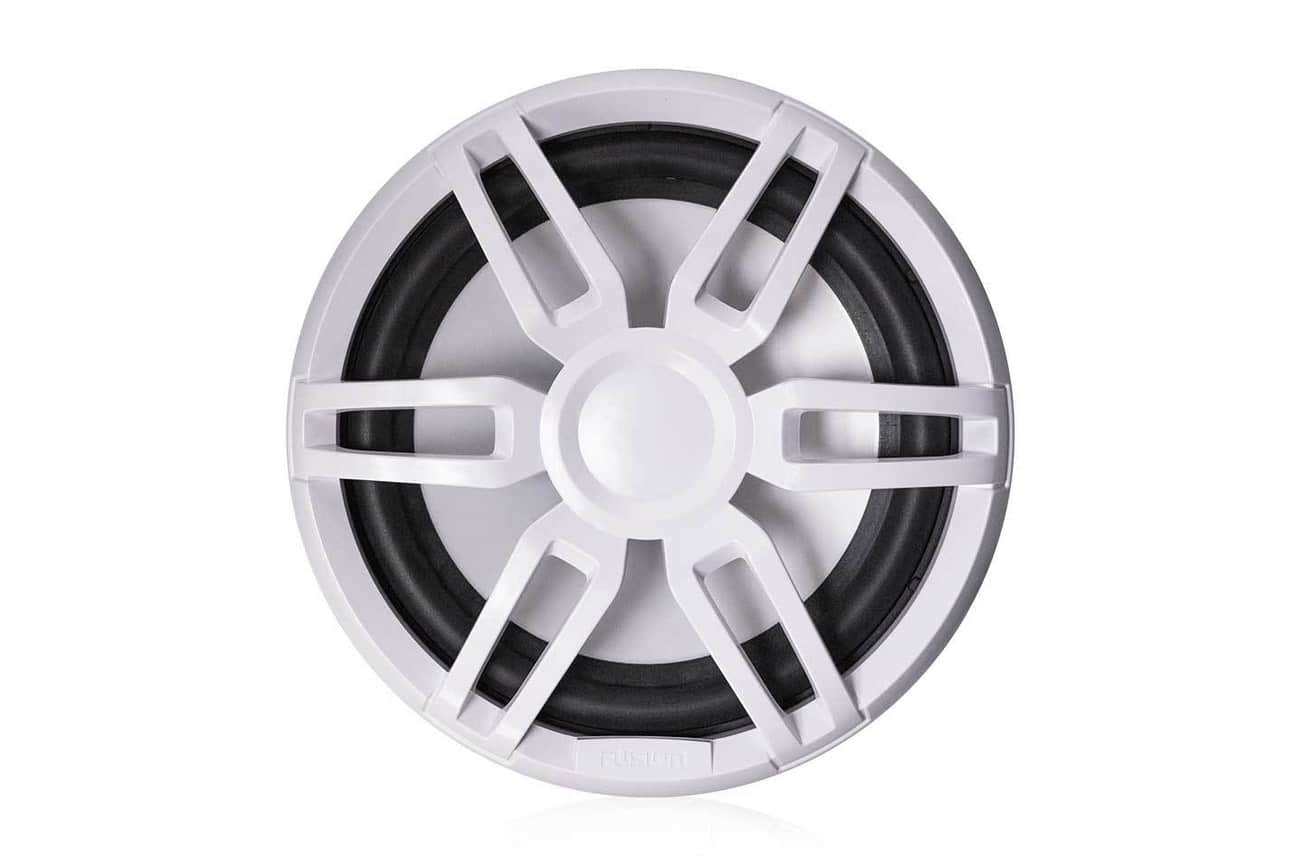

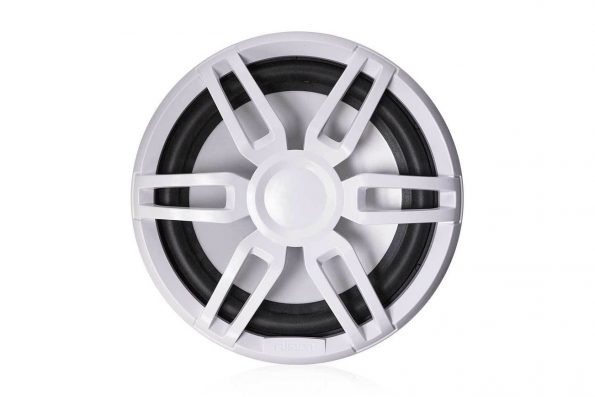

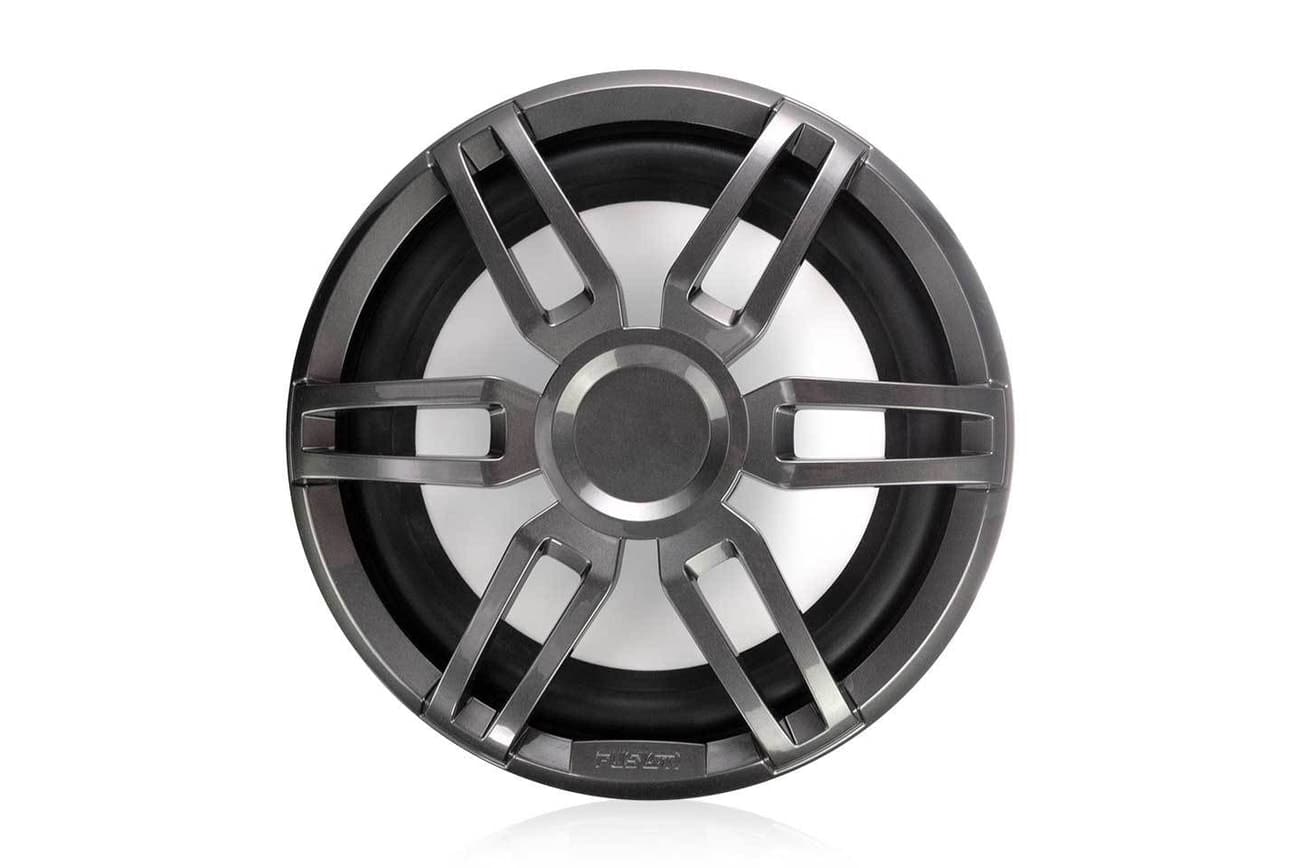

Two Grille Options Supplied: Enjoy the freedom to choose the finish to suit your vessel, with both Sports Grey and Sports White grilles supplied in the box.

Designed To Comply With ISO12216: Tested to international standards for pressure and watertightness, it recognizes the XS Series are designed and built to the highest industry standards for quality and robustness.




Subwoofer Size  10″
Peak Power  600 Watts
RMS Power Rating  120 Watts
Efficiency (1W/1M)  87dB
Frequency Response  30 Hz – 2 kHz
Nominal Impedance  4 ohms
Recommended Amplifier Power (RMS)  40 – 300 W/Ch
Cone / Surround Material  Polypropylene with rubber surround
Mounting Diameter Clearance  223mm (8-3/4″)
Mounting Depth Clearance  113mm (4-7/16″)
Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material)  40 L
LED Color Options  RGB
LED Supply Voltage  10.8 to 16V dc
LED Load Current at 14.4V dc  150mA
Operating Temperature Range  0 to 50°C (32 to 122°F)
Storage Temperature Range  -20 to 70°C (-4 to 158°F)
Water and Dust Resistance (IP rating)  IP65
Subwoofer Dimensions: Length x Height x Depth  Ø 274mm x 147mm [Ø 10-13/16″ x 5-3/4″]

3 years
