Description

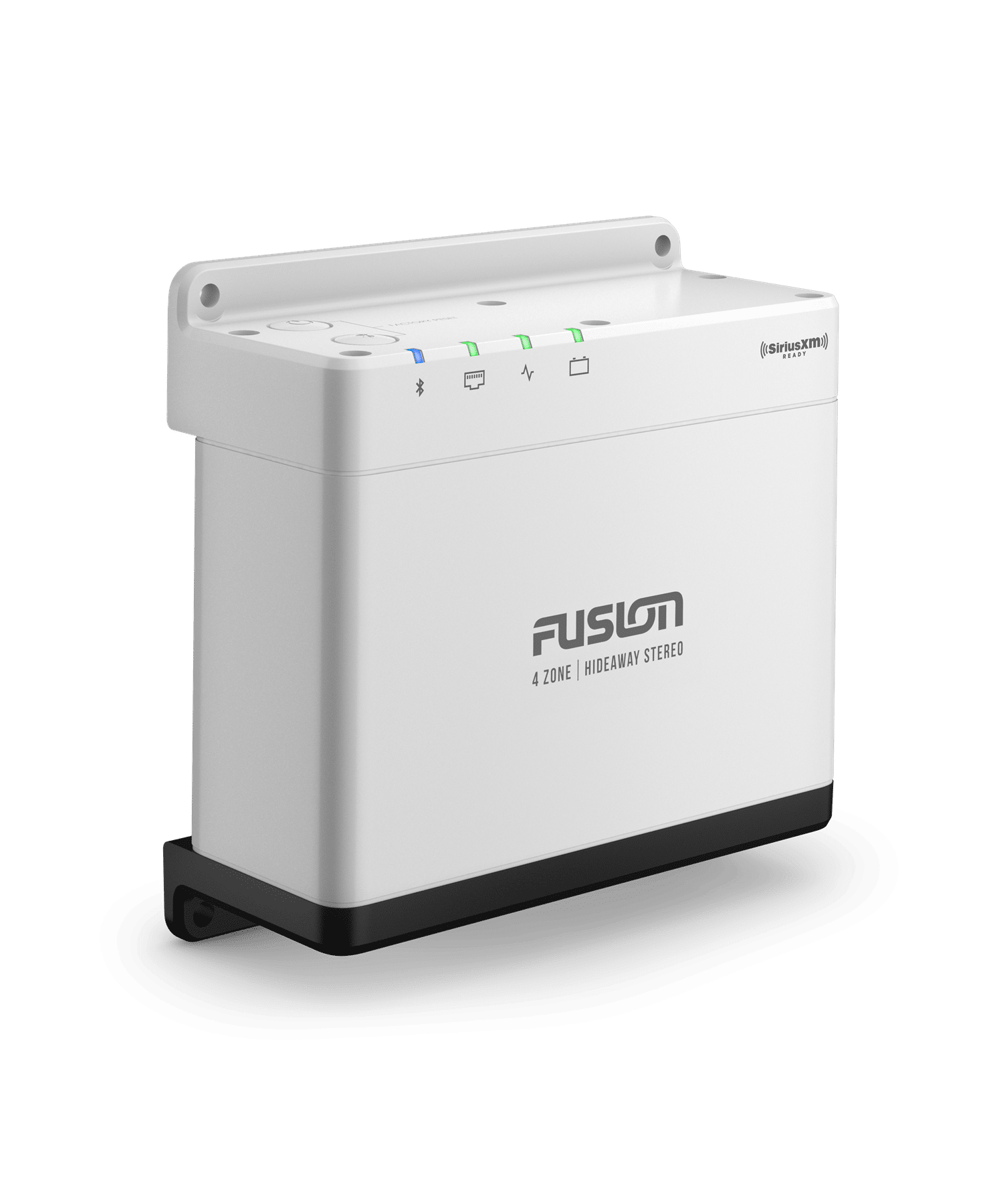

Fusion Apollo MS-WB675 Marine Hideaway Stereo is compact in design but still offers superior audio quality in up to four separate audio zones that you can control.
- Custom audio profiles for each zone on your boat deliver superior quality audio.
- Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate
- Experience seamless high-quality audio streaming from your music app via the AirPlay2 software feature
- Enjoy the freedom of musical choice with PartyBus-Network technology
- Multi-ZoneTechnology gives you control of up to four separate audio zones
- Control your music from your compatible multifunction display (MFD), smart device or Garmin smartwatch
|
General |
|
|
DIMENSION |
5.1″ x 5.1″ x 2.2″ (130 x 130 x 56 mm) |
|
WEIGHT |
1.05 lbs (475 g) |
|
WATER RATING |
IPX2 (when properly installed) |
|
OPERATING TEMPERATURE |
32° to 122° F (0° to 50° C) |
|
CURRENT (MAX) |
15 A |
|
Networking |
|
|
NMEA 2000® LEN |
1 (50 mA) |
|
BLUETOOTH® WIRELESS RANGE |
up to 30 ft (10 meters) |
|
ANT® WIRELESS RANGE |
Up to 10 ft (3 meters) |
|
WIRELESS FREQUENCIES/PROTOCOLS |
BLUETOOTH®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
|
Audio |
|
|
AMPLIFIER |
Class-D (2 ohm stereo-stable) |
|
Stereo Features |
|
|
PEAK POWER |
280 watts |
|
RATED POWER OUTPUT (2 OHM) |
43 watts RMS x 4 @ 14.4 V input < 10% THD |
|
RATED POWER OUTPUT (4 OHM) |
26 watts RMS x 4 @ 14.4 V input < 10% THD |
|
BUILT-IN DIGITAL SIGNAL PROCESSING (DSP) |
yes (with custom DSP profile setup using Fusion-Link™ app) |
|
PARTYBUS™-NETWORK CAPABILITIES |
yes (wired) |
|
FUSION-LINK™ CONTROL |
yes (MFD, smart device and Garmin watch) |
|
MULTI-ZONE™ TECHNOLOGY |
4 zones |
|
BLUETOOTH® WIRELESS TECHNOLOGY |
|
|
ANT® WIRELESS TECHNOLOGY |
|
|
SIRIUSXM-READY |
|
|
DAB+ READY |
|
|
OPTICAL AUDIO INPUT |
|
|
SUPPORTS ERX WIRED REMOTE |
|
|
SUPPORTS NRX WIRED REMOTE |
|
|
SOFTWARE UPDATES |
Over-the-air updates via Fusion-Link™ app / USB |
|
WARRANTY |
3 years |
|
Sources |
|
|
SUPPORTED SOURCES |
AM, FM, BLUETOOTH®, Apple® AirPlay® 2, digital optical input, USB audio, iPhone®, iPod®, AUX x1, UPnP, MTP
SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner)
DAB+ ready (available in Europe and Australia only) |
|

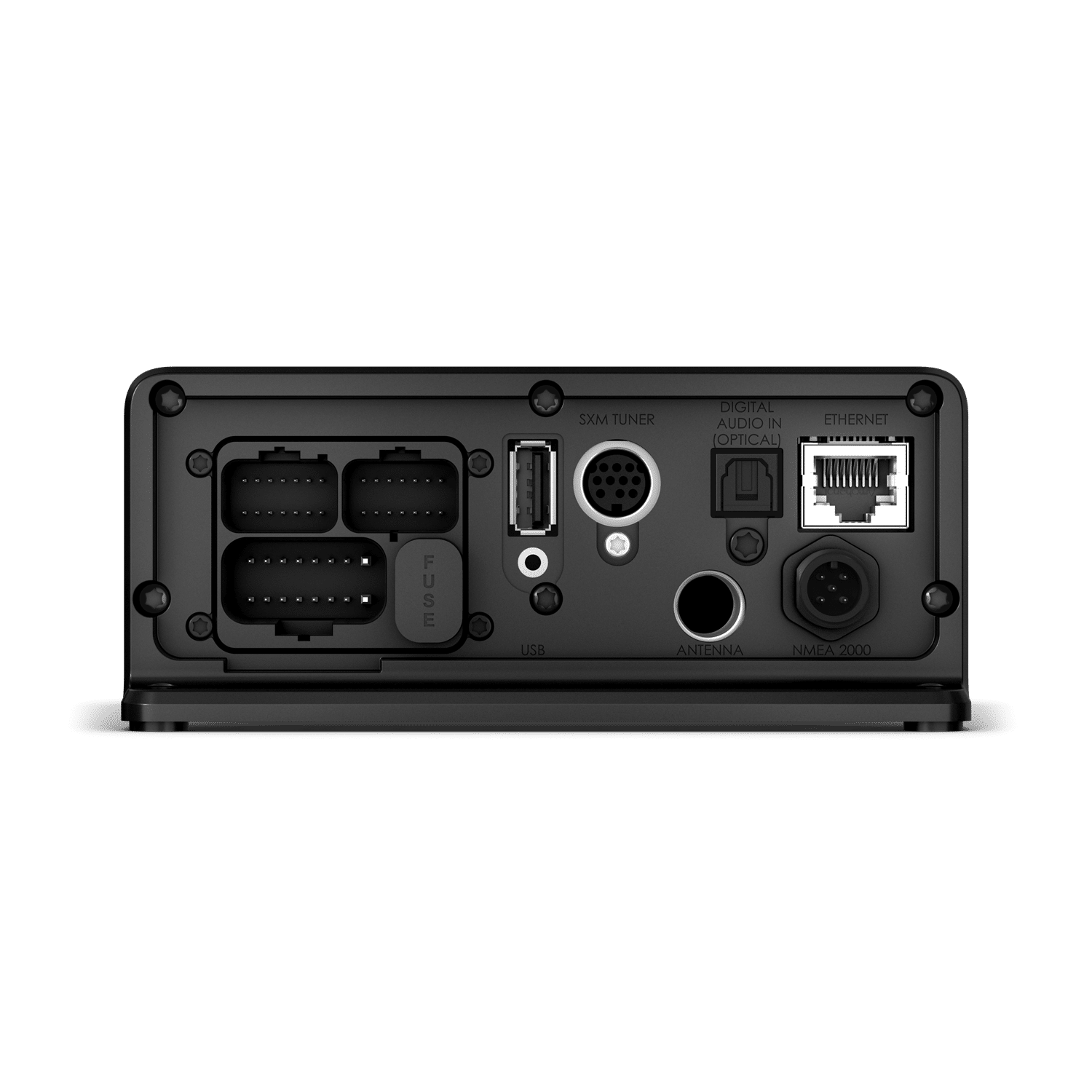

Connections |
|
|
AUXILIARY INPUTS (RCA) |
1 |
|
OPTICAL AUDIO INPUTS (DIGITAL OPTICAL INPUT SPDIF) |
1 |
|
ETHERNET PORTS |
1 |
|
NMEA 2000® PORTS |
1 |
|
USB 2.0 PORTS |
1 |
|
SIRIUSXM PORTS |
1 |
|
AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) |
1 |
|
SPEAKER CONNECTIONS |
4 (2 zone amplified) |
|
RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) |
4 zones (requires external amplification) |
|
LINE OUT |
4 (L + R per zone, requires external amplification) |
|
SUBWOOFER OUT |
4 (1 mono output per zone, requires external amplification) |
|
Electrical Features |
|
|
POWER INPUT |
10.8 – 16 VDC |
|
COMPASS SAFE DISTANCE |
5.9″ (150 mm) |
