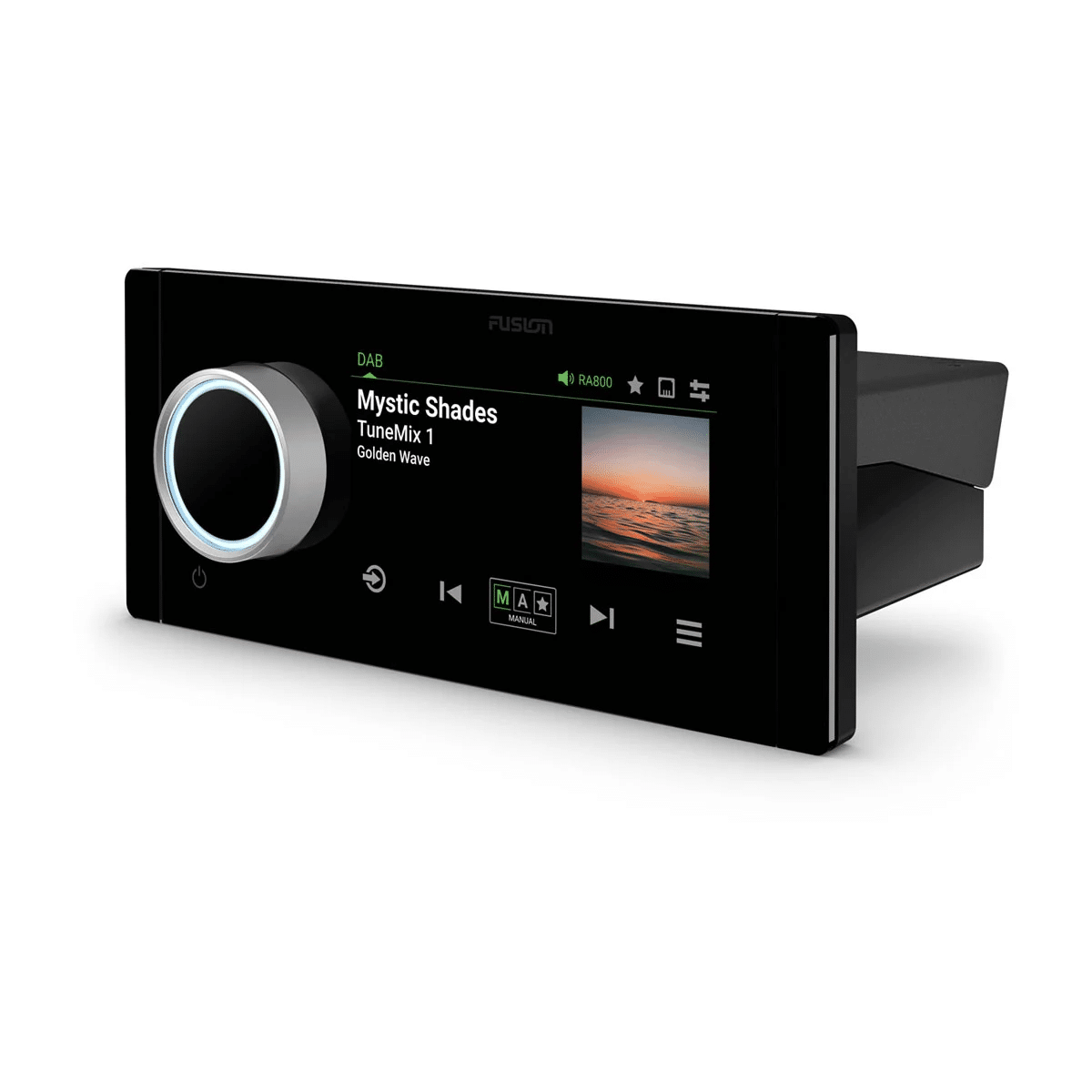

Fusion Apollo MS-RA800 Marine Stereo
Fusions most technologically advanced marine stereo ever. With audiophile-level components and a built-in amplifier providing twice the power of the predecessor RA770, this system delivers lossless audio performance of unmatched clarity. Plus, its Wi-Fi connectivity supports seamless AirPlay audio streaming on your boat.
- SLEEK, MODERN DESIGN FEATURES EDGE-TO-EDGE GLASS DISPLAY
- ENJOY PREMIUM WI-FI STREAMING WITH HIGH-RESOLUTION LOSSLESS AUDIO
- BUILT-IN CLASS-D AMPLIFIER BOASTS 50% MORE POWER OUTPUT
- SEE QUICKER RESPONSE WITH 8 TIMES FASTER DIGITAL PROCESSING SPEED
- SHARE ONBOARD AUDIO SOURCES WITH STEREO GROUPING
- REMOTELY CONTROL YOUR MUSIC FROM COMPATIBLE DEVICES
HIGH-RESOLUTION AUDIO-Fusions first marine stereo to support high-resolution lossless audio, RA800 offers unparalleled sound quality — supported by Wi-Fi technology for seamless audio streaming.
UPGRADED INTERNAL AMP-The built-in Class-D amplifier can deliver 4 x 40 watts RMS (all channels driven) with less than 0.1% total harmonic distortion at 4 ohms — producing more than 50% more power output1 than its predecessor.
HIGHER-RESOLUTION DISPLAY-The stereo’s 4.3-inch LCD touchscreen display offers notable improvements1 in image resolution, color saturation, viewing angles and readability in bright daylight.
STEREO NETWORKING-Connect your RA800 stereo with other Apollo Series stereos to create a network on board your boat. Enjoy advanced features, including stereo grouping, combined volume control, power options and Home Zone control.
MULTIPLE SOURCE OPTIONS-Take advantage of a wide variety of source options available, including AirPlay streaming from Apple, BLUETOOTH connectivity, HDMI ARC, DAB+ radio tuner, USB connections, AM/FM radio and AUX inputs.
MFD NETWORKING-Easily network your RA800 stereo with a compatible Garmin MFD via NMEA 2000 networking for integrated audio control at the helm. Or use the Fusion Audio app to wirelessly control your music from a compatible Garmin smartwatch or other smart device.
QUICK SWITCH FROM RA770 TO RA800-With an identical form factor and wiring loom as the predecessor RA770, upgrading and installation are simple with RA800
|
General |
|
|
|
Physical dimensions (Height) |
|
3.23″ (82 mm) |
|
Physical dimensions (Width) |
|
7.56″ (192 mm) |
|

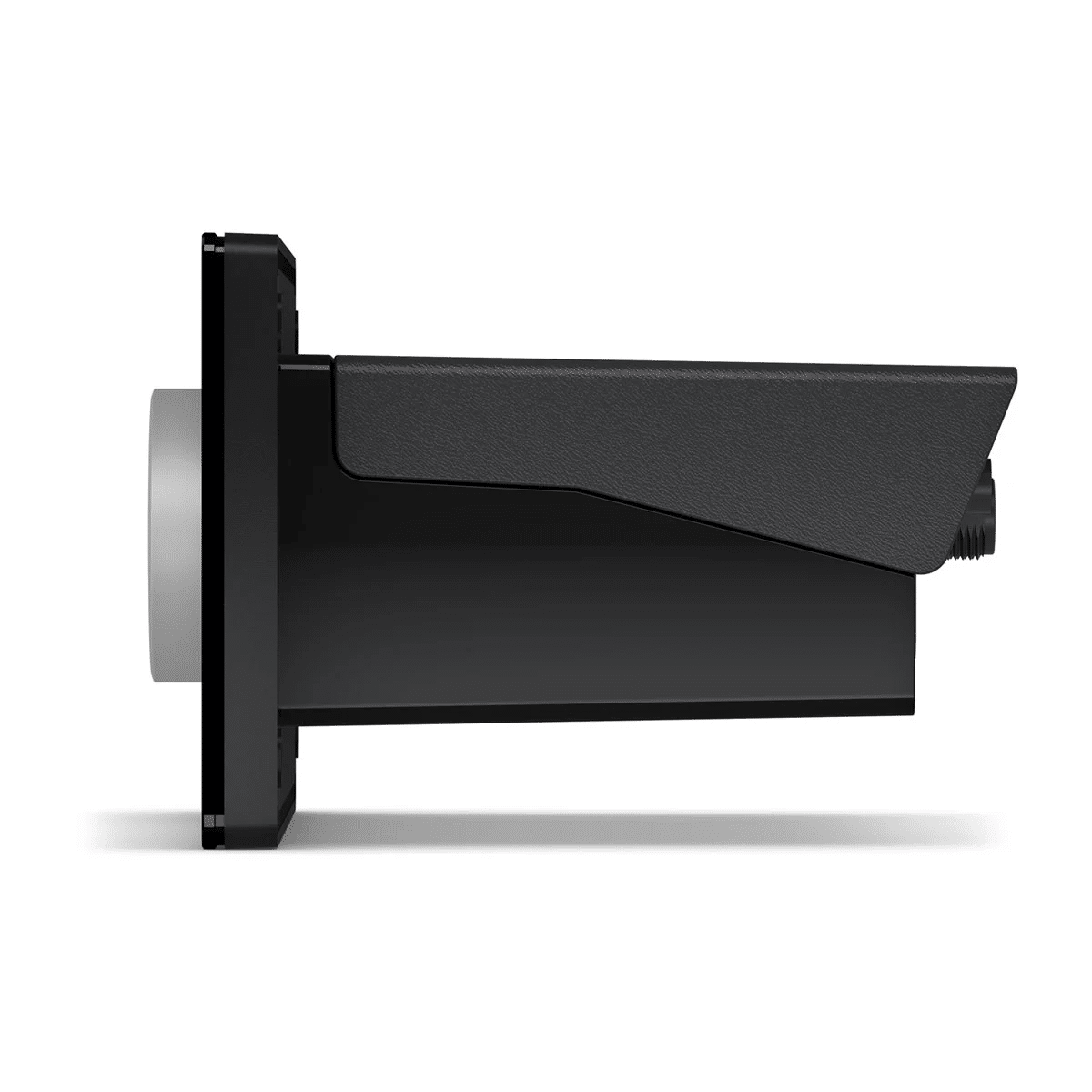

Physical dimensions (Depth) |
|
4.7″ (119.4 mm) |
|
Weight |
|
1.37 lbs (620 g) |
|
Control Surface Dust/Water Rating (when properly installed) |
|
IPX6 and IPX7 |
|
Rear Dust/Water Rating (when properly installed |
|
IPX3 |
|
Operating temperature range |
|
-20 to 70° C |
|
Current draw (max) |
|
25 A at 14.4 V; 15A at 28.8 V |
|
Warranty |
|
3 years |
|
|
|
|
|
Networking
|
|
|
|
NMEA 2000 LEN |
|
2 (65 mA) |
|
Bluetooth wireless range |
|
up to 30 ft |
|
ANT wireless range |
|
Up to 10 ft |
|
Wireless frequencies/protocols |
|
WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2 BLUETOOTH: 2.4 GHz @ +10 dBm nominal ANT: 2.4GHz 0dBm nominal |
|
|
|
|
|
Audio
|
|
|
|
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) |
|
40 W x 4 |
|
|
|
|
|
Electrical Features
|
|
|
|
Power Input |
|
10.8 to 32 Vdc |
|
Compass-safe distance |
|
5.9″ (150 mm) |
|
|
|
|
|
Stereo Features
|
|
|
|
Display size |
|
4.3″ (109 mm) |
|
Display type |
|
capacitive touchscreen color LCD |
|
Display resolution |
|
800 x 480 |
|
Optically bonded display |
|
Yes |
|
Built-in amplifier |
|
Class D (4 Ω) |
|
Built-in Wi-Fi® |
|
Yes |
|
Built-in Digital Signal Processing (DSP) |
|
yes (with custom DSP profile setup using Fusion-Link app) |
|
Stereo networking |
|
yes (wired or wireless)
|
|
Fusion-Link control |
|
yes (MFD, smart device and Garmin watch) |
|
Multi-Zone technology |
|
4 zones |
|
Bluetooth wireless technology |
|
Yes |
|
ANT wireless technology |
|
Yes |
|
Multi-language interface |
|
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish |
|
Software updates |
|
Over-the-air updates via Fusion-Link™ app (when connected to wireless network router) / USB |
|
|
|
|
|
Sources
|
|
|
|
Supported sources |
|
AM, FM, BLUETOOTH, Apple AirPlay 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2 |
|
Supported audio formats (USB) |
|
MP3, AAC, M4A, FLAC, WAV |
|
|
|
|
|

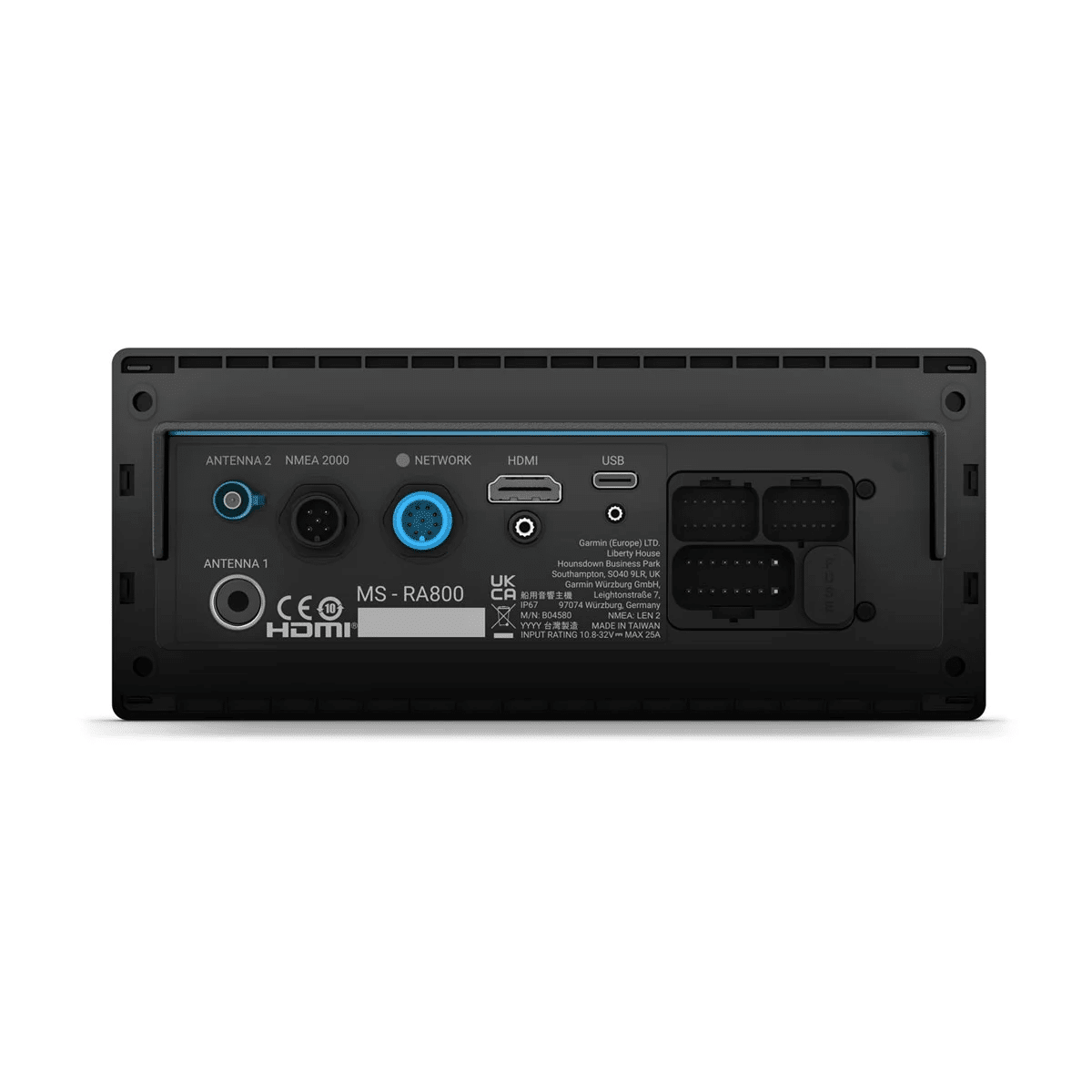

Connections |
|
|
|
Auxiliary inputs (RCA) |
|
2 |
|
HDMI ARC Ports |
|
1 |
|
Ethernet ports |
|
1 |
|
NMEA 2000® ports |
|
1 |
|
USB 2.0 ports |
|
1 (USB-C) |
|
AM/FM ports (Motorola antenna connector) |
|
1 |
|
Speaker connections |
|
4 (2 zone amplified) |
|
RCA pre-out (left, right and subwoofer – requires external amplification) |
|
4 zones |
|
Line out (requires external amplification) |
|
4 (L + R per zone) |
|
Subwoofer out (requires external amplification) |
|
4 (1 mono output per zone) |
|
|
|
|
