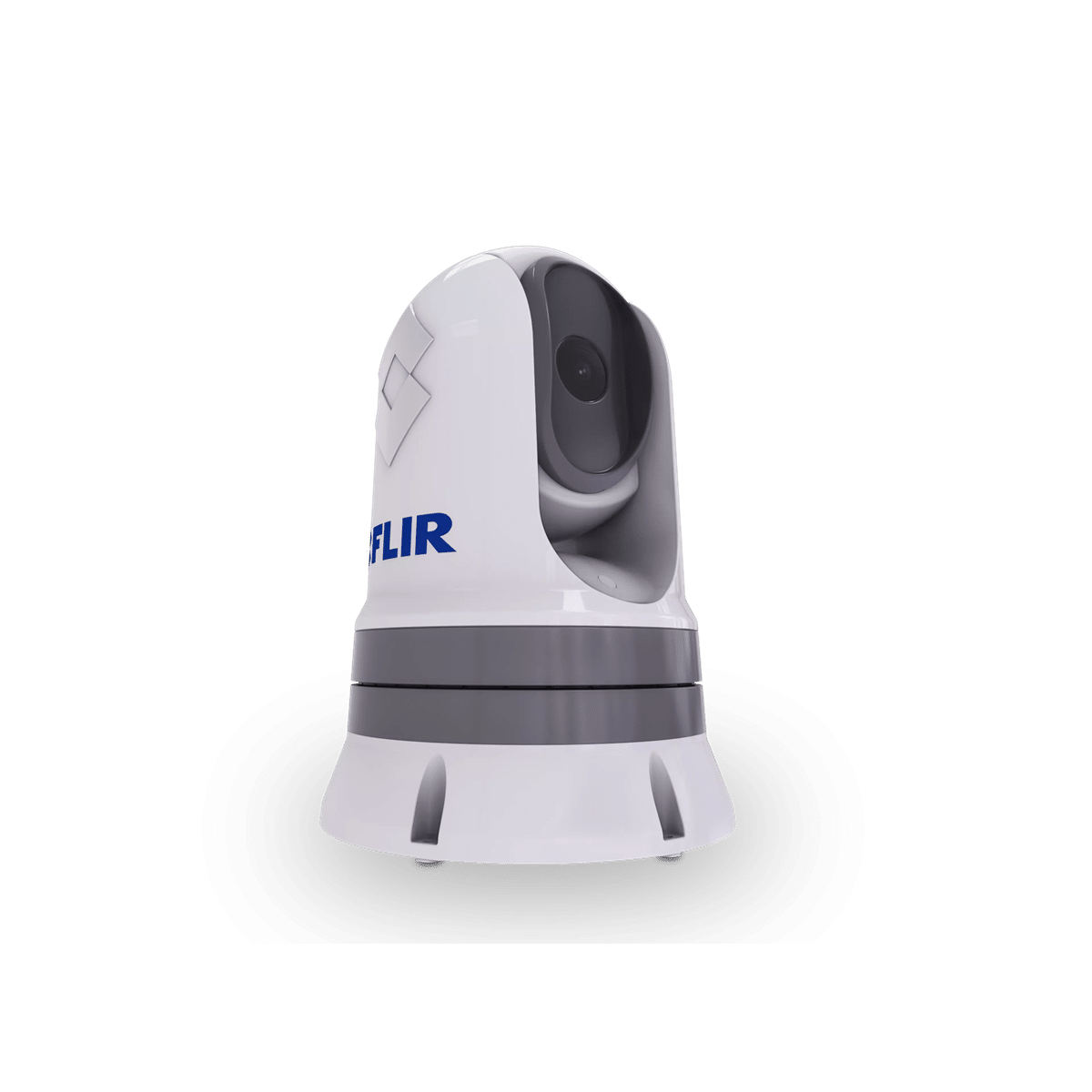

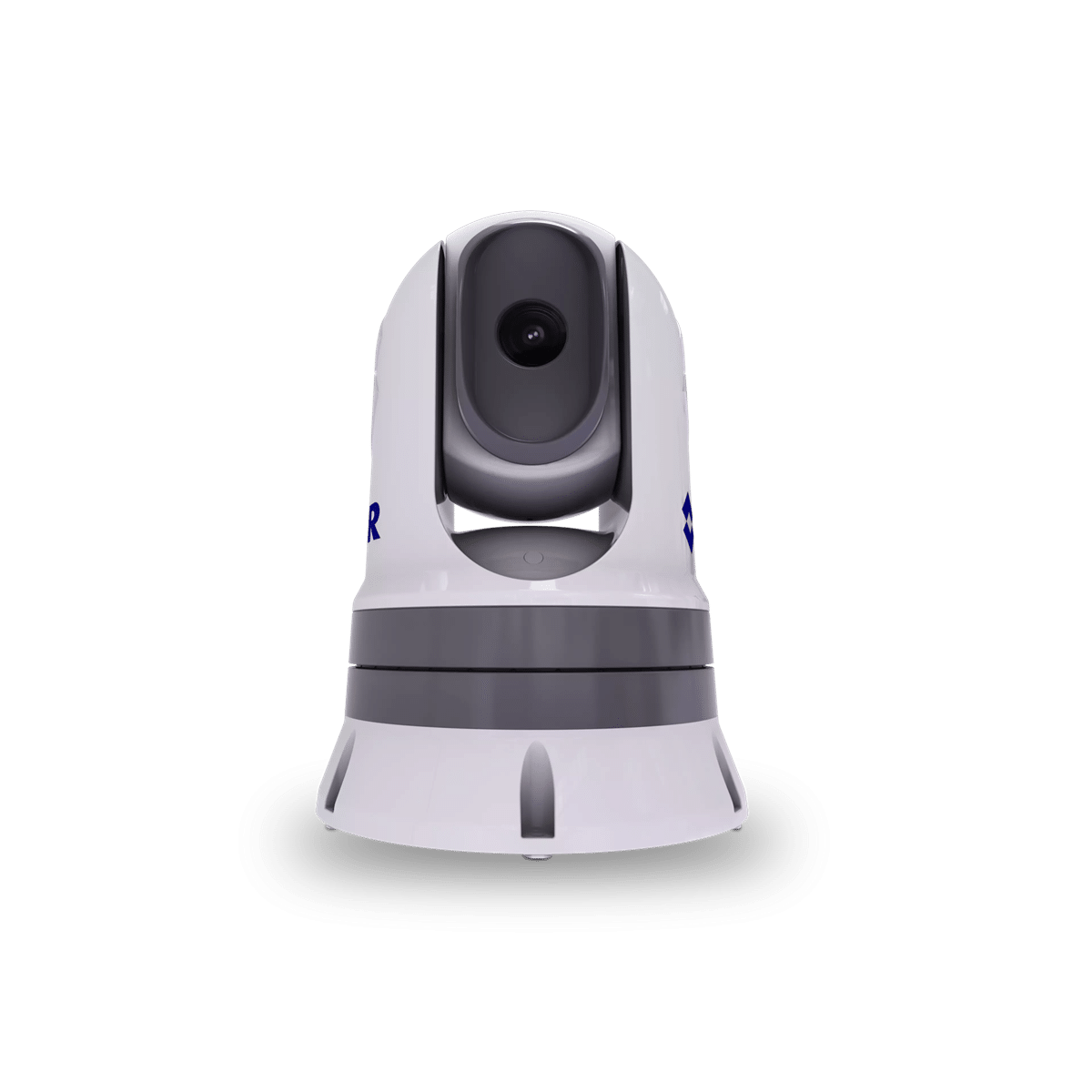

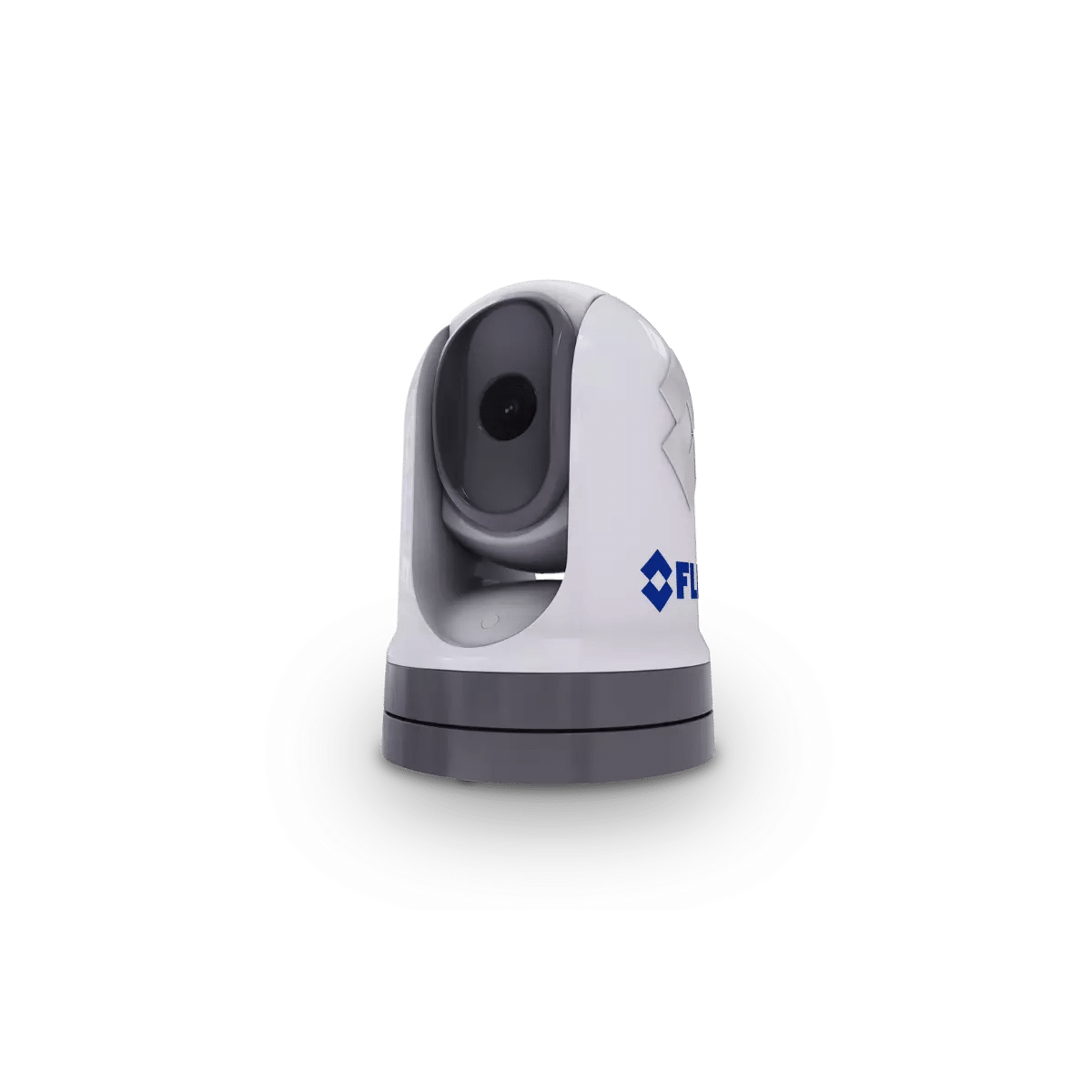

Flir M300C Ultra Low-Light Marine Camera with Pan and Tilt and 2-Axis Gyro Stabilization
The M300C combines a high-performance visible HD camera sensor with impressive 30X optical zoom capabilities, ensuring reliable target identification and heightened awareness. Its robust pan and tilt housing features 2-axis gyro stabilization, enabling effective target monitoring even in challenging sea conditions. Equipped with an advanced ultra-low light sensor, the M300C offers outstanding low light imaging, making it an ideal choice for mariners who do not need thermal night vision.
Pan and Tilt
Navigate safer and explore with 360° pan and +/-90° tilt capability. Control the M300C with your chartplotter or an optional joystick control unit.
2-Axis Stabilization
Navigate with a steady view in rough seas. Vertical stabilization compensates for vessel pitch and horizontal stabilization maintains the M300C’s field of view on a selected bearing.
High Definition
A 1920 x 1080 ultra-low light camera sensor with 30X optical zoom lets you boat into the evening and identify long distance targets.
Safe Navigation in Low Visibility Environments
Ultra-low light camera with enhanced long range target detection
- Rugged IPX6 pan and tilt housing is built to withstand the elements
- Analog video, HD-SDI, and IP video for expanded integration
- Marine Video Analytics intelligently identifies non-water objects
Effortless Camera Integration and Control
FLIR Marine camera systems enhance situational awareness and night vision across all types of vessels—from small recreational boats to large yachts and commercial ships. To maximize effectiveness, you must connect your FLIR camera to a compatible chartplotter or monitor. Fortunately, FLIR Marine cameras integrate seamlessly with leading electronic chartplotters (multifunction displays) from manufacturers such as Furuno, Garmin, Raymarine, and Simrad.
FLIR Marine cameras do more than just display thermal imaging—they offer precise pan, tilt, and zoom functionality, along with specialized settings for optimal visibility. Each electronics chartplotter brand develops its own unique control interface based on FLIR’s specifications. To make the most of your system, consult your Owner’s Manual for detailed guidance on operation and integration
|
General |
||
|
Detector Type |
1/2.8” CMOS |
|
|
Resolution |
Up to 1920 x 1080 @ 30fps |
|
|
Minimum Illumination |
Low Light Setting ON: 0.006 lux Low Light Setting OFF: 0.1 lux
|
|
|
Optical Zoom |
30x |
|
|
Digital Zoom |
12x |
|
|
Focal Length |
129 mm to 4.3 mm |
|
|
Field of View |
63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV |
|
|
System |
||
|
Gyro Stabilized |
Yes |
|
|
Marine Video Analytics (MVA) |
Yes |
|
|
Pan/Tilt Adjustment Range |
360° Continuous Pan, +/- 90° Tilt |
|
|
Analog Video Output |
NTSC/PAL User Settable |
|
|
Analog Video Connector Types |
BNC |
|
|
Network Video Output |
Two, Independent H.264/MJPEG Network Video Streams |
|
|
HD-SDI Lossless Video Output |
Yes |
|
|
Power Requirements |
12-24V DC |
|
|
Power Consumption |
41W nominal; 56W w/ heater |
|
|
ONVIF |
Profile S Conformance |
|
|
Environmental |
||
|
Operating Temperature Range |
-13°F to +131°F (-25°C to +55°C) |
|
|
Storage Temperature Range |
-22°F to +158°F (-30°C to +70°C) |
|
|
Automatic Window Defrost |
Standard at Power-Up |
|
|
Water Ingress |
IPX6 |
|
|
Shock |
15g vertical, 9g horizontal |
|
|
Vibration |
IEC60945 |
|
|
EMI |
IEC60945 |
|
|
Physical |
||
|
Weight |
Camera: 13.9lbs (6.3kg) Camera with Top-Down Riser: 14.9lbs (6.8kg)
|
|
|
Size |
Camera: 8.7” (222mm) x 12.9” (328mm) Camera with Top-Down Riser: 10.0” (254mm) x 14.4” (366mm)
|
