Description
MOB+ xFOB add more to your system

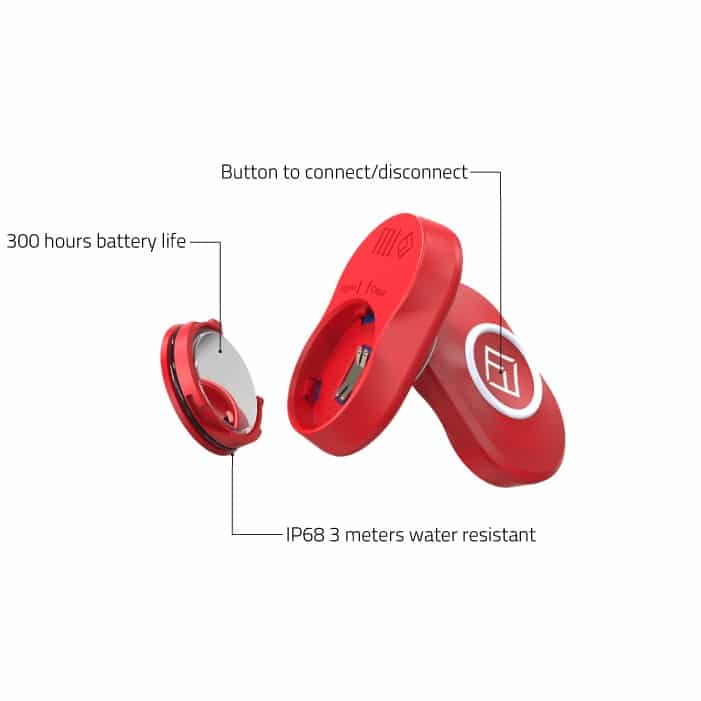

MOB+ xFOB is the heart of the MOB+ Wireless Cut-Off Switch. Such a small device, but packed with wireless technology – it is groundbreaking. The xFOB weighs in at only 10 grams and is only 1.74″ long. With the Universal Fit design, it can fit inside the xTAG, xBAND or in your pocket. The MOB+ xTAG can be worn around your neck, or attached to your life vest and garment with the standard lash tab Clip-on. With the xFOB you can virtually use the MOB+ Wireless Cut-Off Switch in any thinkable way.
Select your favorite way of using the MOB+Â Wireless Man Over-Board System, using the xBANDÂ or the xTAG option. Fell Marine made them optional for you to choose your style and comfort.
Universal Fit Design
The xFOB fits perfectly inside the xBAND and the xTAG. This unique design allows you to decide how you want to use the MOB+ Wireless Man OverBoard System.
We recognize that all boaters use their boats differently. For us this was a focal point in our design process of the product. You should choose your own boating environment. With this in mind we created the xFOB to be universal across all our accessories for the MOB+ system.
Measurements and performance
| Weight | 10grams |
| Housing material | ASA / TPU / POM |
| Temperature range | Fro -15°C to 55°C |
| Voltage Source | Coin Cell Battery – 3V nominal |
| Power consumption | 0,3 µA in sleep (0,00033 W) 30 mA in active mode (0,098W) |
| Battery life | 300 hours continous usage |
Wireless performance
| Frequency area | 915 MHz FCC (US vers.) |
| RF signal (in) | 10 dBm max. |
| RF signal (out) | 10 dBm max. |
| 4D Antenna diversity |
Battery MOB Unit
| Battery type | CR2032 |
| Battery voltage | 3V lithium battery |
Certification US version (FCC)
| Radio – MOB Unit | R&TTE, EN 300 328, Maritime/CE |
| EMC – MOB Unit | R&TTE, IEC 60945, Maritime/CE |
| ABYC A-33 compliant |
Environment
| Immersion MOB Unit | IEC 60945, IP68, Martime/CE – 3 meters water resistant |
| RoHS (2002/95/EC) compliant materiales |
Safety
| Flammability – MOB Unit | IEC 60950 1&22, Martime/CE, UL94 |
