Description
The Endurance 2500 serie s is a high quality winch engineered to provide years of trouble free operation in corrosive environments. The drum, frame, clutch, and fasteners are made from 316 S/S while the gear casing is machined from T6 aircraft grade aluminum. The drive train is a double sun gear system using six forged planetary gears providing maximum power and low noise operation. The new .8 watt motor is rated at 1.1 horsepower and is water proof to P67.
DEADLIFT 700 LBS
IDEAL FOR CORROSIVE ENVIRONMENTS
WIRED REMOTE CONTROL
MARINE GRADE 250 AMP DOUBLE ACTING SOLENOID

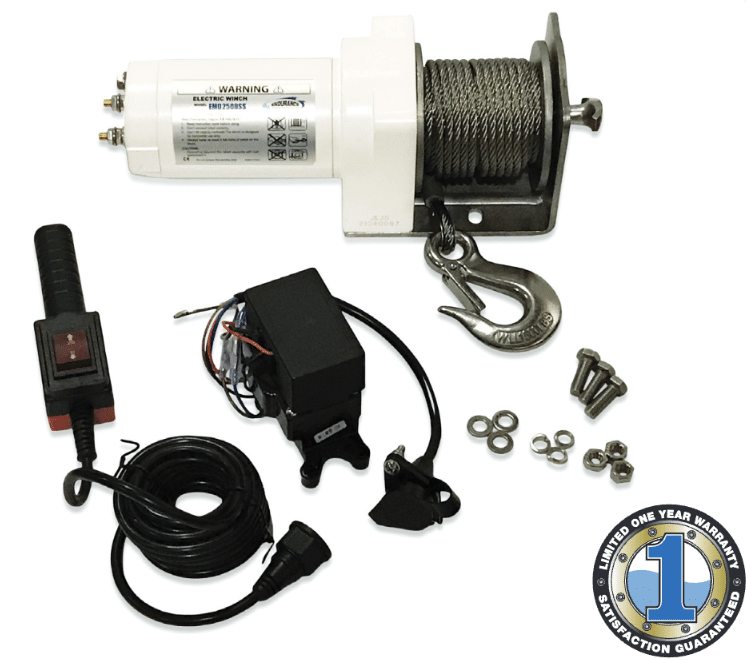

12 or 24 Volt sold complete with:
Wired Remote Control
Marine Grade 250 AMP Double Acting Solenoid
Model EMD2500SS – Complete with Cable, Remote, and Solenoid
Model EMD2500SSRP – Complete with accessories and synthetic rope
Model EMD2500SSNA – Winch Only – No accessories

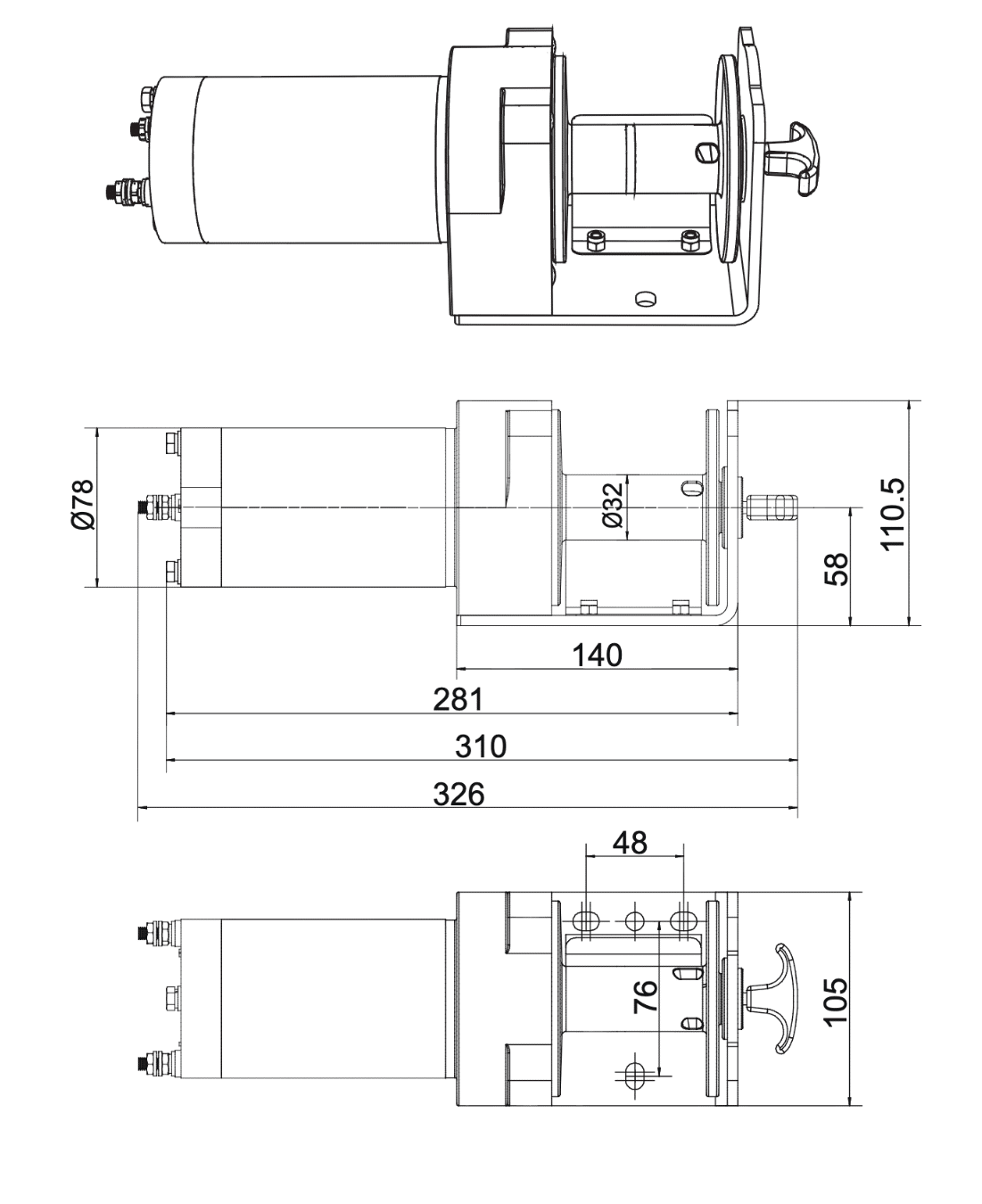

Dimensions:
5.5″ H / 5″ W / 15″ L (14 cm H x 12.7 cm x 38.1 cm)
Weight: 20 lbs / 9.07 kgs
Features:
Drum, frame, clutch, and fasteners made from 316 S/S
Gear casing made from T6 aircraft grade aluminum
Double sun gear drive train
500 lbs / 317.5 kgs dead lift capacity
Line speed 45 fpm / 13.7 m
Drum capacity: 35 ft / 10.7 m
Technical Data:
Pulling capacity: 2,500 lbs / 1,140 kgs
Motor: .8 KW / 1.1 hp
Voltage: 12V or 24V
Six forged planetary gears
Gear Ratio: 153 : 1
RPM: 40
