Description

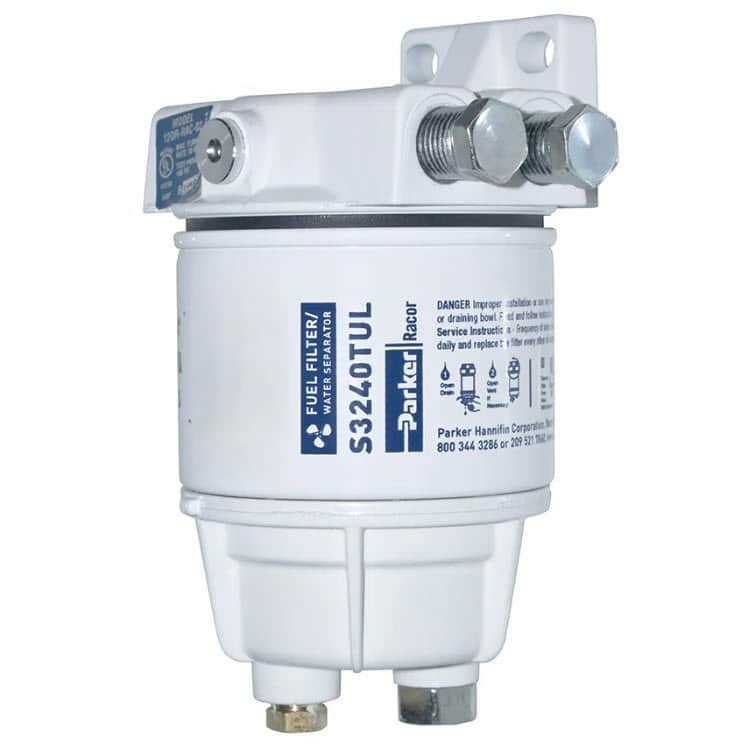

Racor 120R-RAC-02 Marine 10 Micron Gasoline Fuel Water Separator Assembly with Aluminum Bowl.
Rated for enclosed spaces
| Flow Rate: | 30 gph / 114 lph | |
| Port Size: | 1/4”-18 NPTF | |
| Micron Rating: | 98% @ 10 Micron | |
| Product Series: | Marine Spin-on FF/WS, Gasoline Spin-on | |
| UL Certification: | Yes | |
| Filtered Medium: | Gasoline | |
| Brand: | Racor | |
| Mounting Type: | Bracket Included | |
| Bowl Material: | Aluminum Bowl | |
| Clean Pressure Drop: | 0.2 psi, 1.38 kPa | |
| Integral Primer Pump: | No | |
| Compatible Element: | S3240TUL = 10 micron S3240 = 10 micron |
|
| Filter Element Type: | 10 Micron Aquabloc Spin-on | |
| Height: | 6.0 in / 15.2 cm | |
| Width: | 3.2 in / 8.1 cm | |
| Depth: | 3.2 in / 8.1 cm | |
| Weight: | 1.2 lb / 0.5 Kg | |
| Maximum Operating Pressure: | 7 psi / 48.3 kPa psi | |
| Head Material: | Power Coated Aluminium Alloy | |
| Number of Ports: | 2 Inlet / 2 Outlet | |
| Operating Temperature: | -40 to 250°F / -40 to 121°C °F | |
| Maximum Fluid Temperature: | 190°F / 88°C °F |
