Nova Kool R5810-R5812 Single Door 5.7 cu.ft. (162 liters) Refrigerator


SKU: R5810/R5812 Category:


Nova Kool R5810 is a 5.8 cu. ft. (164 liter) refrigerator & freezer unit. It comes standard with a stainless steel mounting flange/frame as well as front panel. The freezer compartment is 0.4 cu. ft. (11.3 liters).

If you do not require a freezer compartment, the R5812 model is all fridge, no freezer! Available in DC and ACDC


  • Positive latch system
  • Storage for tall bottles
  • Shelves are a powder coated zinc wire for durability
  • Order left or right door swing from factory
  • Brushed stainless steel door panel and brushed stainless steel adjustable mounting flange

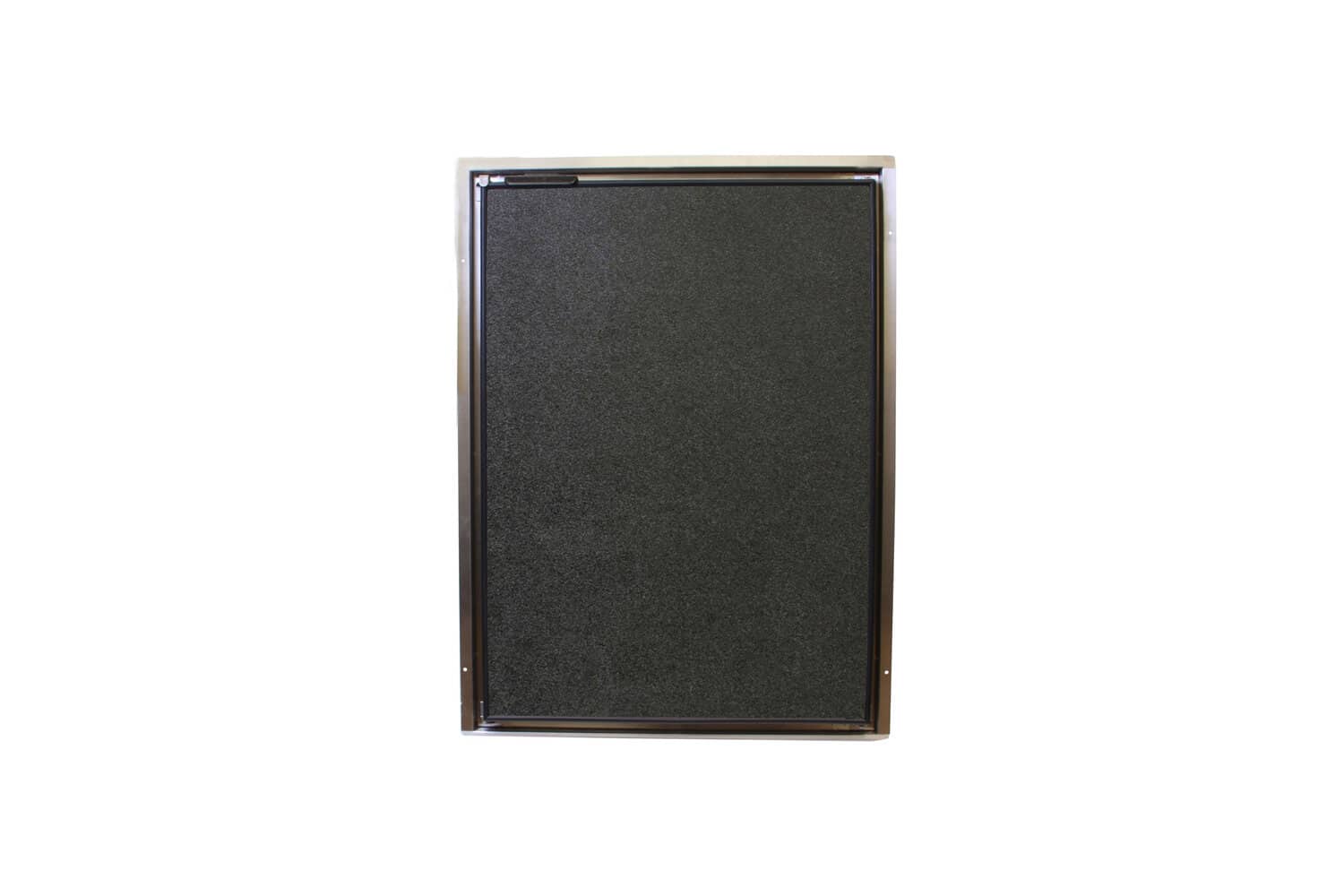

  • Replaceable door panels for a custom finish to your interior
  • Backed with Nova*Kool’s Easy 2 Year Warranty Program on all components
  • Environmentally sound 134a refrigerant
  • CFC free urethane foam in cabinet and doors
  • Magnetic door gaskets for positive seal
  • Stainless fasteners & hinges used throughout

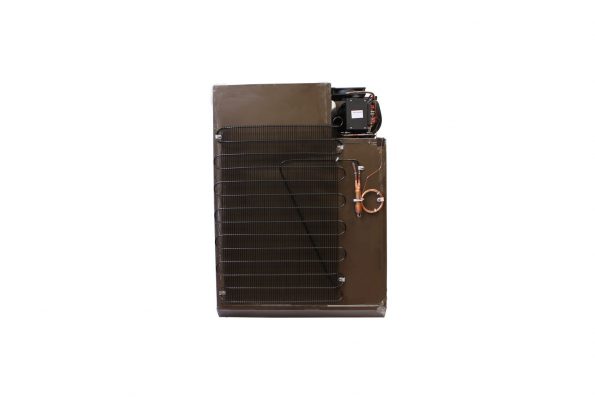

  • Maintenance friendly & efficient static condenser
  • Low battery protection to help prevent full discharge of batteries
  • Voltage option
    • DC only: 12 & 24vdc standard, optional 10-45 vdc for special applications (please contact us!)
    • AC/DC: 12 & 24 VDC and 100-240 VAC 50/60HZ

Installation Note: This fridge has an adjustable frame for depth. Remove the 12 frame screws, this will allow the frame to be adjusted in depth. With this adjustment the door will move forward to minimize depth behind flange. This allows for applications which has depth challenges. The frame has a 1/2 flange on the left and right side and a 3/16 flange on the bottom with a 1/2 flange on the top. By removing the 12 frame screws you can change the mounting flange so the top is 3/16 and the bottom is 1/2. This allows for lower counter height installations.


Additional information

Weight N/A
Dimensions N/A

R5810DC, R5810ACDC, R5812DC, R5812ACDC
