Description

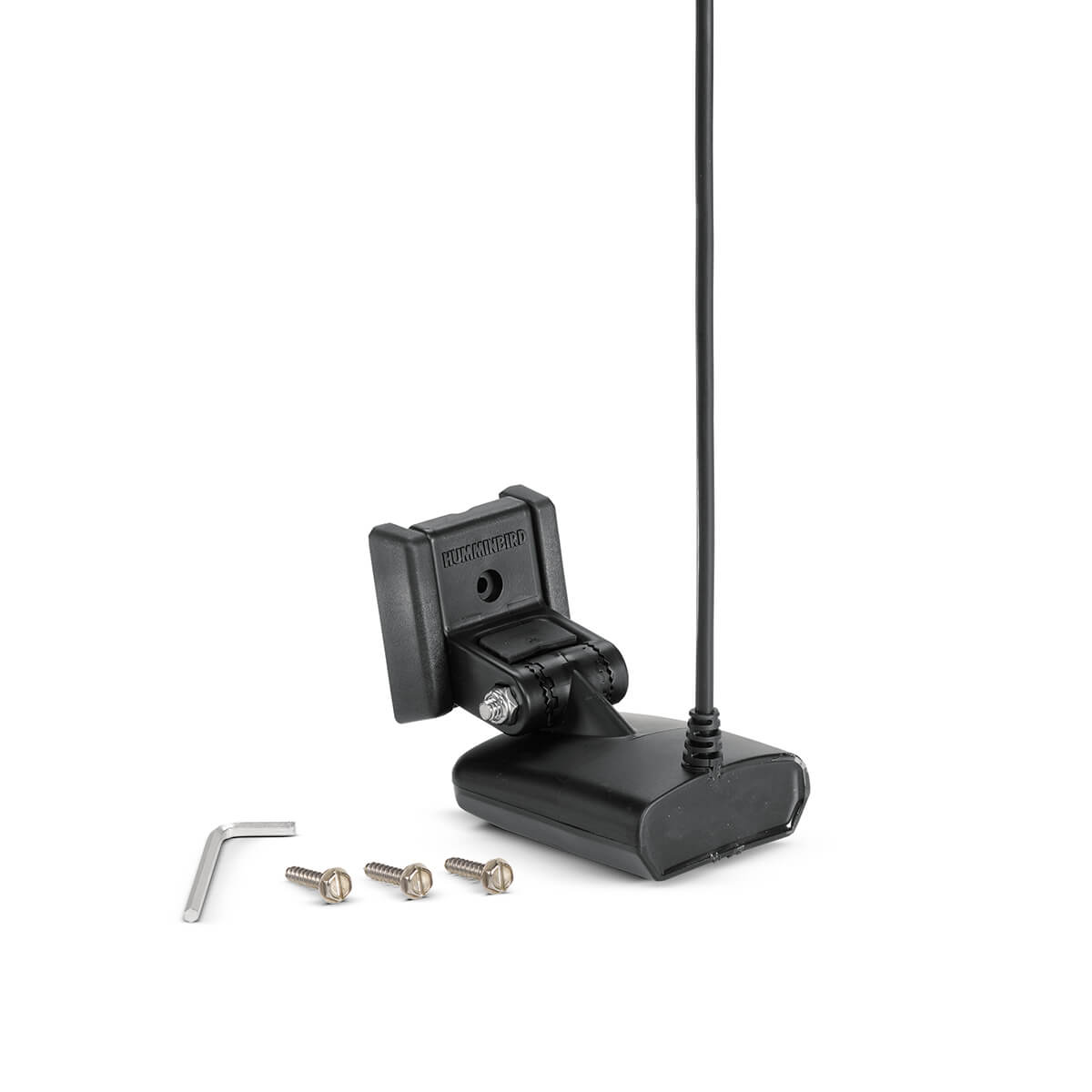

Transom Mount, MEGA Down Imaging, 455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature
Features:
- Compatible with: HELIX 7 CHIRP MEGA SI GPS G3, HELIX 7 CHIRP MEGA SI GPS G3N
- Cable Length: 20 Feet
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (146m), MEGA SI: 1075-1150 kHz – 250ft (76m)
- Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 125ft (38m), MEGA DI: 1075-1150 kHz – 75ft (23m)
- 1-Year Limited Warranty
Specifications:
| Mount Type | Transom |
| Sonar Type | MEGA Imaging, Dual Spectrum |
| Current Models | HELIX 7, HELIX 8 |
| Warranty | One-Year Warranty |
| UPC | 0082324053498 |
