Description

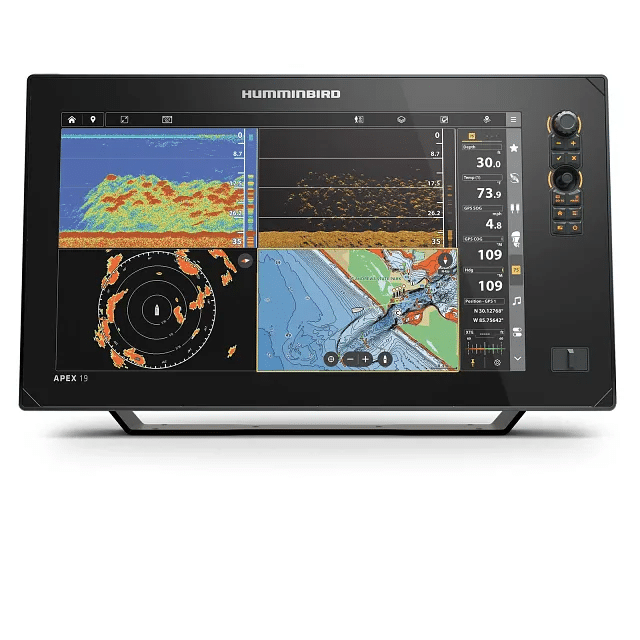

HUMMINBIRD Apex 19 MSI+ Chartplotter with LakeMaster & CoastMaster Maps
The APEX 19 MSI+ Chartplotter provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. See it all with a 18.5″ Full-HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi and Bluetooth®. Find your fishing spots faster with included LakeMaster® and CoastMaster® VX Maps. Navigate over 13,000 lakes, waterways, and coastal waters in the United States and Canada with confidence. Tools like 1-foot contours and depth and shallow water highlights help you traverse waters with certainty. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota®, and reach new depths with wireless Cannon® Optimum™ downrigger control. The APEX Series is a new kind of MFD that will take you fishing to a new level.
- Full-HD Display with Cross Touch® interface: APEX delivers eye-popping detail with a 1920H x 1080V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it’s up to you.
- Includes LakeMaster® and CoastMaster® VX Maps: Navigate over 13,000 lakes, waterways, and coastal waters in the United States and Canada safely and with confidence. Tools like 1-foot contours, depth and shallow water highlights help you traverse waters with certainty.
- Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+ and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250′ under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.
- Dual Channel CHIRP Sonar: Dual sonar ports offer connection with any Humminbird sonar options, as well as a dedicated port for 2D CHIRP transducers up to 2kW. Integrated transducer ID provides fast and simple installation of Airmar transducers.
- Customized Experience: Utilize an intuitive user interface and sidebar menu which provide customizable settings and view combinations to make your fishing experience all your own.
- Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
- Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird’s LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
- One-Boat Network® Compatible: Seamlessly integrate and communicate with Minn Kota motors and Cannon Optimum downriggers to unlock more features and capabilities for anglers everywhere. Make the most of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network®.
- Dual Ethernet Ports: Build a powerful, professional-grade fishing system with dual Ethernet ports on APEX chartplotters. Easily network products without the need for an external network hub, allowing the connection of multiple control heads and Ethernet accessories like Minn Kota Advanced GPS Motors and Humminbird CHIRP Radar.
- HDMI Compatible: See it all with independent HDMI In and HDMI Out ports on APEX. Connect and view accessory camera and video sources, as well as output to accessory displays for more viewing and rigging options.
- Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the One-Boat Network® App.
- NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
- Includes control head, Lakemaster and Coastmaster U.S./Canada VX Map Card, screen cover, transom mount transducer, mounting hardware, power cable, and gimbal mounting bracket. Product comes with 2-Year Limited Warranty.
- APEX’s low-profile design provides a sleek look at the helm when installed with the included front-mount in-dash kit.
- In-Dash Installation Note: If indash mounted, an external GPS antenna is required to ensure accurate positioning and navigation.
- Compatible with MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom (Sold Separately).
Features:
|
Model |
APEX 19 MEGA SI+ CHARTPLOTTER |
|
|
Product Code |
411240-1VX |
|
|
Series |
APEX |
|
|
UPC |
082324061653 |
|
|
Display Size – Diagonal |
18.5 in |
|
|
Length |
11.66 in | 29.62 cm |
|
|
Height |
20.27 in | 51.49 cm |
|
|
Width |
5.33 in | 13.54 cm |
|
|
Weight |
13 lb 8 oz | 6.1235 kg |
|
|
Display Pixel Matrix |
1920H x 1080V |
|
|
Transducer Included |
XM 14 HW MSI T |
|
|
Compatible With |
Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, HDMI In/Out, MEGA Live, AIS, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network, MEGA Live 2 |
|
|
Features |
Touch Screen, MEGA Live Imaging, Networking, Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging+, Wi-Fi |
|
|
Memory Card Slot |
Dual Micro SD |
|
|
Sonar-Standard |
Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+ |
|
|
Sonar-Coverage |
20°, 42°, 60° & (2) 86° @ -10dB |
|
|
Sonar-Optional |
50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low |
|
|
CHIRP – Frequencies Supported |
Narrow Mode (180-240 kHz), Optional Deepwater (28-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz) |
|
|
Sonar-Frequencies Supported |
50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA |
|
|
Depth-Sonar |
3,500 ft (optional Airmar CHIRP), 1,200 ft (standard transducer) |
|
|
CHIRP – Imaging Frequencies Supported |
MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), MEGA SI+ (1050-1175 kHz), 455 kHz DI+ (420-520 kHz) |
|
|
Depth-Down Imaging |
250 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz) |
|
|
Range-Side Imaging (Side-To-Side) |
800 ft (455 kHz), 500 ft (MEGA), 250 ft (800 kHz) |
|
|
Interface |
Touch Screen |
|
|
Power Draw |
4.4 Amps |
|
|
Power Input |
10.8-20 VDC |
|
|
Power Output Peak-to-Peak |
8000 Watts |
|
|
Power Output RMS |
1000 Watts |
|
|
Screen Snap Shot |
Included |
|
|
Sonar Recording |
Included |
|
|
Mount-Standard |
Gimbal |
|
|
Mount-Standard Size |
20.27 in W x 12.58 in H x 4.95 in D |
|
|
Mount-Optional |
In-Dash Mounting Kit |
|
|
Mount-Optional Size |
20.27 in W x 11.66 in H x 0.51 in D |
|
|
Transducer Mount Location |
Transom |
|
|
GPS Chartplotting |
Included |
|
|
GPS Receiver |
Internal |
|
|
GPS Trackplotting |
Included |
|
|
Waypoints, Routes, Tracks/Points |
10,000, 50, 50/20,000 |
|
|
360 Imaging Compatibility |
Yes |
|
|
MEGA Live Compatibility |
Yes |
|
|
Humminbird Basemap |
Included |
|
|
LakeMaster Compatibility |
Yes |
|
|
CoastMaster Compatibility |
Yes |
|
|
Navionics Gold/HotMaps Compatibility |
Yes |
|
|
Navionics Platinum+ Compatibility |
Yes |
|
|
Platinum Compatibility |
Yes |
|
|
Minn Kota Advanced GPS Navigation Compatibility |
Yes |
|
|
Minn Kota i-Pilot Link Compatibility |
Yes |
|
|
Minn Kota Talon Shallow Water Anchor Compatibility |
Yes |
|
|
Radar Compatibility |
Yes |
|
|
5-Port Ethernet Switch Compatibility |
Yes |
|
|
AIS Compatibility |
Optional |
|
|
Autopilot Compatibility |
Yes |
|
|
Heading Sensor GPS Compatibility |
Yes |
|
|
Heading Sensor GPS (NMEA 2000) Compatibility |
Yes |
|
|
NMEA2000 |
Included |
|
|
Target Separation |
2.5 in |
|
|
Upgradable Software |
Yes |
|
|
View Preset Keys |
Yes |
|
|
X-Press Menu System |
No |
|
|
Custom Digital Readout |
Yes |
|
|
Custom View Selections |
Yes |
|
|
Display Colors Grayscale |
16-Bit |
|
|
Display Type |
Color TFT |
|
|
Speed |
Included |
|
|
Temperature |
Built In |
|
|
Temperature Alarm |
Yes |
|
|
Temperature Graph |
Yes |
|
|
HDMI Compatible |
Yes |
|
|
Warranty |
Two-Year Warranty |
