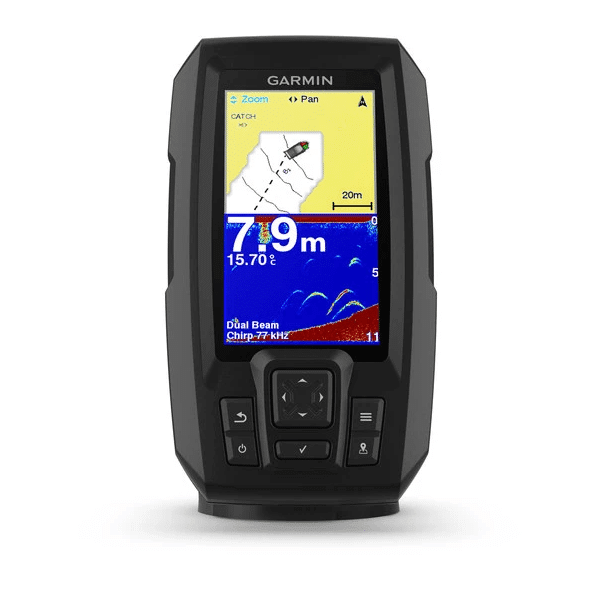

Garmin STRIKER Plus 4 Dual-Beam Transducer Fishfinder


SKU: 010-01870-01 Category: GTIN: 753759184162


The STRIKER Plus 4 fishfinder with a bright 4.3” display and built-in GPS features CHIRP sonar for crystal-clear images and Quickdraw Contours map drawing software, which stores up to 2 million acres of content with 1’ contours. The built-in GPS lets you mark and navigate to waypoints and shows your boat’s speed.

Physical & Performance

Display resolution 272 X 480 pixels
Dimension 3.9” x 6.9” x 1.8” (9.8 x 17.4 x 4.5 cm)
Waterproof IPX7
Weight 0.7 lbs (0.3 kg)
Display Type QSVGA


Fish Symbol ID (helps identify fish targets) Yes
Transmit power 200 W (RMS)
Water Temperature Log Yes
Autogain technology (minimizes clutter; maximizes targets) Yes
  • One 4-pin transducer port
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.23A
Water temperature sensor included Yes
Split-screen zoom Yes
A-scope (real time display of fish passing through transducer beam) Yes
Adjustable depth line (measures depth of underwater objects) Yes
Bottom Lock (shows return from the bottom up) Yes


Additional information

Weight 2 kg
Dimensions 30 × 15 × 15 cm
