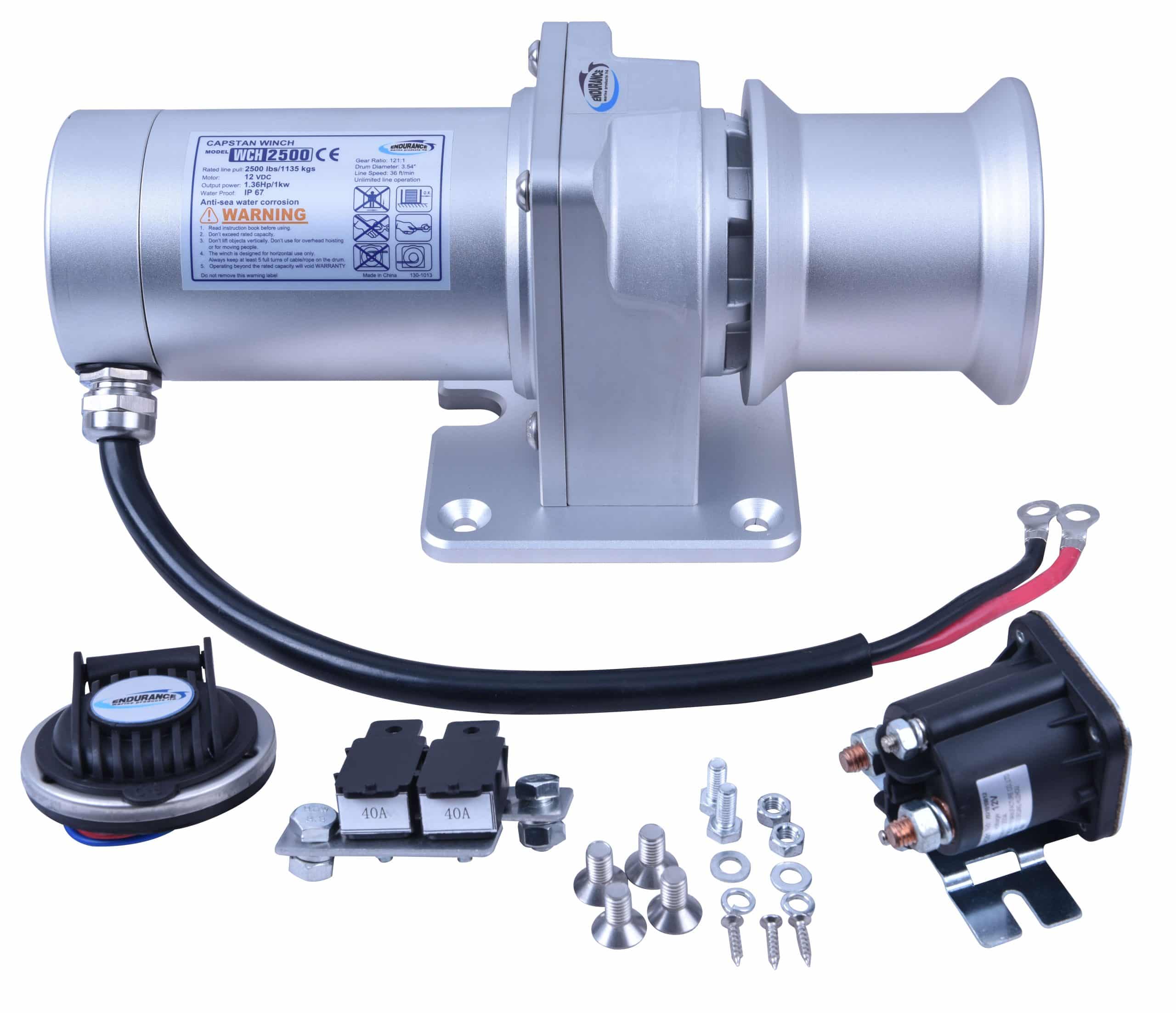

Endurance Marine Capstan Winch-Machined Aluminum

$999.95

3 in stock (can be backordered)

SKU: WCH2500 Category: GTIN: 846078052547

Description

The new WCH 2500 Series Power Capstan Winch is totally machined out of billets of 5083 aircraft aluminum which will be completely corrosion proof delivers 2.3 horsepower with a heavy lifting capacity of 700 lbs. Driving a new dual planetary gear system, our new power capstan winch also features dual oversized shaft bearings

to ensure maximum shaft strength and zero run out. Utilizing the same mounting plate configuration as Endurance’s 600, 800 and 1000 series, the 2500 series is the perfect work horse for anchor retrieval or for pulling pots. The 2500 Series Power Capstan Winch is the strongest affordable compact capstan winch on the market today.

  • 700 Lb Lifting CAPACITY
  • 2500 Lb Pulling Power
  • 12 VOLTS
  • 2.3 HP
  • 121:1 GEAR RATIO
  • 40 RPM
  • 45 LINE SPEED FT\MIN
  • Unlimited ROPE / CABLE
  • 20 NET WT (lb) 1
  • 13″ L x 6″ H x 6″ W DIMS
  • Whats Included: heavy duty 12V solenoid/deck switch with cover plate / 80 amp circuit breaker

Additional information

Weight5 kg
Dimensions30 × 20 × 20 cm
