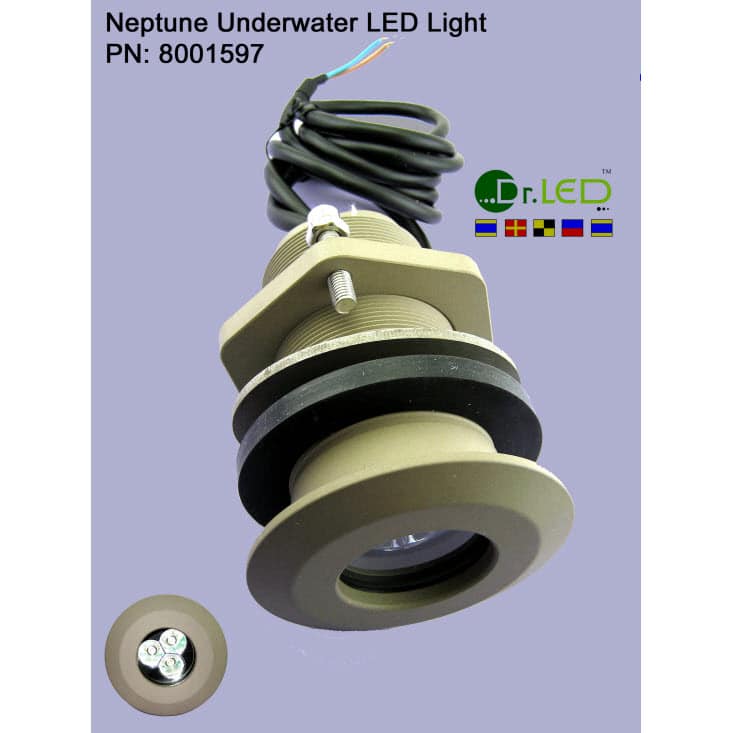

Dr. LED Through-Hull Mounted Underwater LED Light


SKU: Neptune Category:


The Neptune is a general purpose through-hull mounted LED light with three US made high-flux LEDs. This light is fabricated from the highest quality components to assure long life and trouble-free functioning. The aerospace-grade anodized aluminum composite body makes it extremely corrosion proof and the surface as hard as steel.

Their patented internal circuitry provides consistent brightness and makes them immune to life-shortening voltage fluctuations. Their incredibly low power draw (~1A @ 12V) makes them the perfect way to reduce energy consumption.

Neptune: dr led underwater lights


  • Three state-of-the-art 3W, US made, high-quality, high-flux LEDs.
  • High-intensity white LED light travels farther underwater for maximum visibility and truer colors.
  • Aerospace-grade anodized aluminum composite body.
  • No anodes required, as housing is corrosion proof.
  • Multi-voltage 12VDC or 24VDC.
  • Can be operated out of water.
  • Compact design.
  • Serviceable from inside the boat, if needed.
  • Instant on, no warm-up of bulb needed.
  • Long service life.
  • Not hot, warm to the touch.
  • Shockproof, ultra-rugged with no filament to burn out or break.
  • Other light output colors available on special orders.


  • Input Voltage: 10-28 VDC or 12VAC
  • Current Draw: ~1A @ 12V, ~0.5A @ 24V
  • Light Output: ~500 lumens
  • Color Temperature: ~6000 K
  • Lens Material: 12mm tempered glass
  • Fixture Material: aerospace-grade anodized aluminum composite
  • Mechanical Connection: Requires one 70mm (2 13/16″) dia. hole
  • Electrical Connection: 2M (6.6′) long 9.5mm dia. rubber sheathed outdoor 245 IEC 57 cable (20AWG 300V 80C multi-stranded copper conductors)
  • Weight: ~ 1.3 kg (2.8 lb)

Additional information


8001597 White, 8001603 Blue, 8001689 Green
