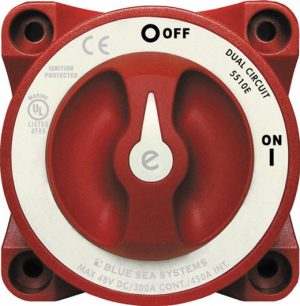

Description
Simultaneously switches two isolated battery banks
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
| Specifications | |
|---|---|
|
Switch Type |
Dual Circuit |
|
Color |
Red |
|
Switch Positions |
2 |
|
Battery Combine |
No |
|
Alternator Field Disconnect |
No |
|
Maximum Voltage |
32V DC |
|
Terminal Stud Torque |
140 in-lb (15.82 Nm) |
|
Continuous Rating |
350A |
|
Intermittent Rating |
525A (5 min) |
|
Cranking Rating 30 sec |
700A per circuit |
|
Battery Inputs |
2 |
|
Cable Clearance For 4/0 AWG Cables |
1.10in (27.94 mm) |
|
Cable Size to Meet Ratings |
4/0 AWG (120mm²) |
|
Mounting Holes |
Accept 1/4″ (M6) Screw |
|
Terminal Stud Size |
3/8″ – 16 (M10) |
|
Weight |
1.30lb (0.59 kg) |
Brand: Blue Sea Systems
