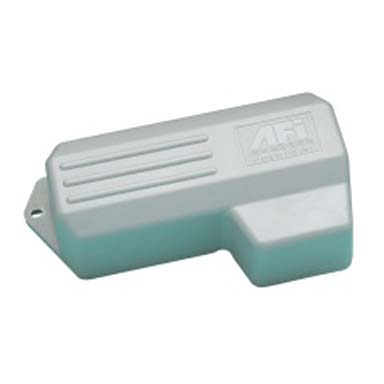

AFI 37180 Wiper Motor Waterproof 80° Sweep 2-1/2″ Shaft

$259.95

SKU: 37110 Category:

Description

  • Powers 18″ (@ 80 sweep or less) & 16″ (@ 110 sweep or less)
  • Factory pre-set sweep of 80° adjustable to 50°, 65°, 80°, or 110°
  • .625″ diameter shaft (16mm)
  • Fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic
  • 12 volt heavy-duty motor with anti-rotation drive shaft
  • Knurled drive shaft and solid brass arm drive nut
  • Coast to park with adjustable right or left self park
  • Includes 5 amp fuse and holder (on / off switch not included)
  • RF shielded circuitry
  • Weight: 1.75 lbs
  • Dimensions: 6.625″ x 3.375″ x 2″
  • Stall Torque: 55 in-lbs (63 kgf/cm; 6.2Nm)
  • Stall Current: 9.8 – 10.0 amps
  • No load current: 0.8 – 1.2 amps

Additional information

Weight2.5 kg
Dimensions23 × 12 × 10 cm
