Description

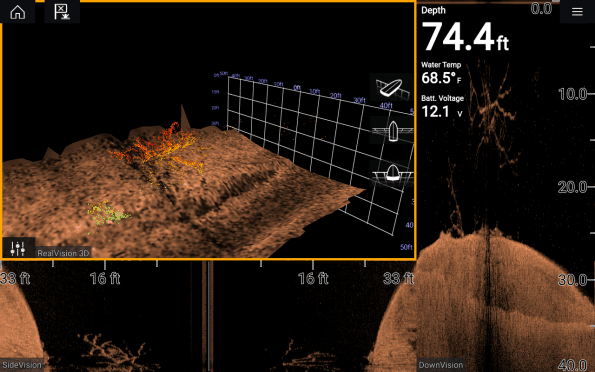

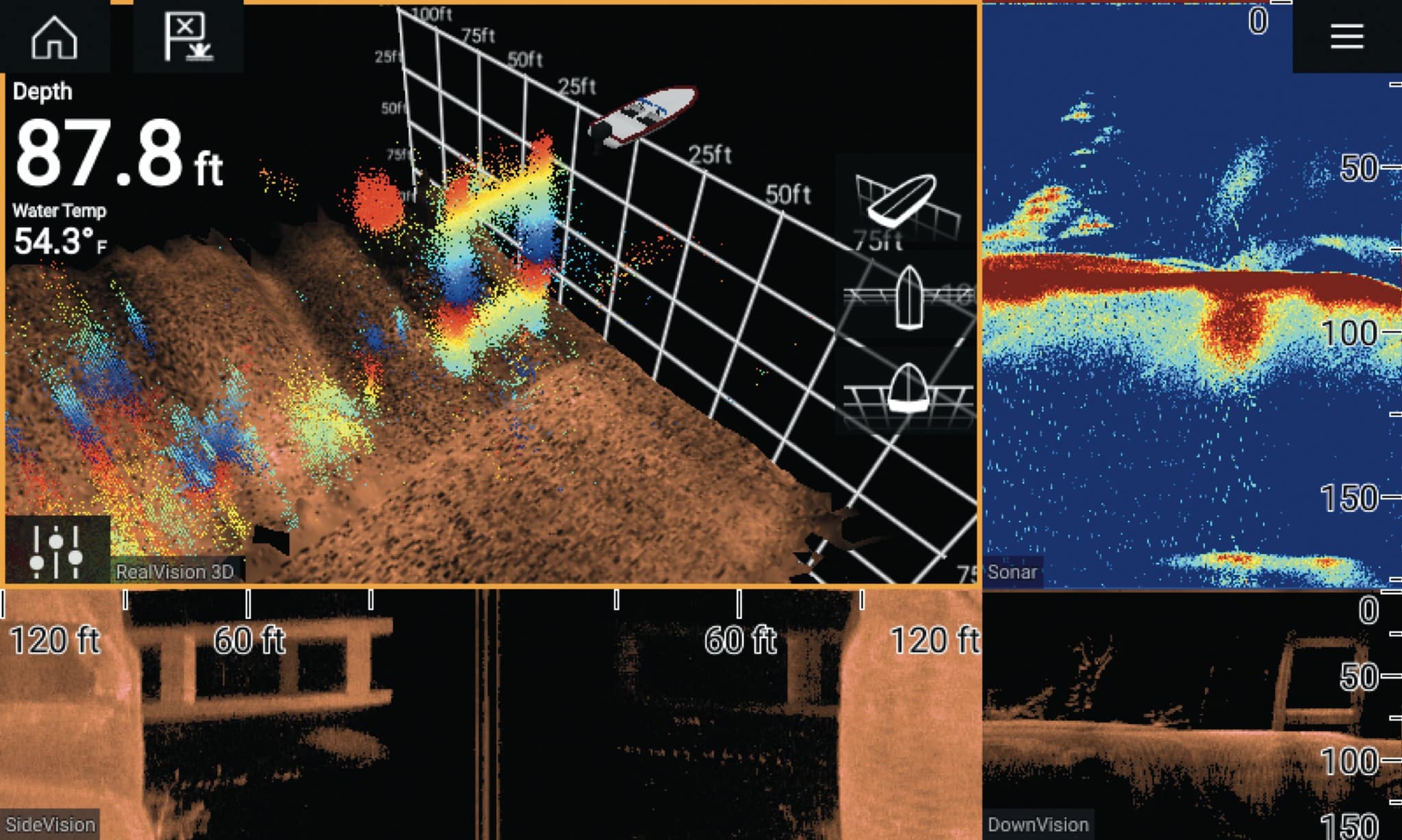

Axiom Pro 16 RVX is engineered for captains that want it all. Available with RealVision 3D, 1kW CHIRP sonar, and Raymarine Hybrid Touch control, Axiom Pro is the new standard for “all-in-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-definition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.
With RealVision 3D, 1kW CHIRP sonar, and Raymarine HybridTouch control, Axiom Pro is the new standard for “all-in-one” displays. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience.
GENERAL SPECIFICATIONS
|
Display Size |
15.6″ IPS Optically Bonded LCD |
|
Display Resolution |
1920 x 1080 FHD |
|
Display Type |
Multitouch |
|
Brightness |
1,200 nits |
|
Viewing Angle |
Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) |
PHYSICAL
|
Dimensions |
17.6″ x 10.2″ x2.72″ (447 x 258 x 69 mm) |
|
Weight |
10.9kg (24.03lbs) |
|
Mounting |
Top, Front, and optional RAM ball mount adapter |
|
Waterproof Rating |
IPX6 / IPX7 |
|
Operating Temp |
minus 13deg F to 131deg F (-25deg C to +55deg C) |
|
Storage Temp |
minus 22deg F to 158deg F (-30deg C to +70deg C) |
|
POWER |
|
|
Voltage |
12V and 24V DC (8 V to 32 DC) |
|
Power Consumption (Full brightness) |
Axiom Pro 16: ~45W |
SENSORS & PERIPHERALS
|
SENSORS |
|
|
GNSS / GPS |
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou – 10Hz 72 Channel | External Accessory: GA150 (A80288) |
|
Sonar Type – Built-in |
Pro RVX model – RealVision 3D + 1kW Sonar |
|
Sonar Connections |
S variant*= 25pin connector used only with CPT-S transducers RVX variant = 25pin RealVision™ type connector + 11 pin 1kW type connector *Pro S can only be used with CPT-S transducers. Requires A80490 adaptor cable. External Sonar – RayNet |
|
Sonar Depth |
CHIRP Sonar = 900 feet (274 m) DownVision™ = 600 feet (183 m) | SideVision™ = 300 feet (91 m) | RealVision™ 3D = 300 feet (91 m) 1kW = 5,000 feet (1,500 m) |
|
External Sonar |
Yes – CP100, CP200, CP370, CP470, CP570 via RayNet |
|
Radar |
Yes – Quantum, Digital, HD Color and Super HD Color Radars |
|
AIS |
Yes – N2K compatible |
|
Autopilot Control |
Yes – Evolution Autopilot |
|
Thermal Night Vision |
Yes – IP or Analogue |
|
Video / Camera |
1 x Analogue input (BNC) Up to 10 IP Cameras |
|
Weather |
GRIB View – Free GRIB viewer and Theyr Ltd Subscription | SiriusXM – N. America Only [Weather features available in future Lighthouse 3 software update] |
|
Audio |
N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
|
Digital Switching |
Yes – Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] |
|
Remote Control |
RMK-10 (A80438) & RCU-3 (E62351) |
NETWORKING
|
Ethernet |
2 x 10/100 Mbit/s Network (RayNet) |
|
NMEA0183 |
1 Transmit / 2 Receive |
|
NMEA2000 |
1 x NMEA2000 port (DeviceNet microC) |
|
SeaTalkNG |
Requires DeviceNet Female (F) adaptor cable (A06075 1m adaptor included in box) |
|
USB |
1 x USB microAB (rear – charging, external storage device or RCR-SD/USB Accessory (A80440) |
|
Wi-Fi |
WiFi – 802.11 a / b / g / n |
|
BlueTooth |
Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] |
OTHER SPECIFICATIONS
|
NAVIGATION |
|
|
Cartography |
Navionics |
|
Waypoint/Routes/Tracks (Wpts/Rts/Trk) |
10,000 wpts / 200 wpt groups / 150 rts – 250 wpt max / 16 tracks – 10,000 max trk pts |
|
MEMORY |
|
|
Internal |
16GB Solid State |
|
External |
2 x microSD slots (front) – microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
|
OTHER |
|
|
Languages |
24 |
|
Conformances |
NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 |
