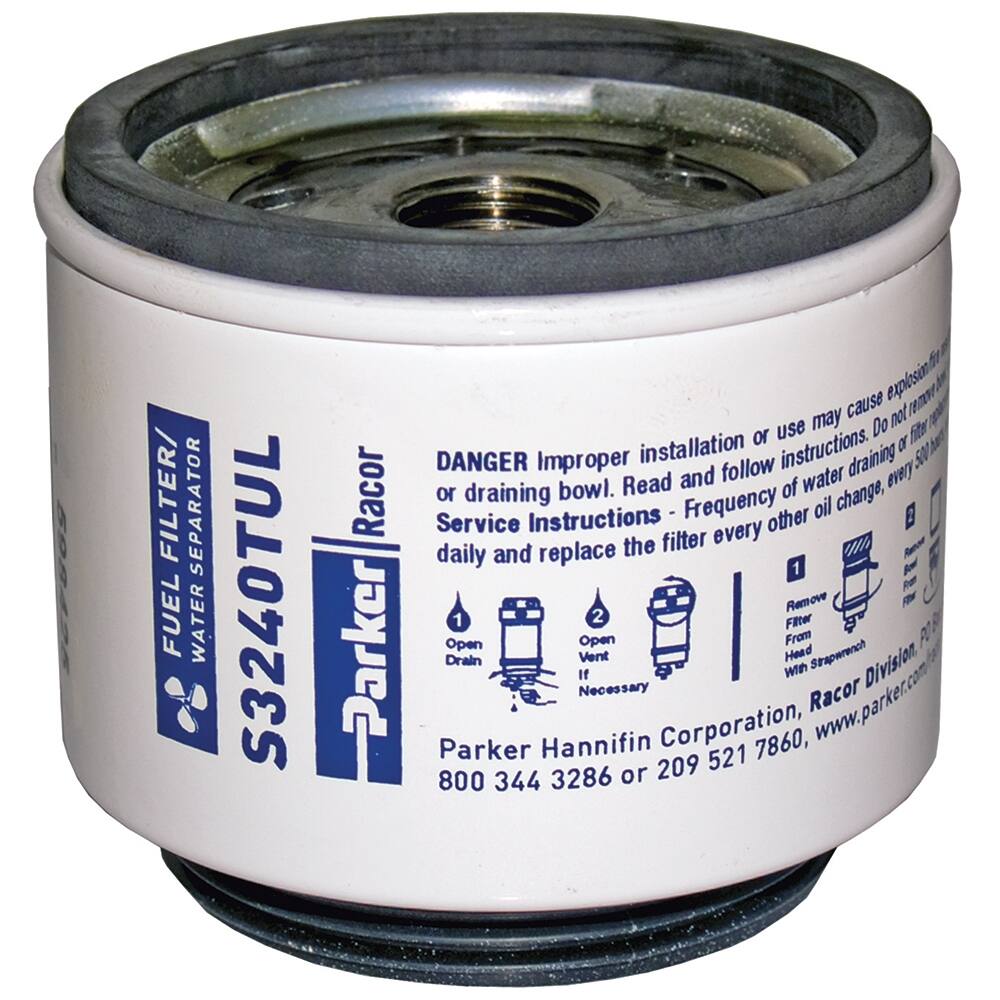

Racor S3240TUL Fuel Filter / Water Separator Element 120R-RAC-01/02 Series


SKU: S3240TUL Category:


All Spin-on Series marine replacement cartridge filter elements utilize Racor’s high-efficiency Aquabloc engineered media.
Aquabloc is a blend of high-grade cellulose compounded with resins and a special chemical treatment. It incorporates pleat-spacing corrugations and a graduated pore structure to increase dirt-holding capacity and extend filter life. The media is waterproof and rust-proof, capturing contaminants while the specially treated surface separates and coalesces water from the fuel, which causes the water to gather into large droplets that then fall into the fuel filter’s collection bowl.

Aquabloc elements repel water and remove solid contaminants from fuel at 98% efficiency of their micron rating. To meet the unique requirements of customers’ engines.

10 micron (98%@10 micron) – Captures more contaminants than 30 micron elements, and is more effective at stopping water. Extends the life of the entire fuel system.

SERIES TYPE Marine Gasoline Spin-on FF/WS
Brand Racor
Element Type 10 Micron Aquabloc® Spin-on
Thread M18 x 1.5
Connection Type 2.4″ Male Bottom Threads
Flow Direction Outside In
Part Number S3240TUL
Micron Rating 98% @ 10 Micron
UL Certification Yes
Height 2.5 in / 64 mm
Outside Diameter 3.0 in / 76 mm
Related Parts Metal Bowl: RK10553
Series 120R-RAC-01/02


Additional information

Weight .4 kg
Dimensions 10 × 10 × 10 cm
