Description

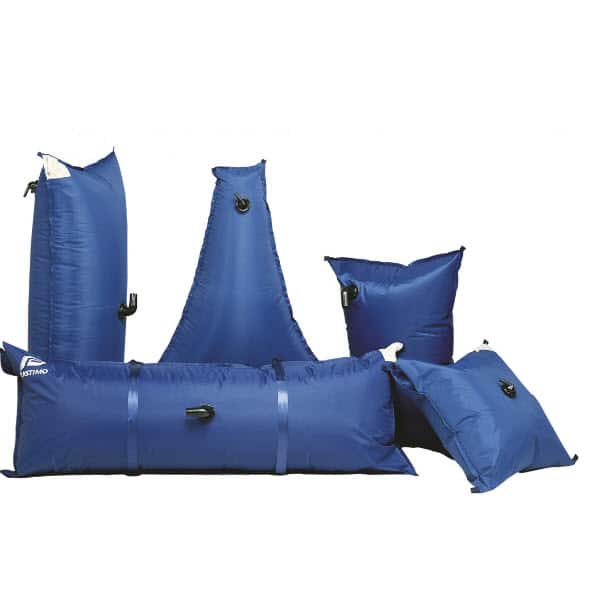

Plastimo flexible water tanks : a reliable, practical and low cost solution to the storage of fresh water on board. They are flexible, light and form-fitting, and can therefore be installed where it would not be possible to install a rigid water tank, due to the shape of the boat or difficult access.
Tested and patented : a water chamber inside a tough envelope.
The Plastimo water tanks consist of a welded non-porous tasteless PVC water chamber (inner bladder) inside a tough nylon envelope, for complete watertightness and resistance to tearing and abrasion.
The double envelope principle (food-compatible PVC water chamber) makes maintenance easy : the inner chamber can be easily removed from the outer envelope for routine cleaning and examination.

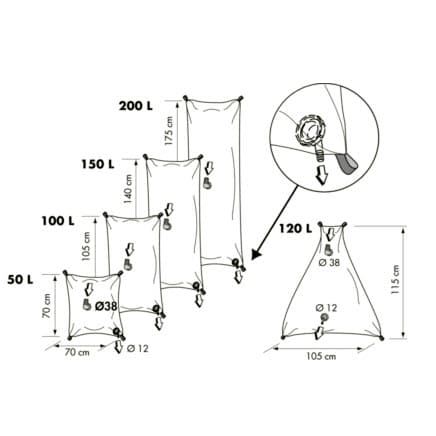

Water tanks are supplied complete, ready to install, with Ø 38 mm (1-1/2″) inlet fitting and Ø 12 mm (1/2″) outlet valves.
- Ø 38 mm (1-1/2”) inlet valve is situated on upper side of tank
- Ø 12 mm(1/2”) outlet valve is situated on underneath side of tank (except on triangular model : inlet and outlet are both on upper side of tank).
- Height of tanks, when filled to capacity : 25 cm.( 9’-10”)
| Model | Shape of tank | Capacity |
|---|---|---|
|
18031 |
Square |
50 L |
|
18033 |
Rectangular |
100 L |
|
16656 |
Rectangular |
150 L |
|
16657 |
Rectangular |
200 L |
|
16658 |
Triangular (Ideal for front cabin) |
120 L |
