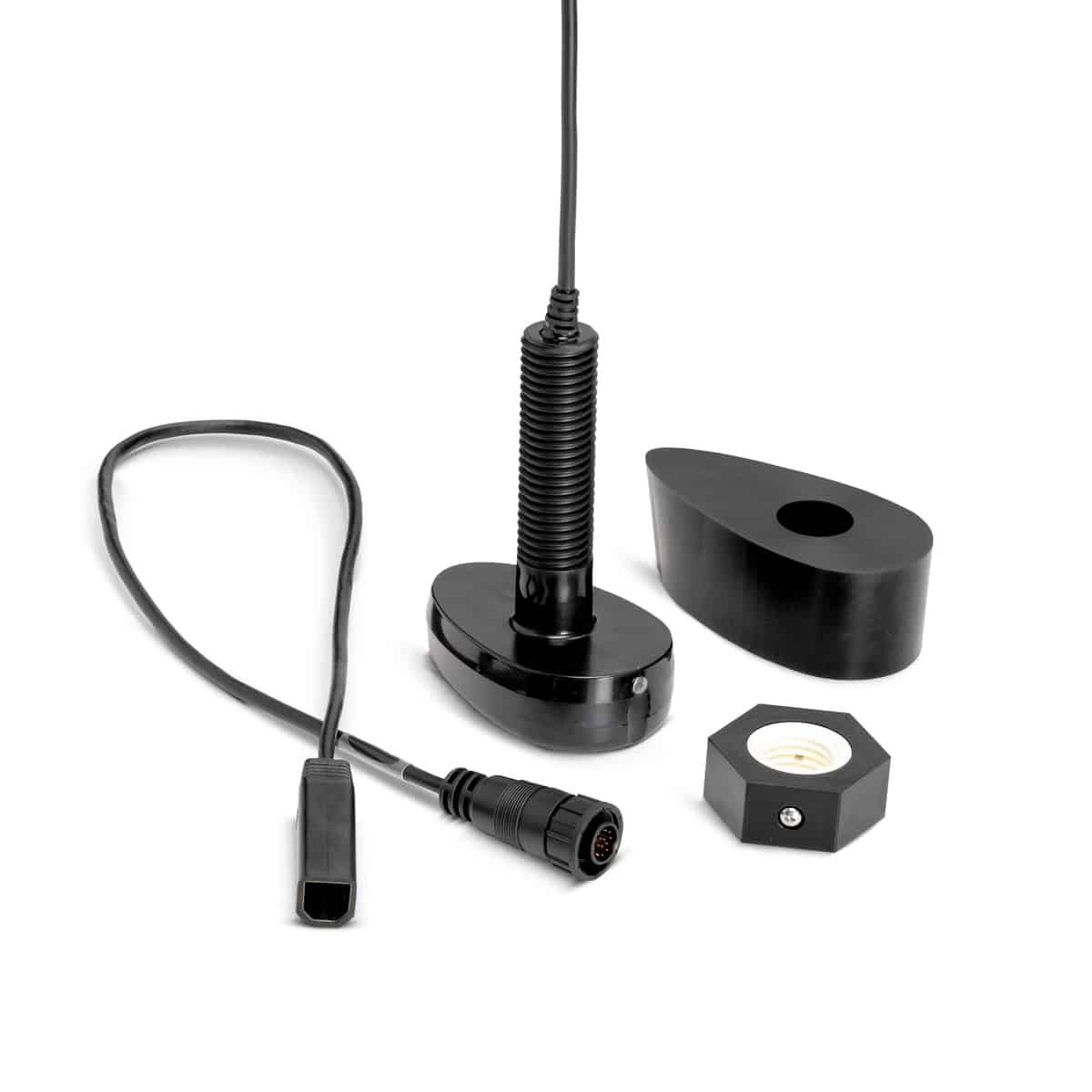

HUMMINBIRD XPTH 14 HW T SOLIX Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer


SKU: 710289-1 Category:


Plastic Thru-Hull, Transducer supports Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor


  • Compatible with: All SOLIX 10, 12, 15

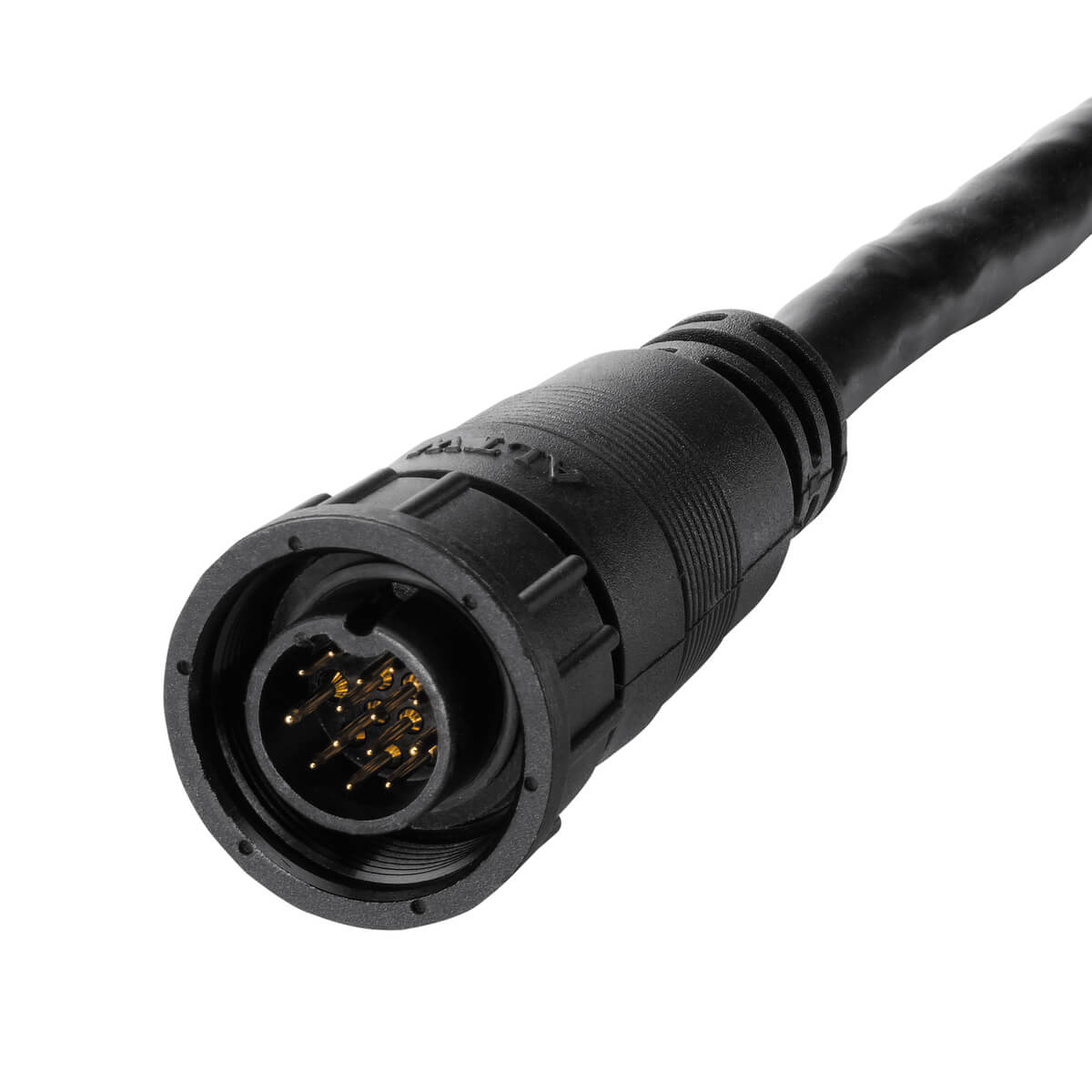

  • Cable Length: 30 Feet
  • Side Imaging and Down Imaging units can support the XP 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • DUAL Spectrum CHIRP Max Depth: 1200ft (365m)
  • Dimensions: L 4.0″ x W 2.5″ x D 1.2″ – Stem Length 4″, Stem Diameter 1″
  • 1-Year Limited Warranty


Mount Type Thru-Hull
Sonar Type MEGA Imaging, Dual Spectrum
Current Models SOLIX 10, SOLIX 12, SOLIX 15
Warranty One-Year Warranty
UPC 0082324053160
