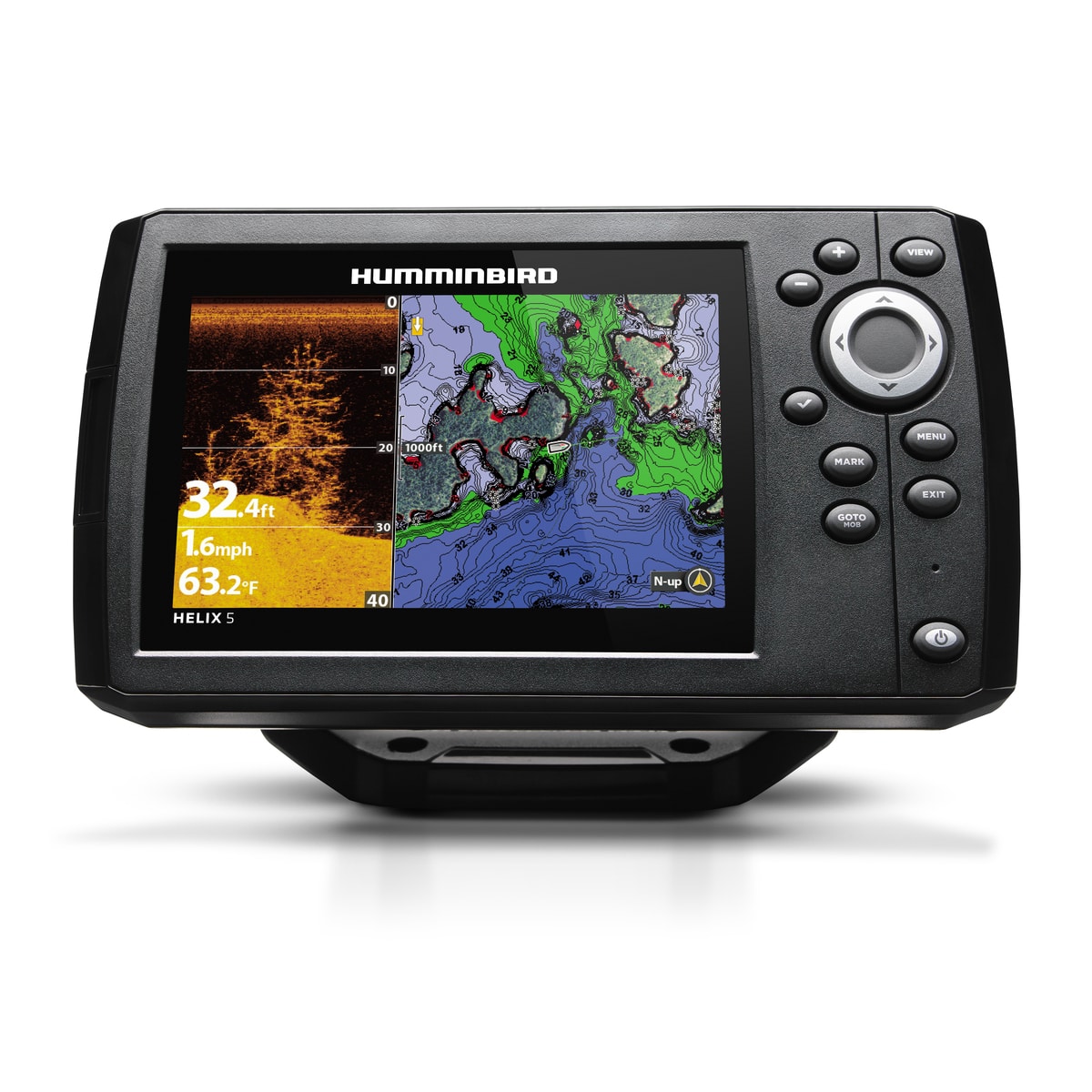

Humminbird Helix 5 CHIRP DI GPS G2 with Down Imaging Sonar

$489.25

Available on backorder

SKU: 410220-1M Categories: ,

Description

If fishing is in your DNA, there’s no such thing as “too early” or “too far.” High expectations go with the territory. The HELIX 5 Series answers the call with an uncompromising, 5″ widescreen display. This HELIX 5 CHIRP DI GPS G2 model features CHIRP Digital Sonar, CHIRP Down Imaging, GPS mapping, AutoChart Live, the new Humminbird basemap, DualBeam PLUS and SwitchFire.

  • CHIRP Down Imaging: Filter out noise and clutter for a clearer view beneath your boat. It’s the perfect blend of CHIRP Digital Sonar precision and Down Imaging detail.
  • CHIRP Digital Sonar: View details that other forms of sonar won’t show you. Humminbird CHIRP Digital Sonar is engineered to help you see individual fish, clearly identify bait and structure, and reach greater depths and range.
  • SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations – all at the push of a button.
  • Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth.
  • Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, daymarkers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
  • LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges, to scrollable lake lists, you’ll have all the tools you need to make every moment count.
  • Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
  • 1-Year Limited Warranty
SeriesHELIX
Display Size – Diagonal5″
Display Pixel Matrix800H x 480V
Sonar-StandardCHIRP Digital Sonar, CHIRP Down Imaging, DualBeam PLUS
Sonar-Optional50 kHz, 50/Low Airmar CHIRP
CHIRP – Frequencies Supported83/200 (75-155/130-250 kHz), 50/200 (28-75/130-250 kHz), High (130-250 kHz), Low (28-75 kHz), Med (75-155 kHz)
Sonar-Frequencies Supported50/83/200/455/800 kHz
Depth-Sonar2,500 ft (optional 50 kHz), 2,500 ft (optional Airmar CHIRP), 600 ft (standard transducer)
CHIRP – Imaging-Frequencies Supported455 kHz (420-520 kHz), 800 kHz (790-850 kHz)
Depth-Down Imaging350 ft
InterfaceKeypad Control
Memory Card SlotSingle Micro SD
Power Draw615 mA
Power Input10.82 VDC
Power Output Peak-to-Peak4000 Watts
Power Output RMS500 Watts
Screen Snap ShotIncluded
Sonar RecordingIncluded
Mount-StandardGimbal
Mount-Standard Size7.55″ W x 4.64″ H x 3.3″ D
Mount-OptionalIn-Dash Mounting Kit
Mount-Optional Size7.55″ W x 4.28″ H x 1.13″ D
Transducer IncludedXNT 9 DI T
Transducer Mount LocationTransom
GPS ChartplottingIncluded
GPS ReceiverInternal
GPS TrackplottingIncluded
Waypoints, Routes, Tracks/Points2,500, 45, 50/20,000
360 Imaging CompatibilityNo
Humminbird BasemapIncluded
LakeMaster CompatibilityYes
Minn Kota i-Pilot Link CompatibilityNo
Minn Kota Talon Shallow Water Anchor CompatibilityNo
Navionics Gold/HotMaps CompatibilityYes
Navionics Platinum + CompatibilityYes
Platinum CompatibilityYes
Radar CompatibilityNo
5-Port Ethernet Switch CompatibilityNo
AIS CompatibilityNot Supported
Heading Sensor GPS CompatibilityNo
NMEA2000Not Supported
Target Separation2.5″
Upgradable SoftwareYes
View Preset KeysYes
X-Press Menu SystemYes
Custom Digital ReadoutYes
Custom View SelectionsYes
Display Colors Grayscale16-Bit
Display TypeColor TFT
TemperatureBuilt In
Temperature AlarmYes
Temperature GraphNo
WarrantyOne-Year Warranty
UPC0082324049040





Additional information

Weight2 kg
Dimensions35 × 30 × 20 cm
