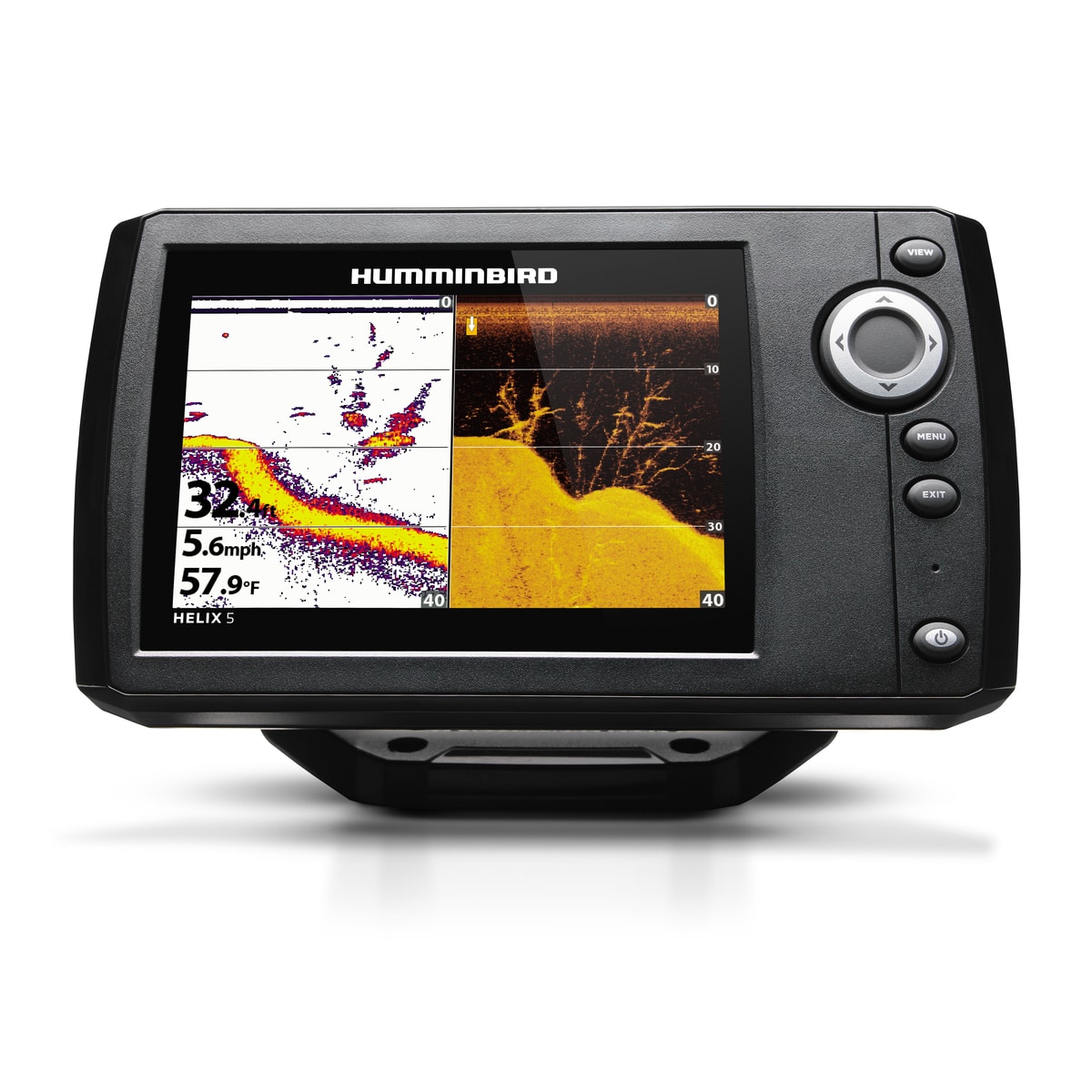

HUMMINBIRD Helix 5 DI G2 Fish Finder



If fishing is in your DNA, there’s no such thing as “too early” or “too far.” High expectations go with the territory. The HELIX 5 Series answers the call with an uncompromising, 5″ widescreen display. This HELIX 5 DI G2 model features Down Imaging, DualBeam PLUS and SwitchFire.


  • Down Imaging: Get a clear view of what’s happening below your boat with Down Imaging. As you patrol the water, you’ll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.
  • SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations – all at the push of a button.
  • Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth.
  • 1-Year Limited Warranty



Item Number  410200-1
Series  HELIX
Display Size – Diagonal  5″
Display Pixel Matrix  800H x 480V
Sonar-Standard  Down Imaging, DualBeam PLUS
Sonar-Coverage  16°, 28°, 45° & 75° @ -10dB
Sonar-Frequencies Supported  200/455/800 kHz
Depth-Sonar  600 ft (standard transducer)
Depth-Down Imaging  350 ft
Interface  Keypad Control
