Description
ULTRA HIGH-DEFINITION SCANNING SONAR

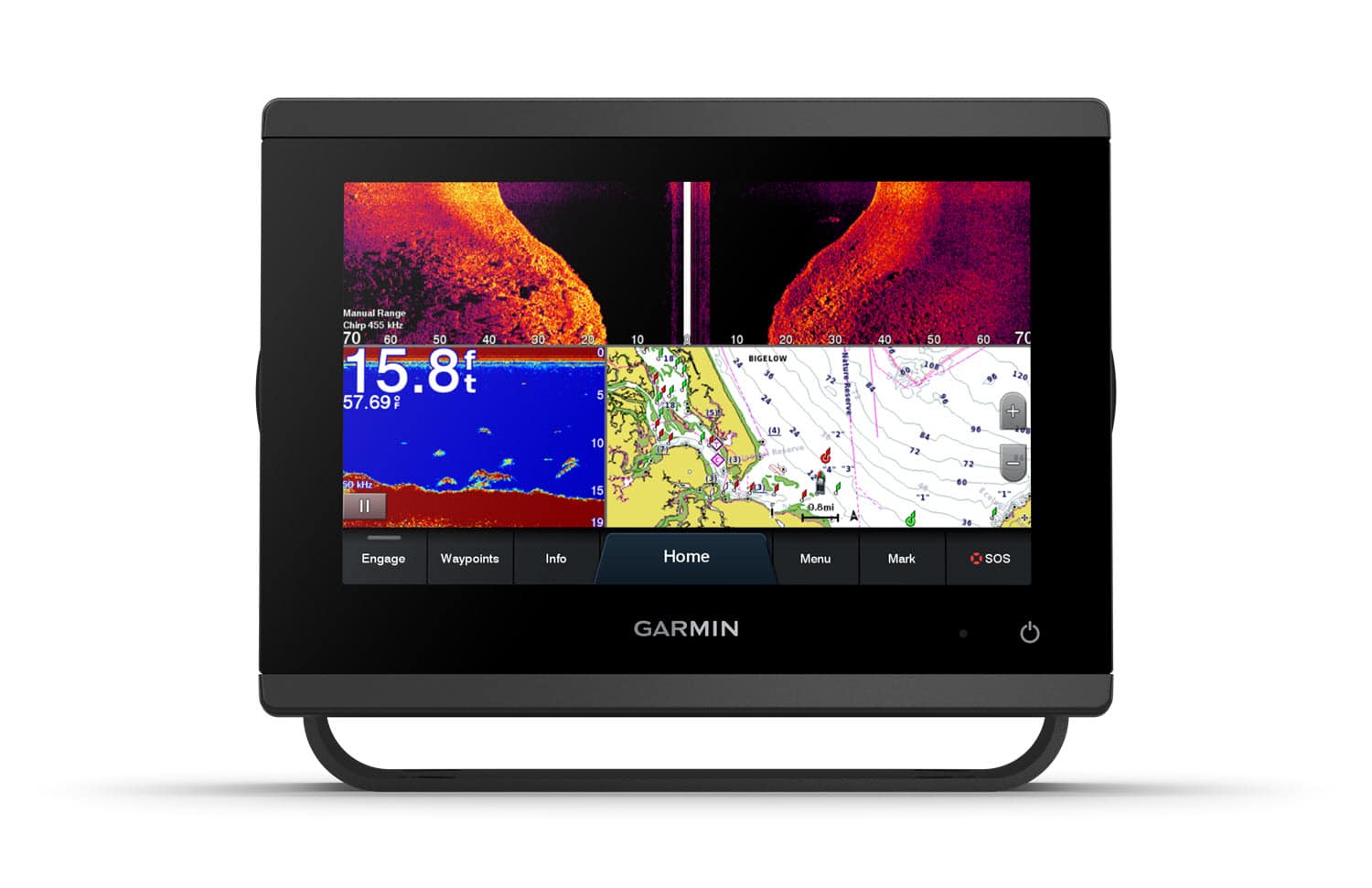

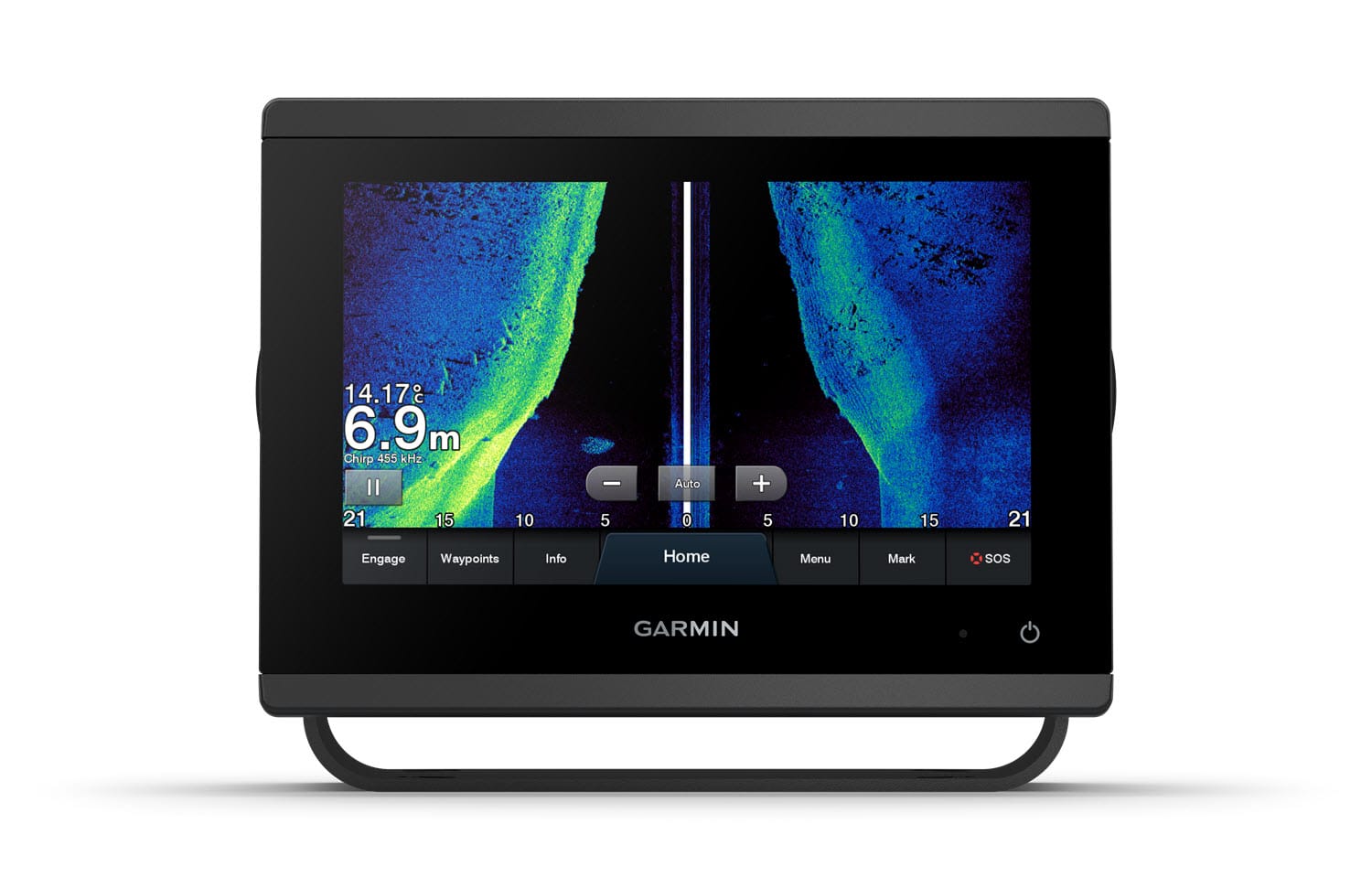

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 743xsv also supports 1 kW CHIRP traditional sonar capabilities.
PANOPTIX SONAR SUPPORT
Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
FASTER, SHARPER, SMARTER
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 7” plotter in a wider range of dash configurations.
IMPROVED DISPLAY OPTICS
New higher-resolution 7” displays offer improved sunlight readability with 60% more pixels than previous-generation 7” GPSMAP devices.
PRELOADED MAPPING
Experience unparalleled coverage and detail with preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics content and Auto Guidance technology.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
NMEA 2000 AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.
ACTIVE CAPTAIN APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more
General |
|
| PHYSICAL DIMENSIONS | 7.6″ x 5.5″ x 2.9″ (19.2 x 14.0 x 7.4 cm) |
|---|---|
| DISPLAY SIZE |
6.1″ x 3.5″; 7.0″ diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION | 1024 x 600 pixels |
| DISPLAY TYPE | WSVGA display |
| WEIGHT | 2.8 lbs (1.3 kg) |
| WATER RATING | IPX7 |
| MOUNTING OPTIONS | Bail , flush or flat |
| POLARIZED SUPPORT | Y |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 17.6 W Typical current draw at 12 Vdc: 1.1 A Max current draw at 12 Vdc: 1.5 A |
| ANTENNA | Internal or external over NMEA 2000 |
| TRANSMIT POWER | 1 kW traditional; 1 kW CHIRP |
| RECEIVER | 10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS | 1 |
Maps & Memory |
|
| PRELOADED MAPS | BlueChart® g3 (coastal maps) and LakeVü g3 (inland maps) |
|---|---|
| ACCEPTS DATA CARDS | 2 microSD™ cards (back of unit) |
| WAYPOINTS | 5,000 |
| TRACK LOG | 50,000 points; 50 saved tracks |
| ROUTES | 100 |
Outdoor Recreation |
|
| TIDE TABLES | Y |
|---|---|
Chartplotter Features |
|
| GARMIN RADAR COMPATIBLE | |
|---|---|
| GARMIN SONAR COMPATIBLE | Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) | Y |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Y |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Y |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Y |
| GSD™ BLACK BOX SONAR SUPPORT | Y |
| GCV™ BLACK BOX SONAR SUPPORT | Y |
| ACTIVECAPTAIN COMPATIBLE | Y |
| WIRELESS REMOTE COMPATIBLE | Y |
Sonar Features & Specifications |
|
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Y |
|---|---|
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Y |
| FREQUENCIES SUPPORTED | ClearVü/SideVü (260/455/800/1000/1200 kHz) |
| CLEARVÜ | Yes with CHIRP (built-in) |
| MAXIMUM DEPTH | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Y |
| WATER TEMPERATURE LOG AND GRAPH | Y |
| SONAR RECORDING | Y |
| SONAR HISTORY REWIND | Y |
Connections |
|
| NMEA 2000® COMPATIBLE | Y |
|---|---|

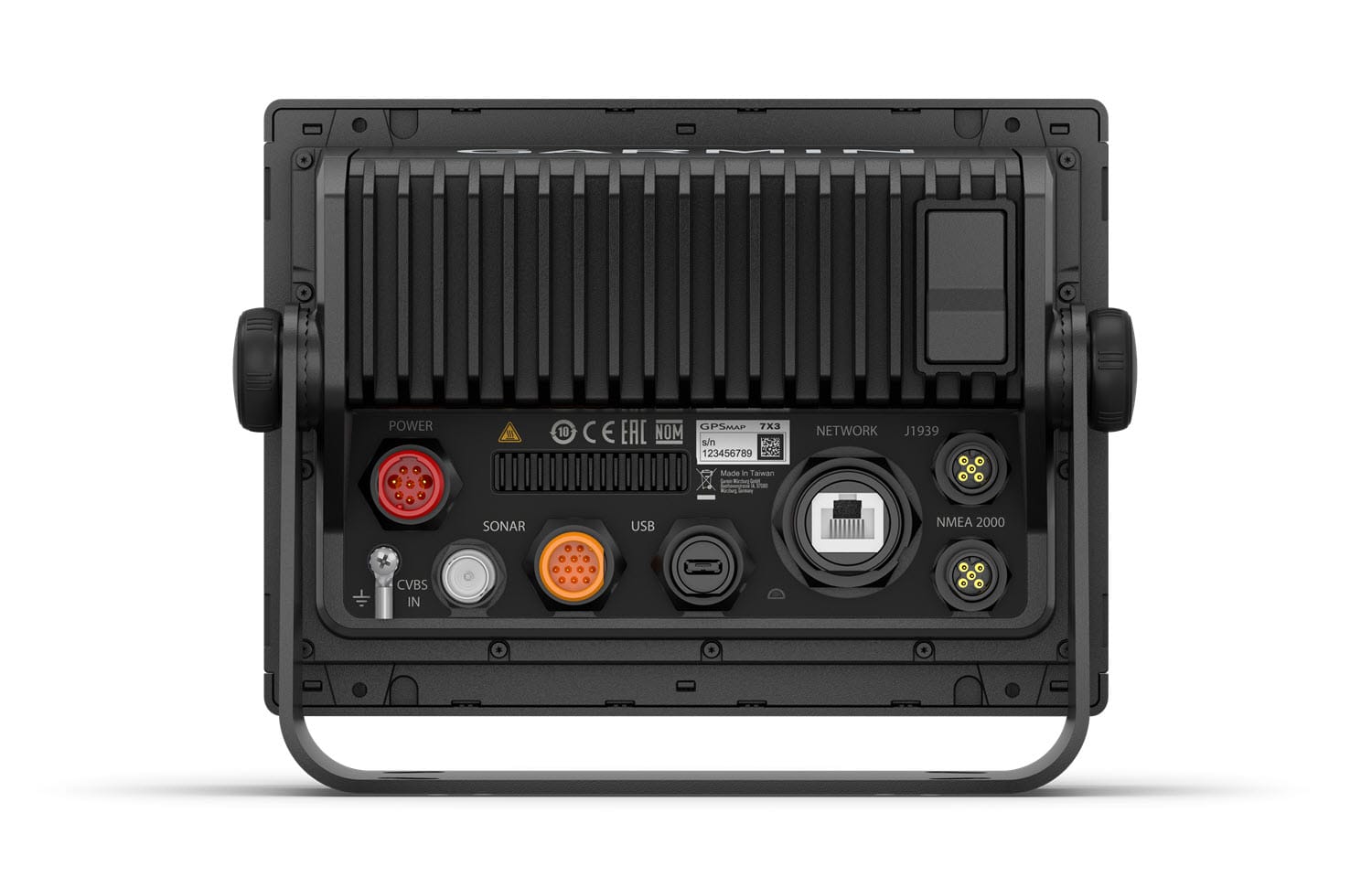

| TRANSDUCER PIN NUMBERS | 12-pin (orange) |
| NMEA 0183 INPUT PORTS | 1 (Differential) |
| NMEA 0183 OUTPUT PORTS | 1 (Differential) |
| WIRELESS CONNECTIVITY | Y |
| J1939 COMPATIBLE | Y |
Additional |
|
| ADDITIONAL |
|
|---|---|
IN THE BOX
- GPSMAP 743xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
