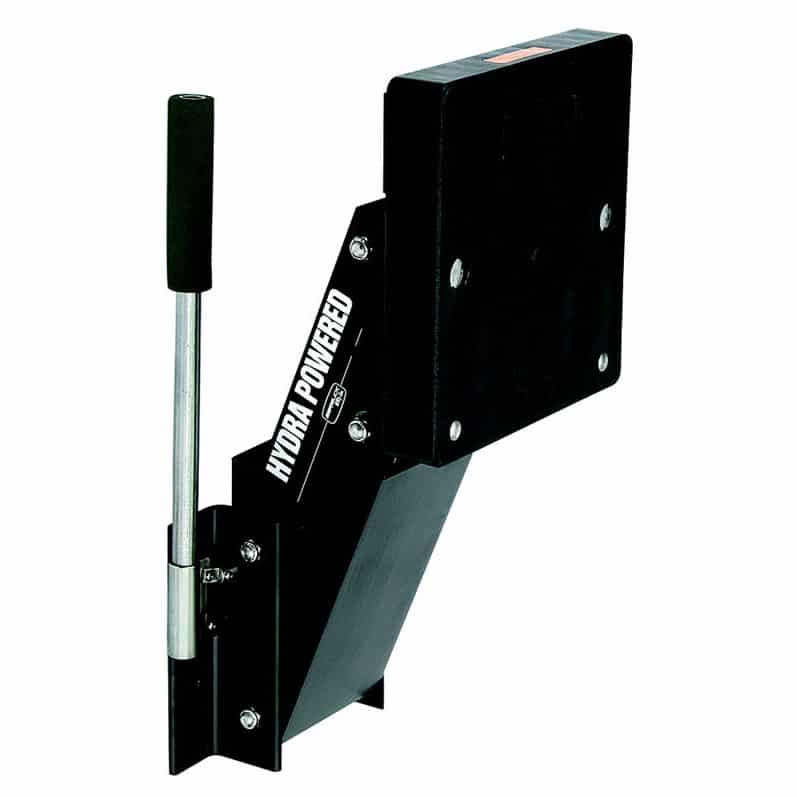

Garelick 71092 Hydraulic Lift O/B Motor Bracket


Out of stock

SKU: 71092 Category:



  • Raise and lower trolling and auxiliary motors on power boats and sailboats with ease…Watch this video to see how easy it is!
  • New generation motor bracket lifts up 4 stroke motors with short side to side movement of a lever handle (removable for stowage). This simple movement activates a marinized manual hydraulic lift pump inside the body of the bracket
  • Release valve lowers the bracket down into operating position
  • 14" of continuous vertical height adjustment provides optimum trim adjustment for any water surface or boat load condition
  • Eliminates the inconveniences of conventional spring loaded models; no electrical wiring required
  • High Tensile Alloy – Black satin Anodized aluminum body to resist corrosion
  • Aircraft stainless steel hardware and engineered bronze bushings at pivot points for increased ease of operation and durability
  • Heavy-Duty Stainless Steel Hardware for increased durability
  • 2" Thick Poly Mounting Board
  • Wide Track Design for added stability and strength
  • This innovative design offers the easiest to operate manual motor bracket ever built by Garelick EEz-In
  • 2000 lbs. tensile strength motor safety cable included


  • H.P. Rating: 7 1/2 to 25
  • Motor Weight Not to Exceed: 175 lbs.
  • Vertical Travel*: 14" (36cm)
  • Mtg. Pad: Poly Mounting Board
  • Dimensions W x H x T: 15 3/4" x 14" x 2" (40 x 35 x 4cm)
  • Mounting Bracket Dimension W x H: 11" x 9 3/4" (28 x 25cm)

*Vertical travel is based on transom angle being perpendicular to the water.
