Description
The A200 Class A is both SOLAS and Inland Waterway certified and offers superior performance through its advanced, next-gen technology. The A200 has been engineered for even the harshest marine environments, undergoing extensive testing by independent experts to ensure it is waterproof and unaffected by extreme temperatures, shock and vibration so you don’t need to worry about reliability issues impacting performance or longevity.
The A200 is easy to install and will seamlessly connect to your ECDIS and other bridge systems. The A200 delivers comprehensive AIS functionality, such as alerts, target filters, vessel information lists, real time weather and more.
With its integrated colour display, the A200 plays an important role in tracking, collision avoidance and CPA when vessels are in busy port areas. The combination of advanced performance, trusted reliability and competitive price make the A200 the best value AIS Class A in the market by far.
- IMO SOLAS Certified AIS Class A
- EU Inland Waterway Certified
- Ruggedized and impervious to extreme environments – water (IPx6 & IPx7), damp, shock, vibration, temperatures
- High performance next generation GPS
- Suitable internal or permanent external installation
- Robust ergonomic button and rotary-knob user interfaces with configurable multi-lingual menu options
- Integrated colour display with night mode
- ENC chart (C-MAP) with configurable AIS target overlay
- Silent mode – AIS transmissions are stopped – all messages continue to be received
- Integrated high performance WiFi
- Pilot plug cable and Junction Box accessory options
PHYSICAL AND ENVIRONMENTAL SPECIFICATION
Size (w x h x d) – 152 x 165 x 95mm
Weight – 1.1kg
Operating temperature – -25°C to +55°C
Storage temperature – -25°C to +70°C
Ingress protection – IPx6 and IPx7
ELECTRICAL SPECIFICATION
Supply voltage – 12V or 24V DC
Supply voltage range – 9.6V – 31.2V DC
Average current (at 12V) – 520mA
Peak current – 6A
Average power consumption (at 12V) – 6.2W
Galvanic isolation – NMEA 0183, NMEA 2000, Power supply, VHF antenna port

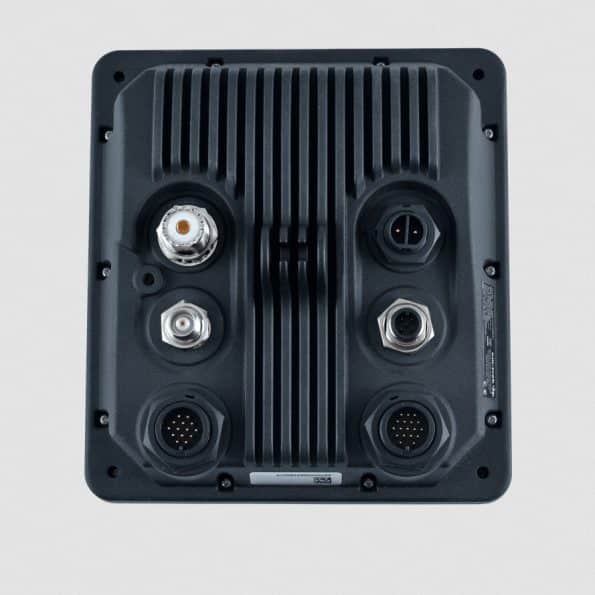

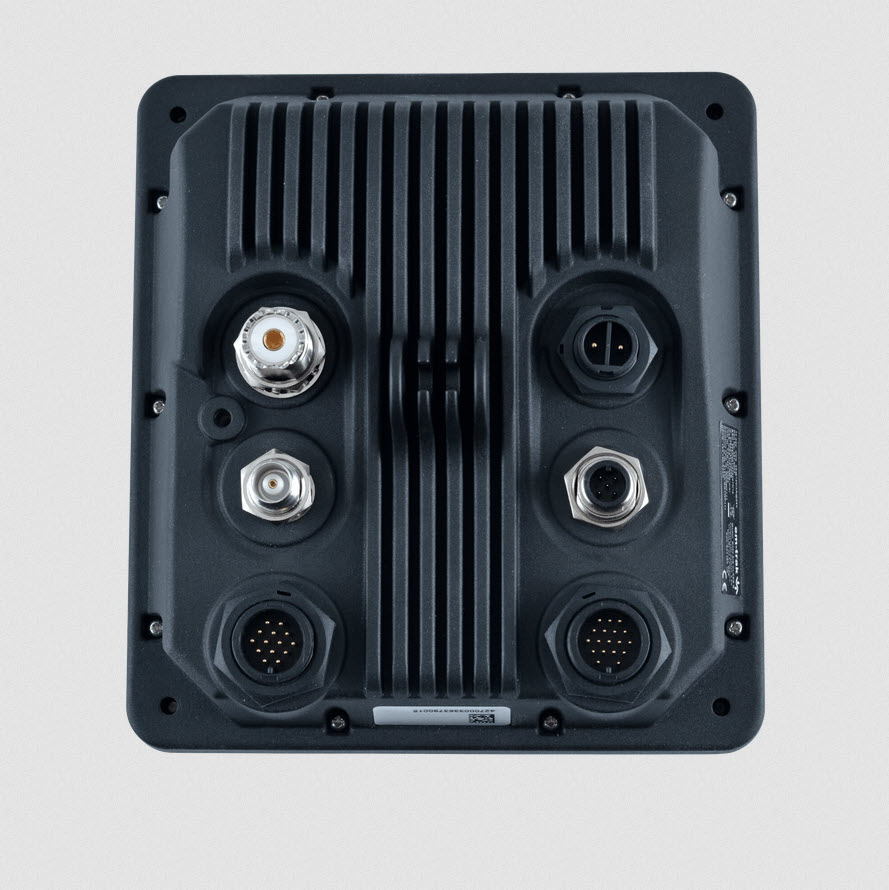

CONNECTORS
VHF antenna – SO-239
GNSS – TNC
Power – 2 way circular multipole
NMEA 0183/silent mode/blue sign – 14 way circular multipole
NMEA 0183/alarm relay – 18 way circular multipole
NMEA 2000 – 5 way Micro-C connector
DATA INTERFACES
NMEA 0183 – 3 x input ports. 3 x bi-directional ports
NMEA 2000 – NMEA 2000 Ed 3.101, LEN=1
Wi-Fi – IEEE 802.11 (a/b/g), client and access point mode supported (5 connections in access point mode)
STANDARDS COMPLIANCE
AIS standards – IEC 61993-2 Ed. 3
Product safety standards – EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
Environmental standards – IEC 60945 Ed. 4
Serial data interface standards – IEC 61162-1 Ed 5.0. IEC 61162-2 Ed 1.0
NMEA 2000 – NMEA 2000 Ed 3.101
GNSS performance standards – IEC 61108-1 Ed 2.0. IEC 61108-02 Ed 1.0
GNSS
Systems supported – GPS, GLONASS, BeiDou, Galileo
(two of any combination, three including GPS, Galileo)
Channels – 72
Internal/external antenna – External only
Time to first fix from cold start – 26s
VHF TRANSCEIVER
VDL access scheme – SOTDMA
Operating frequency – 156.025MHz – 162.025MHz
Channel bandwidth – 25kHz
Receivers/transmitters – 3 x receivers, 1 x transmitter
AIS receiver sensitivity (20% PER) – -111dBm
AIS transmitter power – 12W (+41dBm)

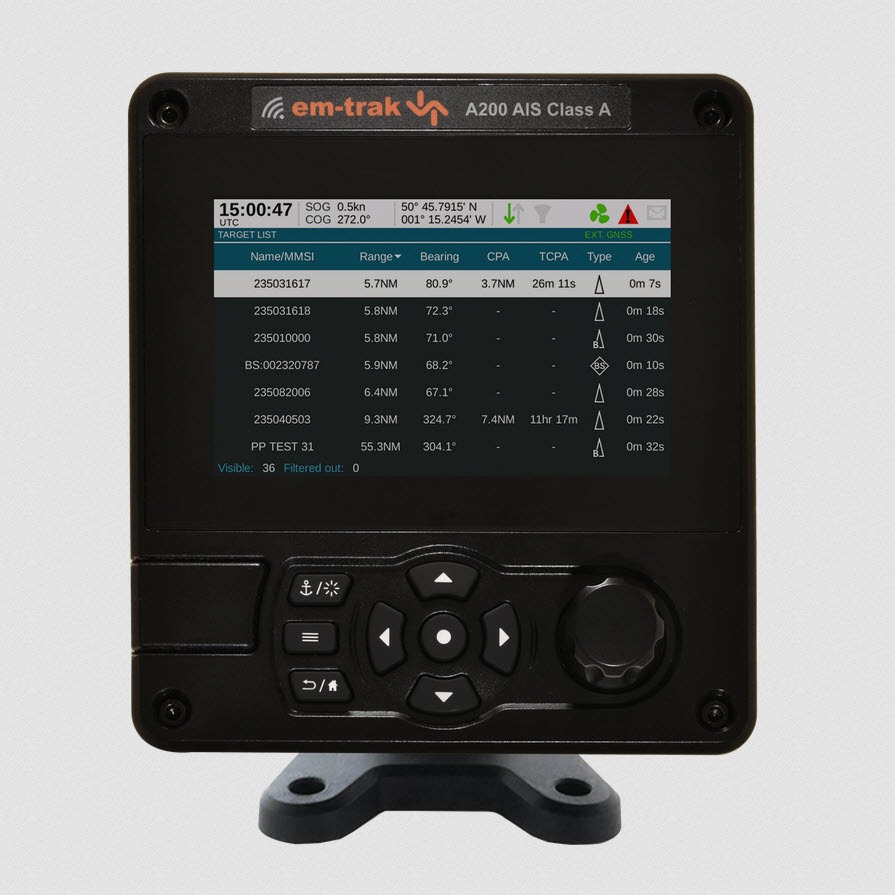

USER INTERFACE
Screen – 5″ 800 x 480 full colour LCD
Buttons – Rotary encoder for selection and entry, 4 menu keys and 4 direction keys
SD card interface – Micro SD card interface for logging and chart cards (not available from em-trak)
GNSS ANTENNA
Size – 85 x 70mm
Weight – 470g
Ingress protection – IPx6 and IPx7
Mounting – 1 inch 14 TPI pole mount required
GNSS systems supported – GPS, GLONASS, Galileo, BeiDou
