Description

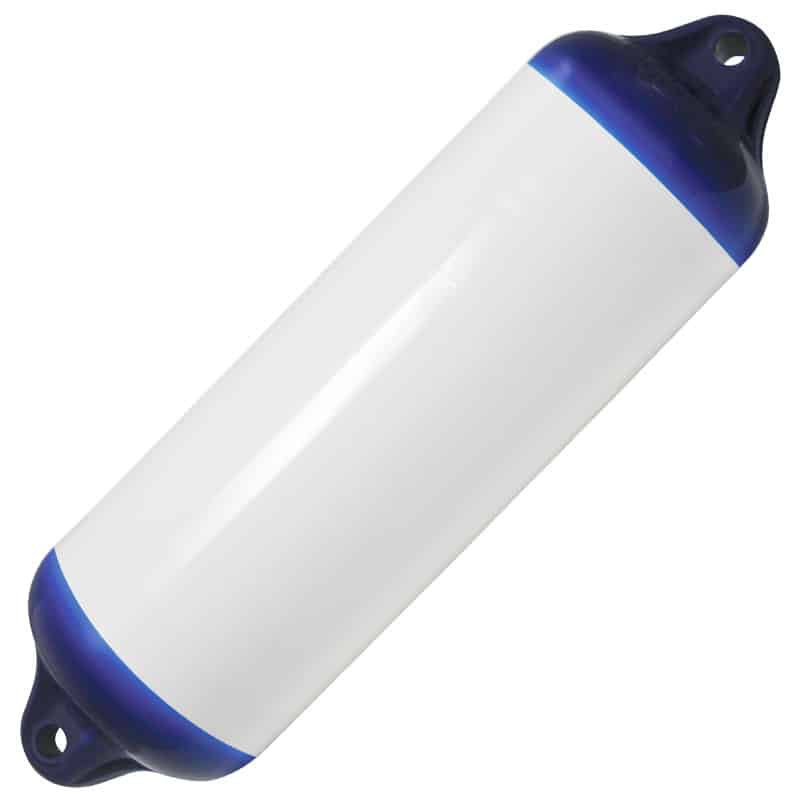

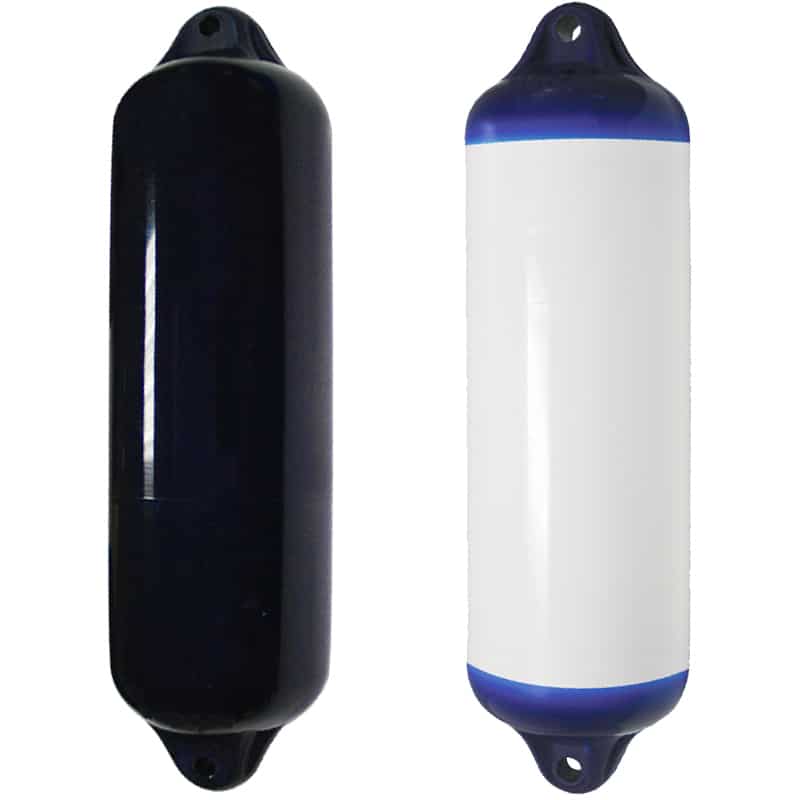

The classic series of OCEAN Boat Fenders with superior quality!
Made of Plastisol PVC with rotational moulding process, they are one-piece made (no parts are attached together to form the finalized fender) with consistent wall thickness.
H Series Fenders are heavy-duty ones in which the rib-reinforced rock solid rope holds in the two sides of the fender are made in such a way to provide extra strength and durability.
A versatile fender for the most adverse conditions. Suitable for any use and boats of any kind from 10-50 ft.
Features:

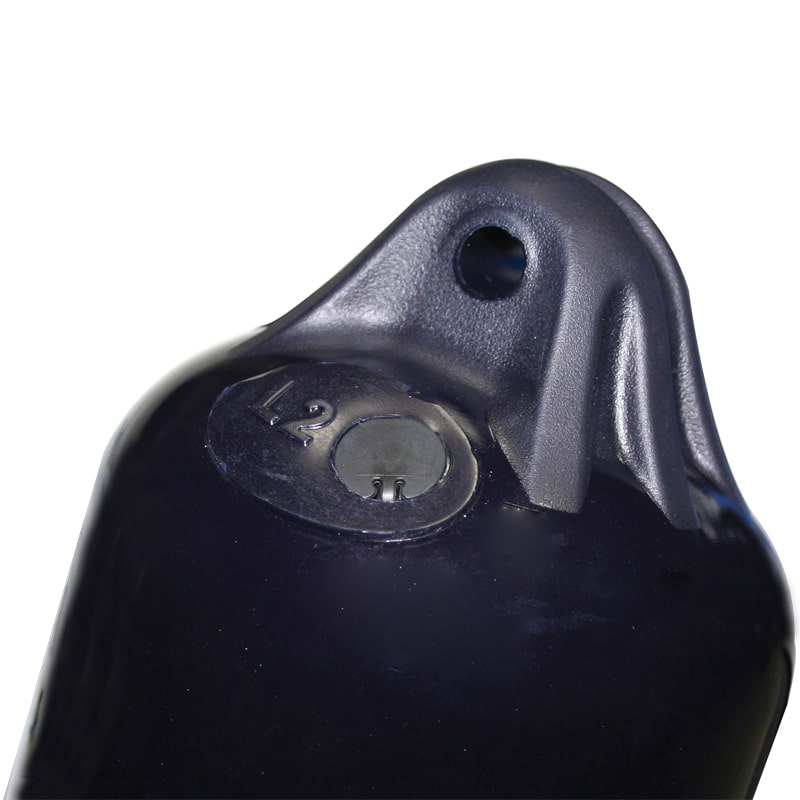

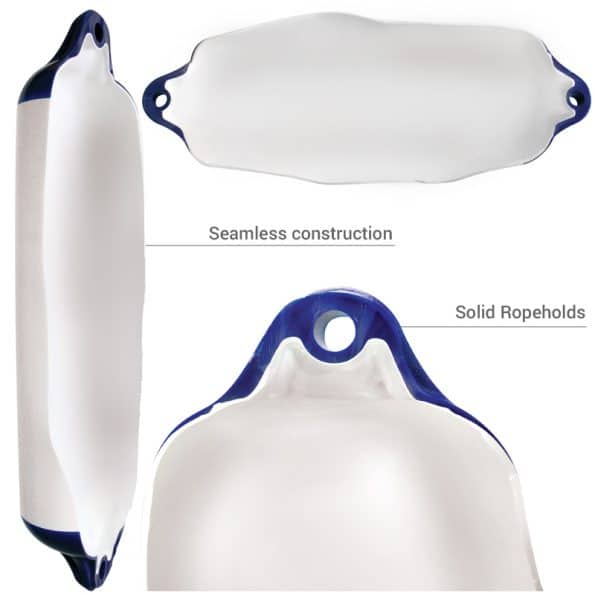

- Rock solid ropehold with reinforced material
- Simple valve for convenient inflation
- Seamless construction
- UV resistance
- Unique glossy finish
Inflation Pressure: 2.1 lbs / 0.15 bar at 68°F / 20°C
Material:Â Plastisol PVC
Production Process:Â Single rotational moulding process

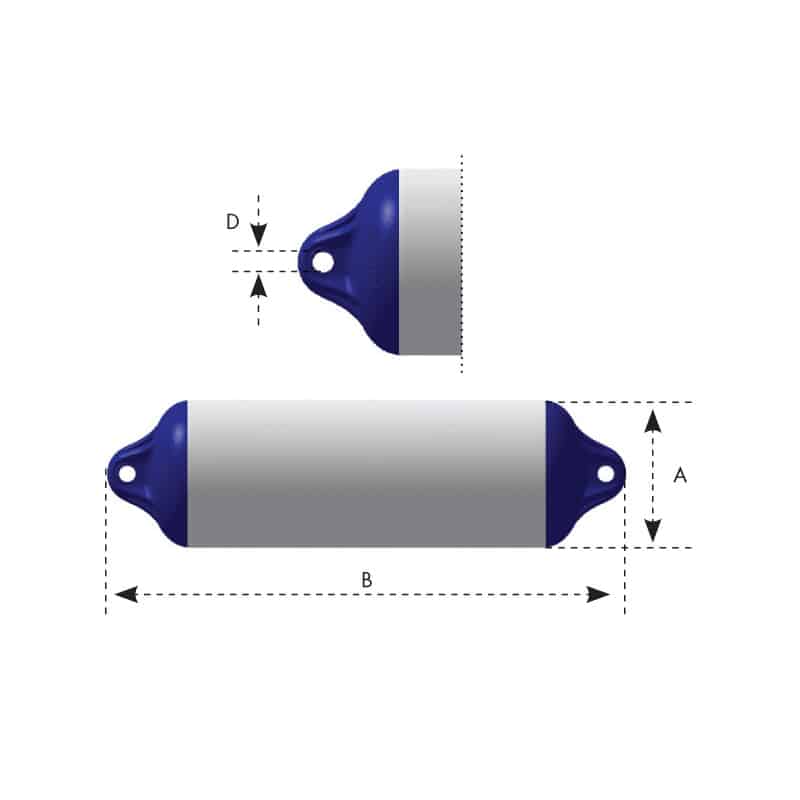

| Code | Model | Color | Dimensions A (mm) | Dimensions B (mm) | Eye-Diameter D | Volume per product (lt) | Weight (kg) | Boat Size (ft/m) | Fender Cover Code |
|---|---|---|---|---|---|---|---|---|---|
| 71984 | H2 |
|
140 | 500 | 13 | 6,3 | 0,70 | 10-20/3-6 | – |
| 72453 | H2 |
|
140 | 500 | 13 | 6,3 | 0,70 | 10-20/3-6 | – |
| 75857 | H2 |
|
140 | 500 | 13 | 6,3 | 0,70 | 10-20/3-6 | – |
| 71985 | H3 |
|
160 | 560 | 18 | 9,1 | 1,20 | 15-30/5-9 | 49932 |
| 72148 | H3 |
|
160 | 560 | 18 | 9,1 | 1,20 | 15-30/5-9 | 49932 |
| 73202 | H3 |
|
160 | 560 | 18 | 9,1 | 1,20 | 15-30/5-9 | 49932 |
| 71986 | H4 |
|
190 | 640 | 18 | 14,5 | 1,75 | 20-35/6-11 | 72631 |
| 719861 | H4 |
|
190 | 640 | 18 | 14,5 | 1,75 | 20-35/6-11 | 72631 |
| 72454 | H4 |
|
190 | 640 | 18 | 14,5 | 1,75 | 20-35/6-11 | 72631 |
| 71987 | H5 |
|
220 | 640 | 22 | 18,6 | 2 | 25-40/8-12 | 49351 |
| 719871 | H5 |
|
220 | 640 | 22 | 18,6 | 2 | 25-40/8-12 | 49351 |
| 71988 | H6 |
|
220 | 760 | 22 | 23,2 | 2,30 | 30-45/9-14 | 49352 |
| 75858 | H6 |
|
220 | 760 | 22 | 23,2 | 2,30 | 30-45/9-14 | 49352 |
| 71989 | H7 |
|
280 | 760 | 24 | 35,1 | 3 | 35-50/11-15 | 49354 |
| 72455 | H7 |
|
280 | 760 | 24 | 35,1 | 3 | 35-50/11-15 | 49354 |
| 75859 | H7 |
|
280 | 760 | 24 | 35,1 | 3 | 35-50/11-15 | 49354 |
| 71990 | H8 |
|
220 | 1040 | 22 | 33,8 | 3 | 40-55/12-17 | 49353 |
| 72139 | H8 |
|
220 | 1040 | 22 | 33,8 | 3 | 40-55/12-17 | 49353 |
| 75860 | H8 |
|
220 | 1040 | 22 | 33,8 | 3 | 40-55/12-17 | 49353 |
| 71991 | H9 |
|
280 | 1090 | 24 | 55,4 | 4 | 45-60/14-18 | 49355 |
| 72456 | H9 |
|
280 | 1090 | 24 | 55,4 | 4 | 45-60/14-18 | 49355 |
| 75861 | H9 |
|
280 | 1090 | 24 | 55,4 | 4 | 45-60/14-18 | 49355 |
| 71992 | H10 |
|
380 | 1470 | 45 | 127 | 7,2 | Over 65/Over 20 | – |
