Description

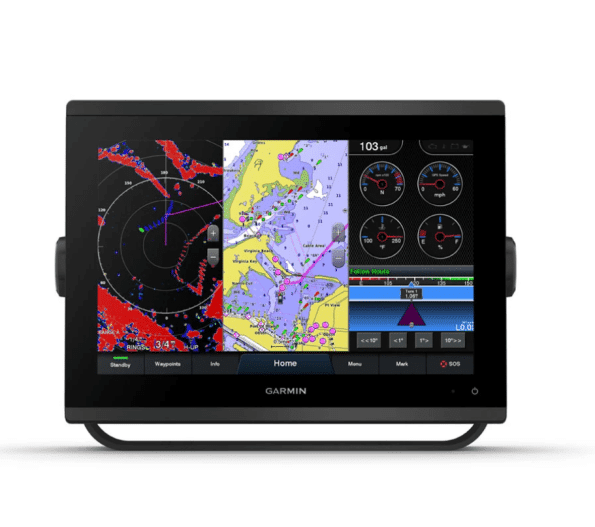

Garmin GPSMAP 1243 with its sleek design, powerful processing and upgraded IPS display, this advanced 12” chartplotter integrates seamlessly into your Garmin marine system.
In The Box:
- GPSMAP 1243 chartplotter
- microSD card preinstalled Navionics
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
| General | ||
| DIMENSION | 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm) | |
| WEIGHT | 6.6 lbs (3.0 kg) | |
| WATERPROOF | IPX7 | |
| TOUCHSCREEN | Yes | |
| DISPLAY TYPE | WXGA | |
| DISPLAY SIZE | 10.3″ x 6.4″; 12.1″ diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) | |
| DISPLAY RESOLUTION | 1280 x 800 pixels | |
| MOUNTING OPTIONS | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) | |
| INPUT | Touchscreen | |
Maps & Memory |
||
| ACCEPTS DATA CARDS | 2 microSD cards (back of unit) | |
| WAYPOINTS | 5000 | |
| TRACK POINTS | 50,000 | |
| TRACKS | 50 saved tracks | |
| NAVIGATION ROUTES | 100 | |
Sensors |
||
| GPS | YES | |
| GLONASS | YES | |
| GALILEO | YES | |
| HAS BUILT-IN RECEIVER | YES | |
| RECEIVER | 10 Hz | |
| NMEA 2000 COMPATIBLE | YES | |
| NMEA 0183 COMPATIBLE | YES | |
| SUPPORTS WAAS | YES | |
Built-in Maps |
||
| BUILT-IN AUTO GUIDANCE | YES | |
| BLUECHART (COASTAL) | YES | |
| LAKEVU (INLAND) | YES | |
| TIDE TABLES | YES | |
Optional Map Support |
||
| BLUECHART G3 | YES | |
| BLUECHART G3 VISION | YES | |
| LAKEVÜ G3 | YES | |
| LAKEVÜ G3 ULTRA | YES | |
| GARMIN NAVIONICS+™ | YES | |
| GARMIN NAVIONICS VISION+™ | YES | |
| TOPO 100K | YES | |
| STANDARD MAPPING | YES | |
| GARMIN QUICKDRAW CONTOURS | YES | |
| RASTER CHART SUPPORT | YES | |
Chartplotter Features |
||
| SMART MODE COMPATIBLE | YES | |
| AIS | Compatible | |
| DSC | Compatible | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | YES | |
| GSD BLACK BOX SONAR SUPPORT | YES | |
| GCV BLACK BOX SONAR SUPPORT | YES | |
| ACTIVECAPTAIN® COMPATIBLE | YES | |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | YES | |
| WIRELESS REMOTE COMPATIBLE | YES | |
| SAILING FEATURES | YES | |
| SPOKEN AUDIO ALERTS | YES | |
| ONEHELM SUPPORT | YES | |
Electrical Features |
||
| POWER INPUT | 10 to 32 Vdc | |
| TYPICAL CURRENT DRAW AT 12 VDC | 1.67 A | |
| MAXIMUM CURRENT DRAW AT 12 VDC | 2.15 A | |
| MAXIMUM POWER USAGE AT 10 VDC | 26.5W | |
Sonar Features |
||
| DISPLAYS SONAR | Yes, With Optional equipment | |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | YES (with GCV™ black box, sold separately) | |
| CLEARVÜ | YES (with GCV™ black box, sold separately) | |
| SIDEVÜ | YES (with GCV™ black box, sold separately) | |
| PANOPTIX™ SONAR | Yes, With Optional equipment | |
| LIVESCOPE | Yes, With Optional equipment | |
Connections |
||
| NMEA 2000 PORTS | 1 | |
| CONNECTIONS NMEA0183 INPUT PORTS | 1 | |
| NMEA 0183 INPUT (TX) PORTS | 1 | |
| VIDEO INPUT PORTS | 1 (BNC composite) | |
| VIDEO OUTPUT PORTS | 1 HDMI | |
| J1939 PORTS | 1 | |
| GARMIN MARINE NETWORK PORTS | 2 | |
