This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope scanning sonar system, which lets you see all around your boat in real time.

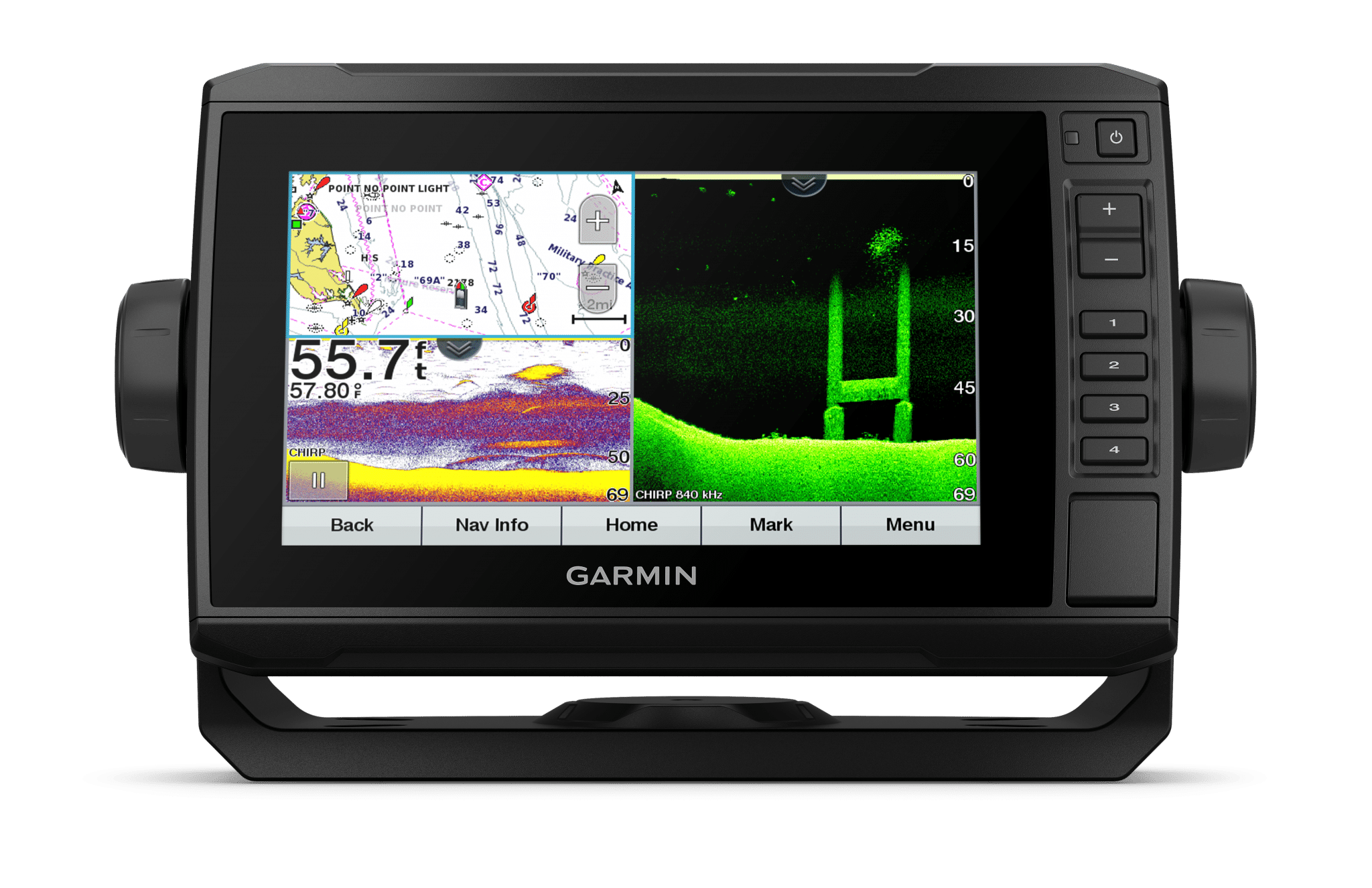

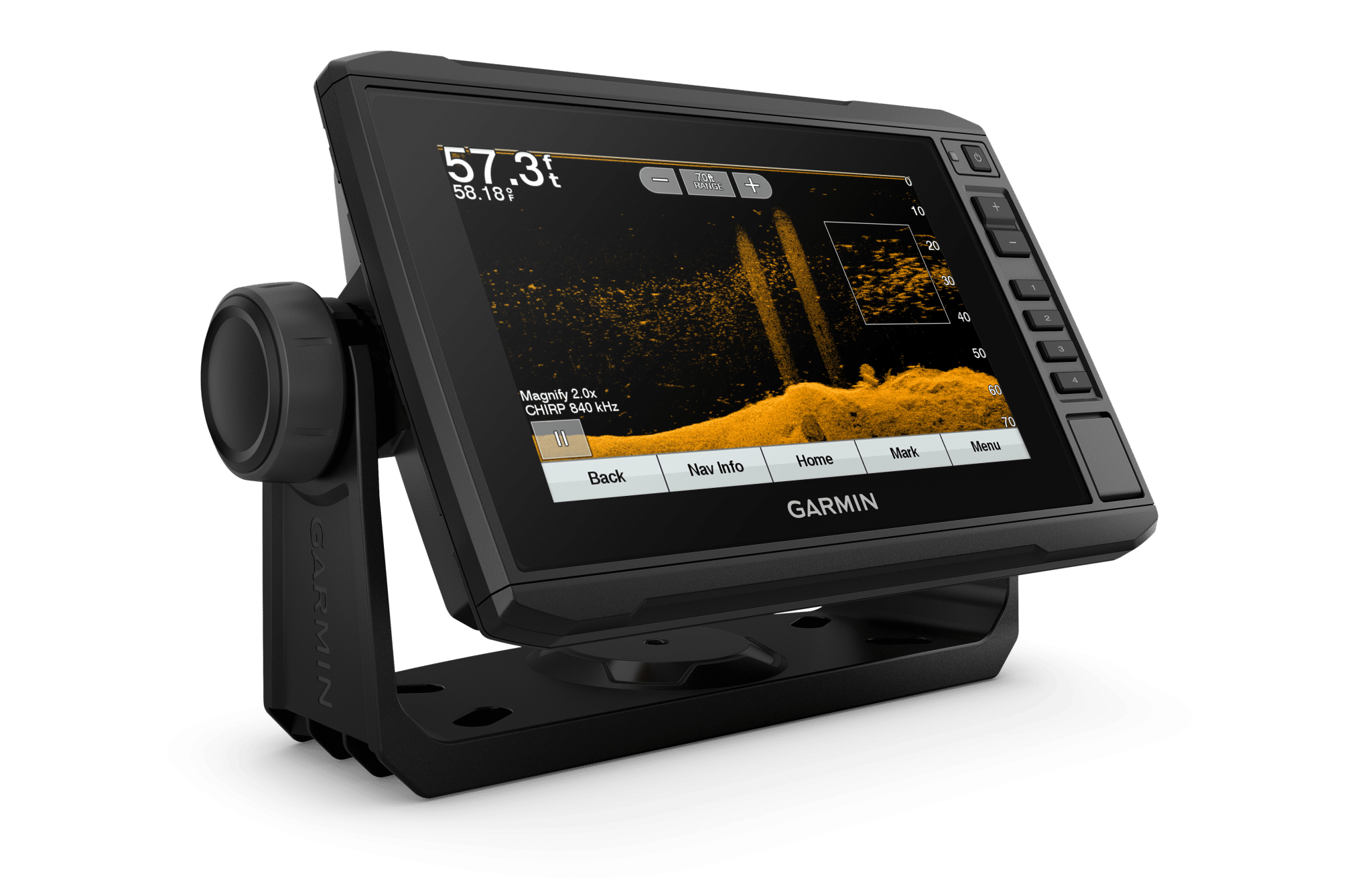

This chartplotter comes with a GT24transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
Experience unparalleled coverage and detail with preloaded BlueChart g3coastal charts featuring integrated Navionics data. Charts cover the coastal U.S., including the East and West coasts, Gulf of Mexico and the U.S. and Canadian sides of the Great Lakes.
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultradevices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).
NMEA 2000 AND NMEA 0183 NETWORKS
Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.
FORCE TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.
|Physical dimensions||9.8″ x 5.5″ x 2.0″ (25 x 13.9 x 5.1 cm)|
|Mounting options||Bail or flush|
|Antenna||Internal or external over NMEA 2000|
|Display size||6.1″ x 3.4″; 7.0″ diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)|
|Display resolution||400 x 800 pixels|
|Display type||WVGA display|
|Accepts data cards||1 microSD card; 32 GB maximum size|
|Track log||50,000 points; 50 saved tracks|
|Preloaded maps||BlueChart g3 (coastal maps)|
2,300 ft @ 77 kHz, freshwater
1,100 ft @ 77 kHz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
|Wireless remote compatible||No|
|Dual-frequency (50/200 kHz) sonar capable||Yes|
|Transmit power||500 W (RMS) / 4,000 W (peak to peak)|
|SiriusXM Weather & Radio compatible||No|
|Water temperature log and graph||Yes|
|Supports FUSION-Link compatible radios||No|
|NMEA 0183 output ports||1|
|NMEA 2000 compatible||Yes|
|Bottom lock (shows return from the bottom up)||Yes|
|CHIRP sonar technology||Yes (Built-in)|
|NMEA 0183 compatible||Yes|
|Transducer pin numbers||8|
|Supports AIS (tracks target ships position)||Yes|
|GSD Black Box sonar support||No|
|GCV Black Box sonar support||Yes|
|Sonar history rewind||Yes|
|Video input ports||None|
|GRID (Garmin Remote Input Device) compatible||No|
|Garmin Radar compatible||No|
|Supports DSC (displays position data from DSC-capable VHF radio)||Yes|
|Garmin Marine Network ports||1 Panoptix port|
|Garmin Sonar compatible||Yes|
|NMEA 0183 input ports||1|
|Wireless mouse compatible||No|
|Dual-beam (77/200 kHz) sonar capable||Yes|
|Garmin SmartMode compatible (customizable monitor presets)||No|
|Video output ports||None|
|Garmin Meteor Audio System compatible||No|
|ClearVü||Yes with CHIRP (built-in)|
